Operation

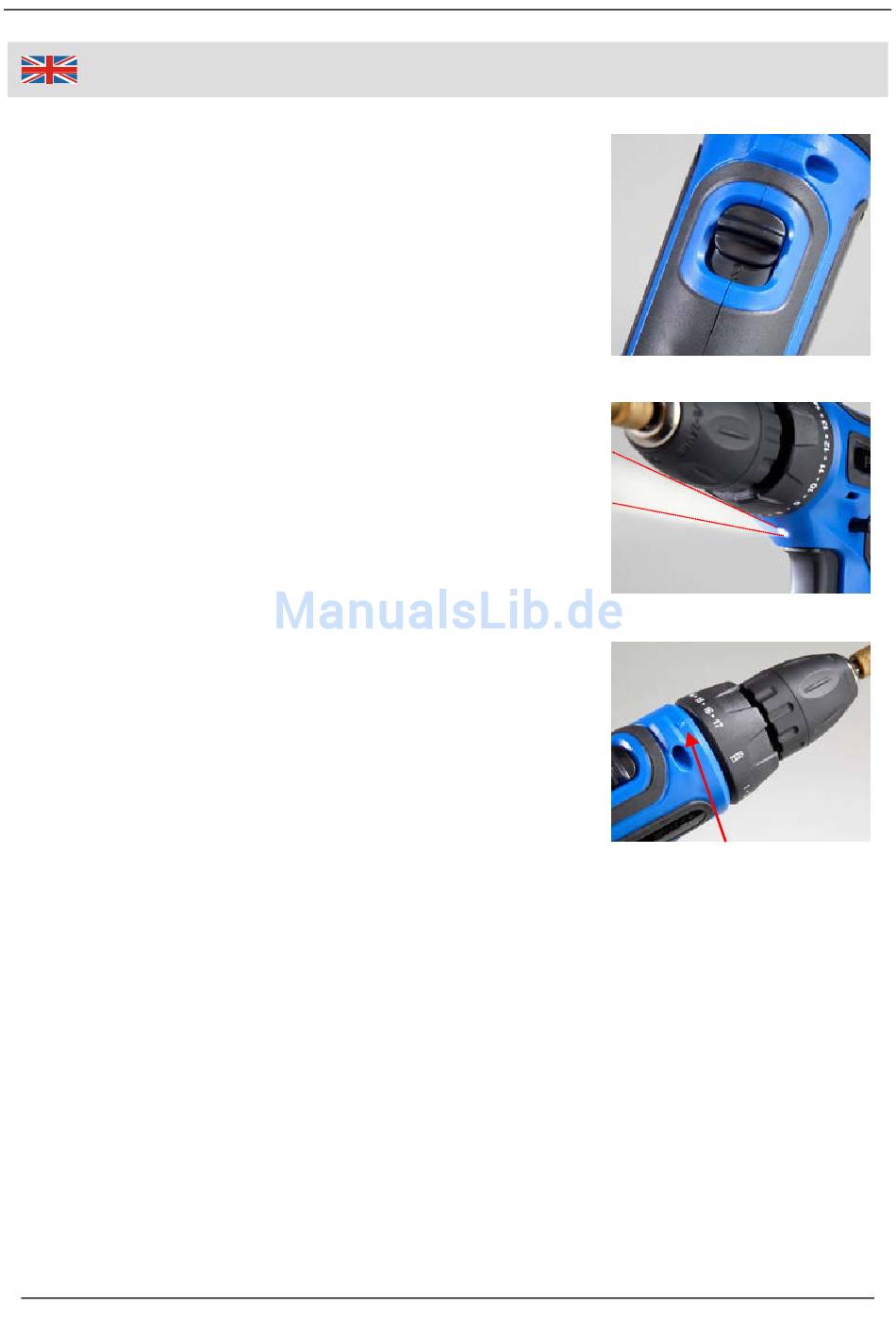

Selecting the Gear

This screwdriver is equipped with a two gear
transmission. With the speed selector (1) on top of
the screwdriver you can change the gears.
Use the setting 2 for high speed for drilling, and the
lower setting 1 for driving screws. In the first gear
the torque of the screwdriver is 25 Nm and in the
second gear 12 Nm.

Working LED

When pressing the ON/OFF trigger the work LED
turns on automatically in order to light up the
working area.

Adjusting the Torque

You can control the maximum torque applied to the
drill bit with the torque setting ring (2). Attention! The
torque setting ring should only be operated when
the screwdriver is not running; otherwise the screw-
driver may be damaged.
To set the drill to the lowest available torque setting,
twist the torque control ring until the small arrow
marking on the drill-housing points to the "1" printed
Marking
on the torque control ring. In this position the torque
clutch will slip with light drilling resistance.
The higher the number the arrow points to on the torque control ring, the larger
the maximum torque that can be applied before the torque clutch will slip.
To set the screwdriver to maximum available torque twist the torque control
ring until the arrow points to the drill symbol. In this position there is no slip in
the torque clutch.
Select a lower torque for inserting or removing of screws to avoid damage the
work-piece. For drilling select a higher torque setting. First do a test on an item
which is not your final work-piece and adjust the desired torque accordingly
before you start the actual work.
13
