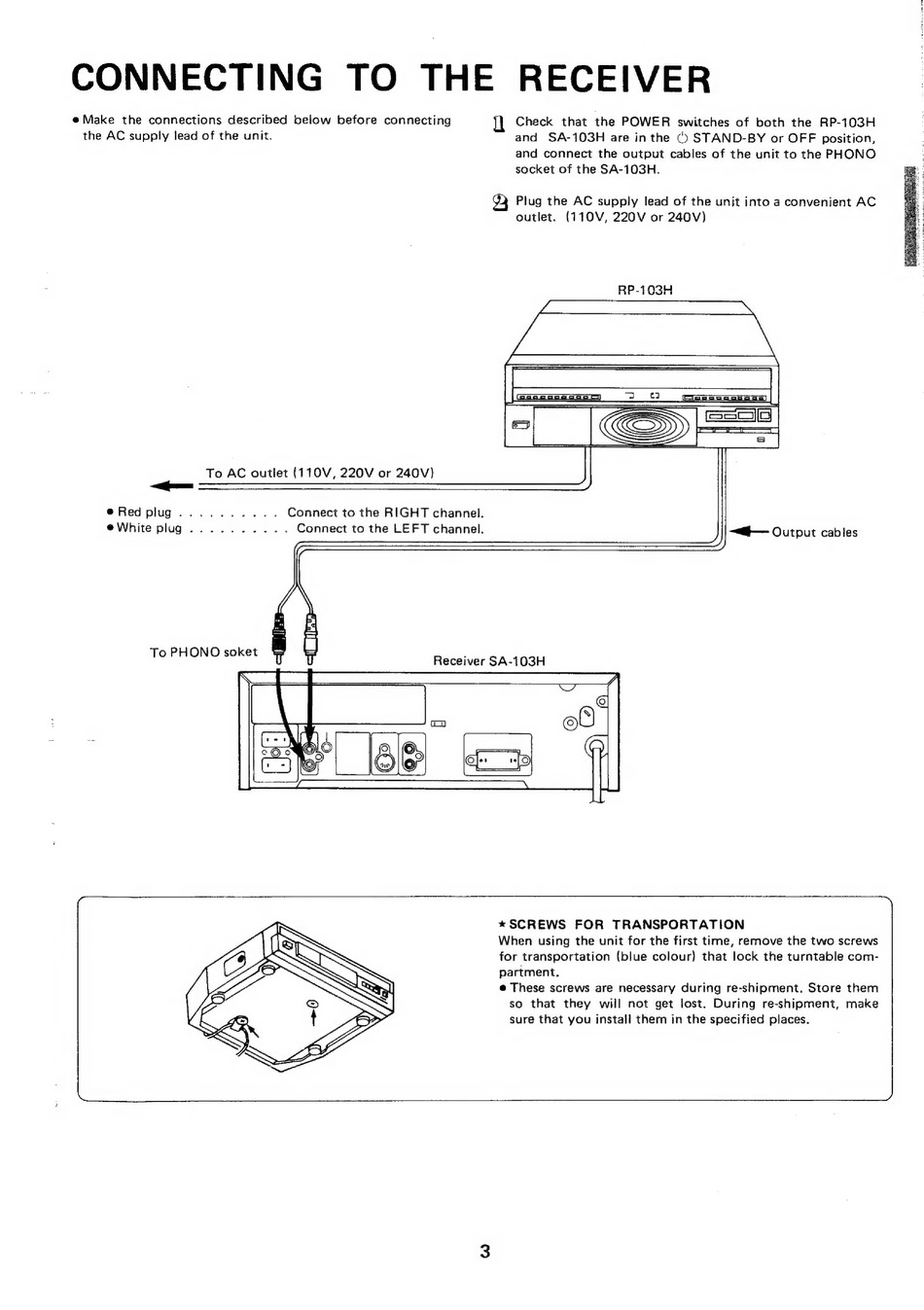

CONNECTING
TO THE
RECEIVER
e Make
the connections
described
below
before
connecting
in Check
that the POWER
switches
of both the
RP-103H
the AC supply lead of the unit.
To AC outlet (110V, 220V or 240V)
and
SA-103H are in the © STAND-BY or OFF position,
and connect the output cables of the unit to the PHONO
socket of the SA-103H.
62) Plug the AC supply lead of the unit into a convenient AC
outlet.
(110V, 220V or 240V)
RP-103H
@Redplug..........
e@White plug ..........
To PHONO soket
Connect to the RIGHT channel.
Receiver SA-103H
* SCREWS
FOR
TRANSPORTATION
When
using the unit for the first time, remove the two screws
for transportation (blue colour) that lock the turntable com-
partment.
e@ These screws are necessary during re-shipment. Store them
so that
they
will not get fost. During
re-shipment,
make
sure that you install them in the specified places.
