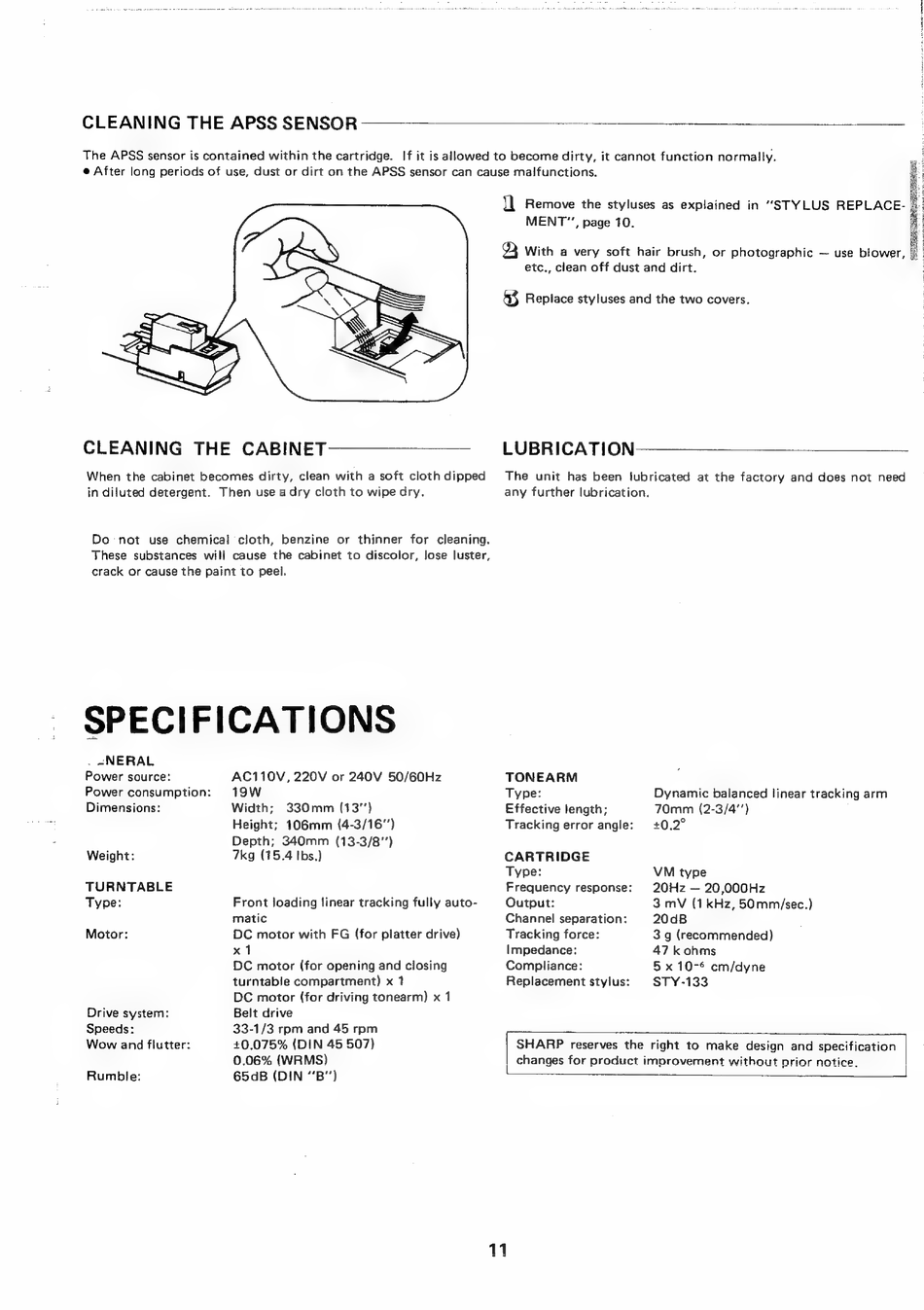

CLEANING THE APSS SENSOR
The APSS sensor is contained within the cartridge.
If it is allowed to become dirty, it cannot function normally.
e After lang periods of use, dust or dirt on the APSS sensor can cause malfunctions.
ny Remove
the styluses as explained
in "STYLUS
REPLACE-
MENT", page 10.
<2) With
a very soft hair brush, or photographic
— use blower,
etc., clean off dust and dirt.
3 Repiace styluses and the two covers.
CLEANING
THE
CABINET
LUBRICATION
When the cabinet becomes dirty, clean with a soft cloth dipped
The
unit has been
lubricated
at the factory and does not need
in diluted detergent.
Then use a dry cloth to wipe dry.
any further lubrication.
Do
not
use
chemical
'cloth, benzine
or thinner
for cleaning.
These
substances
will cause
the cabinet to discolor, lose luster,
crack or cause the paint to peel.
SPECIFICATIONS
. -«NERAL
Power source:
AC110V, 220V or 240V 50/60Hz
TONEARM
Power consumption:
19W
Type:
Dynamic balanced linear tracking arm
Dimensions:
Width;
330mm (13")
Effective length;
70mm (2-3/4'')
Height; 106mm (4-3/16")
Tracking error angle:
+0.2°
Depth; 340mm
(13-3/8")
Weight:
7kg (15.4 tbs.)
CARTRIDGE
Type:
VM type
TURNTABLE
Frequency response:
20Hz — 20,000Hz
Type:
Front loading linear tracking fully auto-
Output:
3 mV (1 kHz, 50mm/sec.)
matic
Channel separation:
20dB
Motor:
DC motor with FG (for platter drive)
Tracking force:
3 g (recommended)
x1
Impedance:
47 k ohms
DC motor (for opening and closing
Compliance:
5 x 10-* cm/dyne
turntable compartment)
x 1
Replacement stylus:
STY-133
DC motor (for driving tonearm) x 1
Drive system:
Belt drive
Speeds:
33-1/3 rpm and 45 rpm
Wow and flutter:
+0.075% (DIN 45 507)
SHARP
reserves the right to make design and specification
0.06% (WRMS)
changes for product improvement without prior notice.
Rumble:
65dB (DIN "B")
|
11
