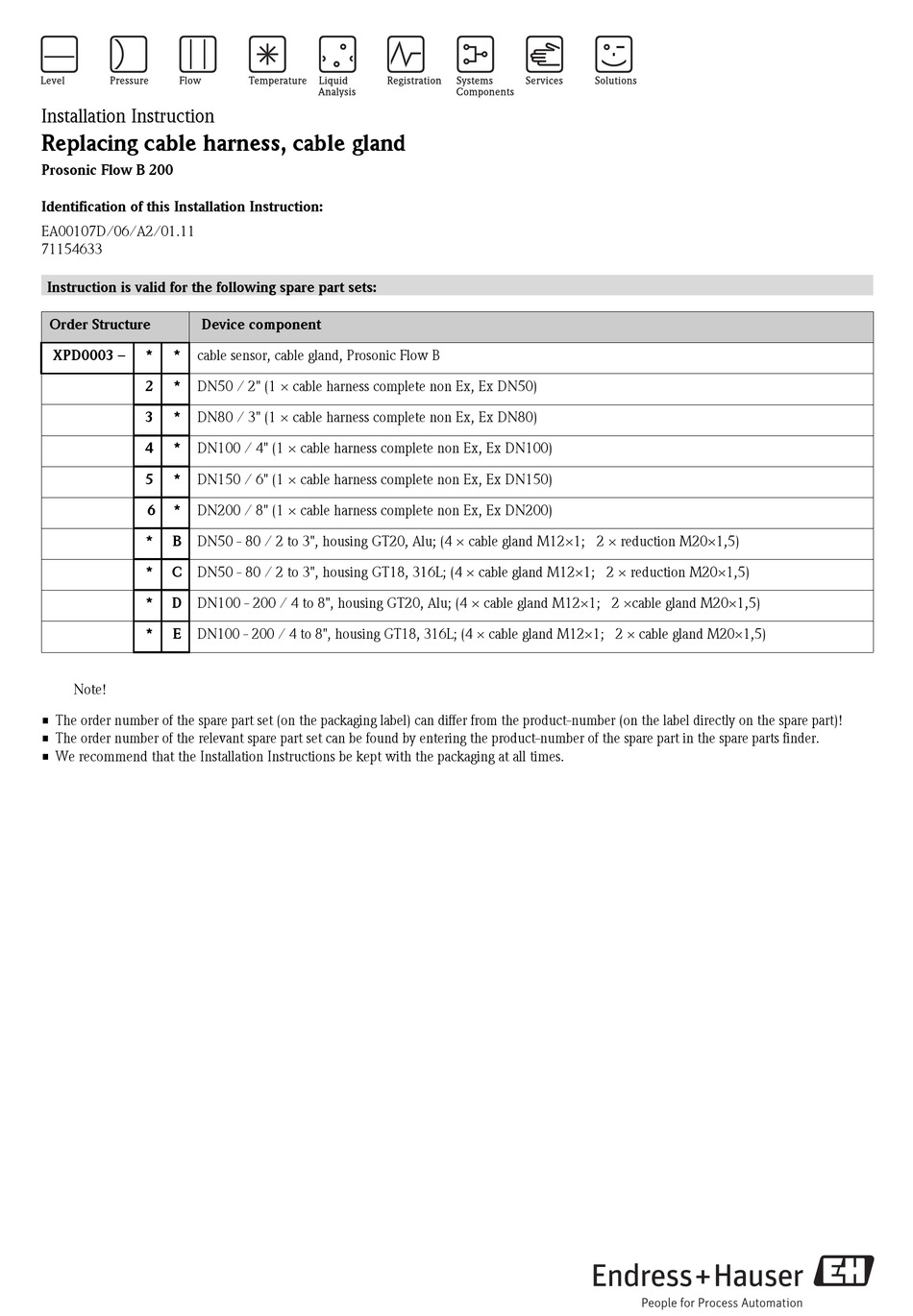

Installation Instruction
Replacing cable harness, cable gland
Prosonic Flow B 200
Identification of this Installation Instruction:
EA00107D/06/A2/01.11
71154633
Instruction is valid for the following spare part sets:
Order Structure
Device component
XPD0003 –
*
*
cable sensor, cable gland, Prosonic Flow B
2
*
DN50 / 2" (1 × cable harness complete non Ex, Ex DN50)
3
*
DN80 / 3" (1 × cable harness complete non Ex, Ex DN80)
4
*
DN100 / 4" (1 × cable harness complete non Ex, Ex DN100)
5
*
DN150 / 6" (1 × cable harness complete non Ex, Ex DN150)
6
*
DN200 / 8" (1 × cable harness complete non Ex, Ex DN200)
*
B
DN50 - 80 / 2 to 3", housing GT20, Alu; (4 × cable gland M12×1; 2 × reduction M20×1,5)
*
C DN50 - 80 / 2 to 3", housing GT18, 316L; (4 × cable gland M12×1; 2 × reduction M20×1,5)
*
D DN100 - 200 / 4 to 8", housing GT20, Alu; (4 × cable gland M12×1; 2 ×cable gland M20×1,5)
*
E
DN100 - 200 / 4 to 8", housing GT18, 316L; (4 × cable gland M12×1; 2 × cable gland M20×1,5)
Note!
• The order number of the spare part set (on the packaging label) can differ from the product-number (on the label directly on the spare part)!
• The order number of the relevant spare part set can be found by entering the product-number of the spare part in the spare parts finder.
• We recommend that the Installation Instructions be kept with the packaging at all times.
