STEP 2A Attach Wall Plate to Wall Wood Stud Option
CAUTION: Avoid potential personal injury or property damage!
!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609 mm)
● Stud center must be verified

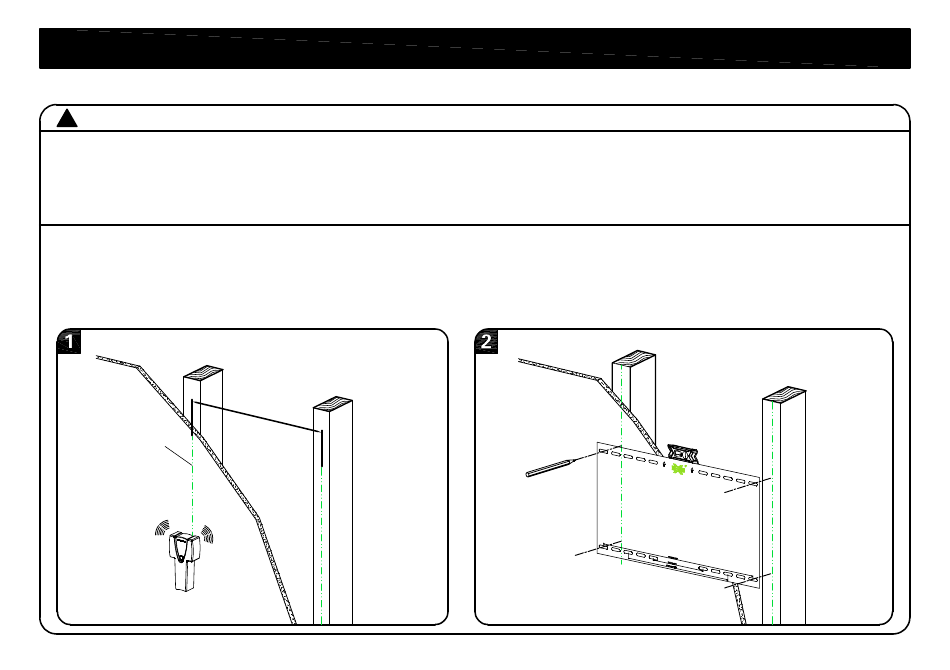

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the mounting template and mark the hole locations.
Centre line
10
Again, find another wood stud
16"/24"
Mounting template
