Bridge Mode - Alto Professional RMX1508DFX Kurzanleitung

With the AMPLIFIER MODE in MAIN+MONITOR position, OUTPUT 1 drives a Main speaker cabinet while OUTPUT
2 drives a stage monitor.
WARNING: In MAIN + MONITOR mode, the speaker loads of OUTPUT 1 and OUTPUT 2 cannot be less than 4 ohm,
or it will damage the unit.
With the AMPLIFIER MODE switch in BRIDGE position, the two power amplifiers in your RMX drive together a single
speaker cabinet with the sum of the power of the 2 amps. Usually this solution is used to drive a single subwoofer and
the MAIN OUT on the front panel is used to feed a pair of powered speakers as mid-high units.
WARNING: In bridged mode, it can only be connected with an 8 ohm speaker load, which is connected on the 2+ and
1+ terminals of OUTPUT2 speakon jack. The other speakon jacks and phone jacks cannot be connected with
speaker load, or it will damage the amplifier.
All manuals and user guides at all-guides.com
Main
Speaker
Monitor Speaker

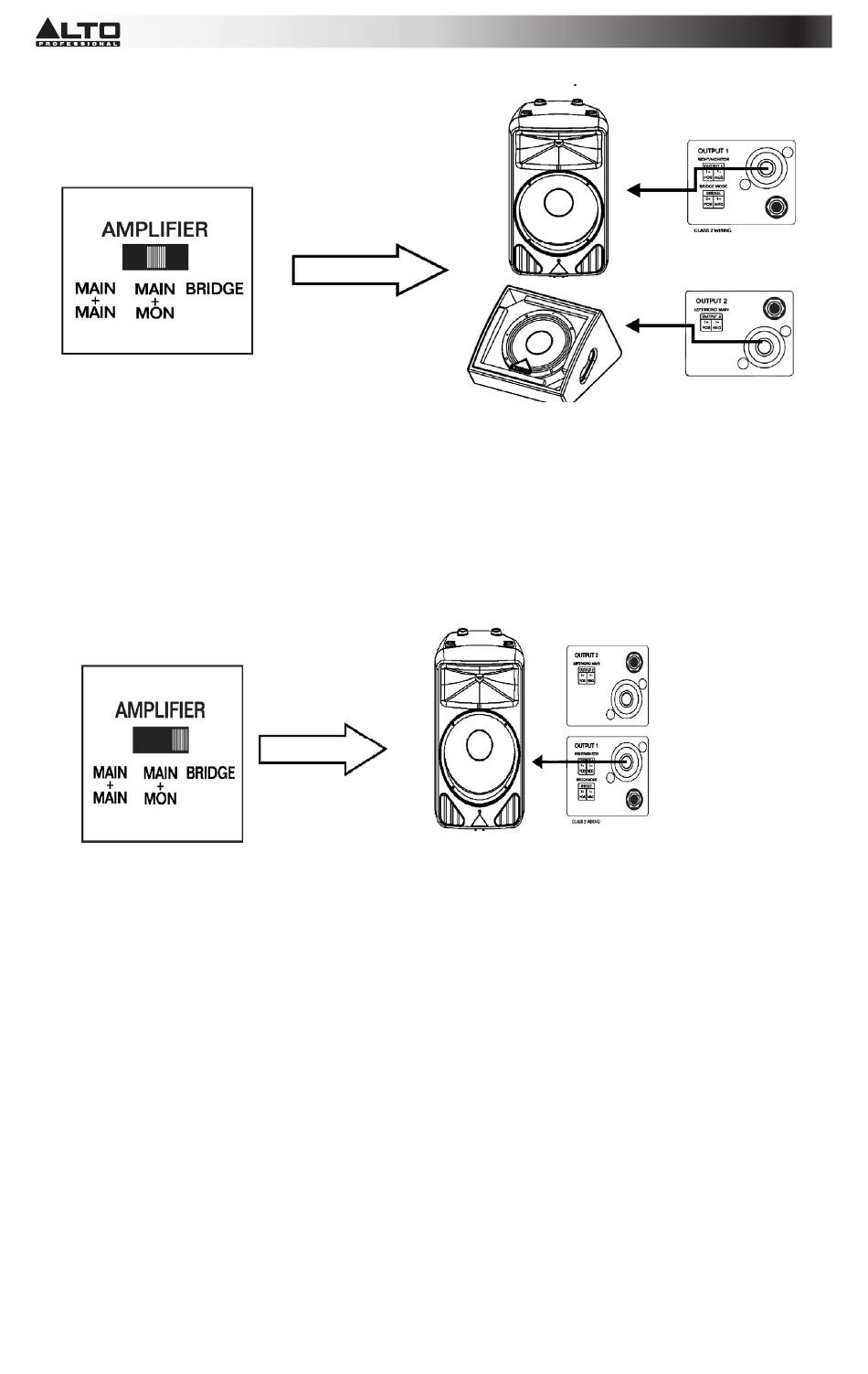

MAIN+ MONITOR Mode
Monitor Speaker

Bridge Mode

8
Use either the speakon
jacks or phone jacks
