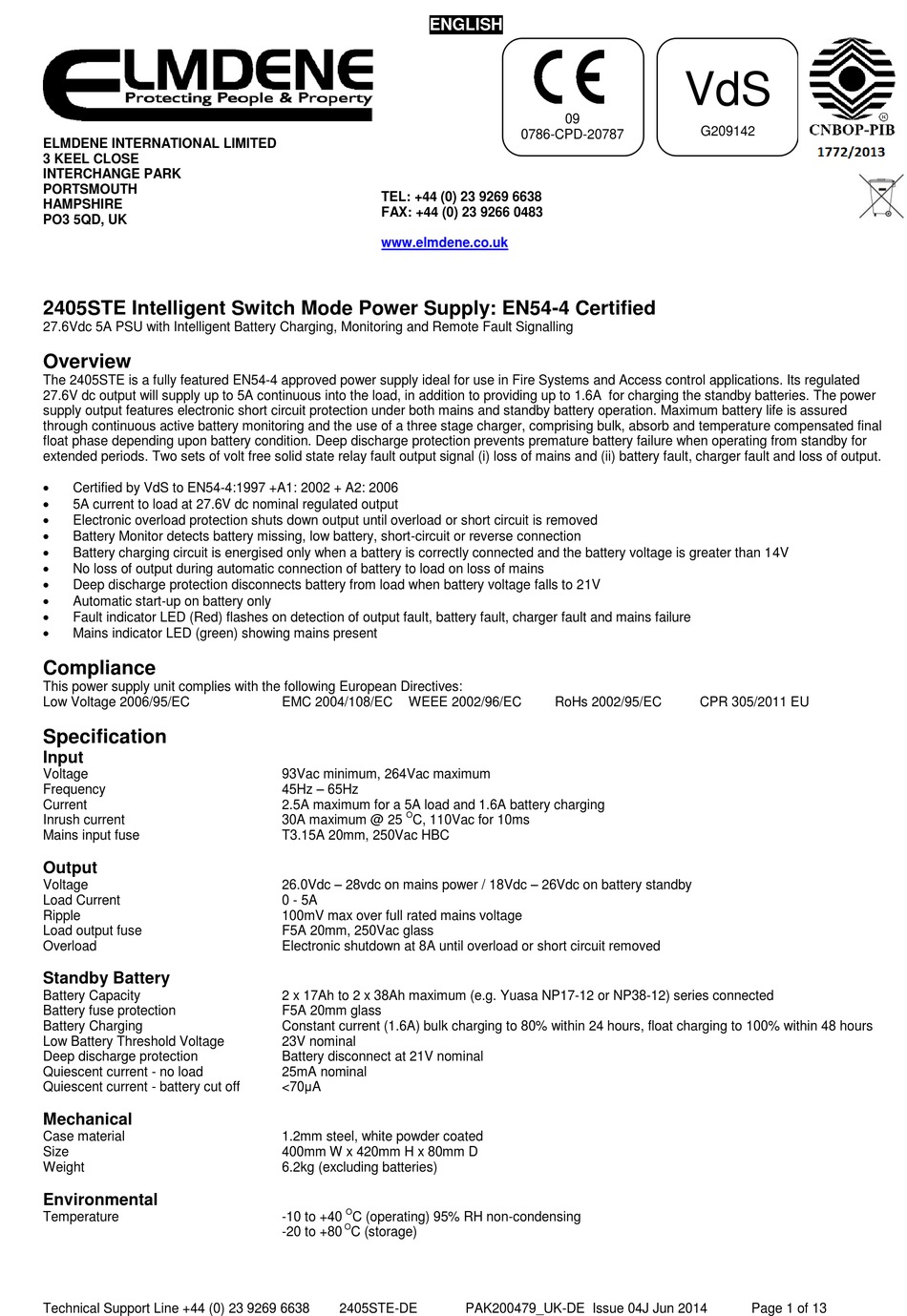

2405STE Intelligent Switch Mode Power Supply: EN54-4 Certified
27.6Vdc 5A PSU with Intelligent Battery Charging, Monitoring and Remote Fault Signalling
Overview
The 2405STE is a fully featured EN54-4 approved power supply ideal for use in Fire Systems and Access control applications. Its regulated
27.6V dc output will supply up to 5A continuous into the load, in addition to providing up to 1.6A for charging the standby batteries. The power
supply output features electronic short circuit protection under both mains and standby battery operation. Maximum battery life is assured
through continuous active battery monitoring and the use of a three stage charger, comprising bulk, absorb and temperature compensated final
float phase depending upon battery condition. Deep discharge protection prevents premature battery failure when operating from standby for
extended periods. Two sets of volt free solid state relay fault output signal (i) loss of mains and (ii) battery fault, charger fault and loss of output.

Certified by VdS to EN54-4:1997 +A1: 2002 + A2: 2006

5A current to load at 27.6V dc nominal regulated output

Electronic overload protection shuts down output until overload or short circuit is removed

Battery Monitor detects battery missing, low battery, short-circuit or reverse connection

Battery charging circuit is energised only when a battery is correctly connected and the battery voltage is greater than 14V

No loss of output during automatic connection of battery to load on loss of mains

Deep discharge protection disconnects battery from load when battery voltage falls to 21V

Automatic start-up on battery only

Fault indicator LED (Red) flashes on detection of output fault, battery fault, charger fault and mains failure

Mains indicator LED (green) showing mains present
Compliance
This power supply unit complies with the following European Directives:
Low Voltage 2006/95/EC
Specification
Input
Voltage
Frequency
Current
Inrush current
Mains input fuse
Output
Voltage
Load Current
Ripple
Load output fuse
Overload
Standby Battery
Battery Capacity
Battery fuse protection
Battery Charging
Low Battery Threshold Voltage
Deep discharge protection
Quiescent current - no load
Quiescent current - battery cut off
Mechanical
Case material
Size
Weight
Environmental
Temperature
Technical Support Line +44 (0) 23 9269 6638
ENGLISH
TEL: +44 (0) 23 9269 6638
FAX: +44 (0) 23 9266 0483
www.elmdene.co.uk
EMC 2004/108/EC WEEE 2002/96/EC
93Vac minimum, 264Vac maximum
45Hz – 65Hz
2.5A maximum for a 5A load and 1.6A battery charging
O
30A maximum @ 25 C, 110Vac for 10ms
T3.15A 20mm, 250Vac HBC
26.0Vdc – 28vdc on mains power / 18Vdc – 26Vdc on battery standby
0 - 5A
100mV max over full rated mains voltage
F5A 20mm, 250Vac glass
Electronic shutdown at 8A until overload or short circuit removed
2 x 17Ah to 2 x 38Ah maximum (e.g. Yuasa NP17-12 or NP38-12) series connected
F5A 20mm glass
Constant current (1.6A) bulk charging to 80% within 24 hours, float charging to 100% within 48 hours
23V nominal
Battery disconnect at 21V nominal
25mA nominal
<70μA
1.2mm steel, white powder coated
400mm W x 420mm H x 80mm D
6.2kg (excluding batteries)
O
-10 to +40 C (operating) 95% RH non-condensing
O
-20 to +80 C (storage)
2405STE-DE
09
0786-CPD-20787
RoHs 2002/95/EC
PAK200479_UK-DE Issue 04J Jun 2014
