HOMCOM 370-167V70 Bedienungsanleitung Seite 13

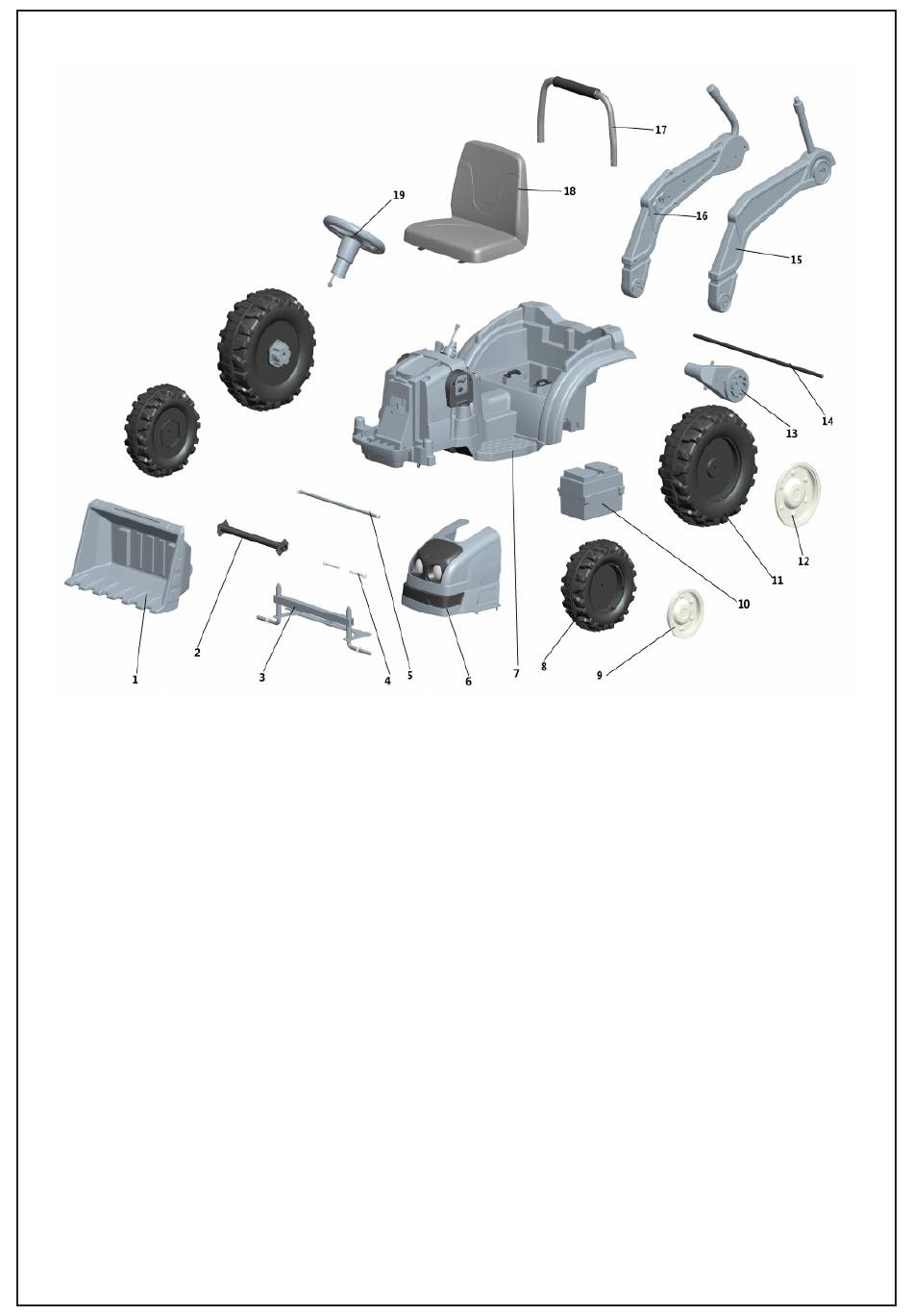

Note: Some parts shown are assembled to both sides of the vehicle.
No. Part
1.Scraper bucket
2.Front Axel Assembly
3.Front wheels Axel
4.Scraper bucket front Axel
5.Scraper bucket Rear Axel
6.Front Assembly
No. Part
13.Motor
14.Rear Axel
15.Left Scraper bucket
16.Right Scraper bucket
17. Rear Handrail
18.Seat
19.Streering wheel
Quantity
1pc
1pc
1pc
2pcs
1pc
1pc
Quantity
2pcs
1pc
1pc
1pc
1pc
1pc
1pc
No. Part
7.Main body
8.Front Wheel
9.Front Wheel cover
10.Battery box
(Including Battery)
11.Rear Wheel
12.Rear Wheel cover
Quantity
1pc
2pcs
2pcs
1pc
2pcs
2pcs
