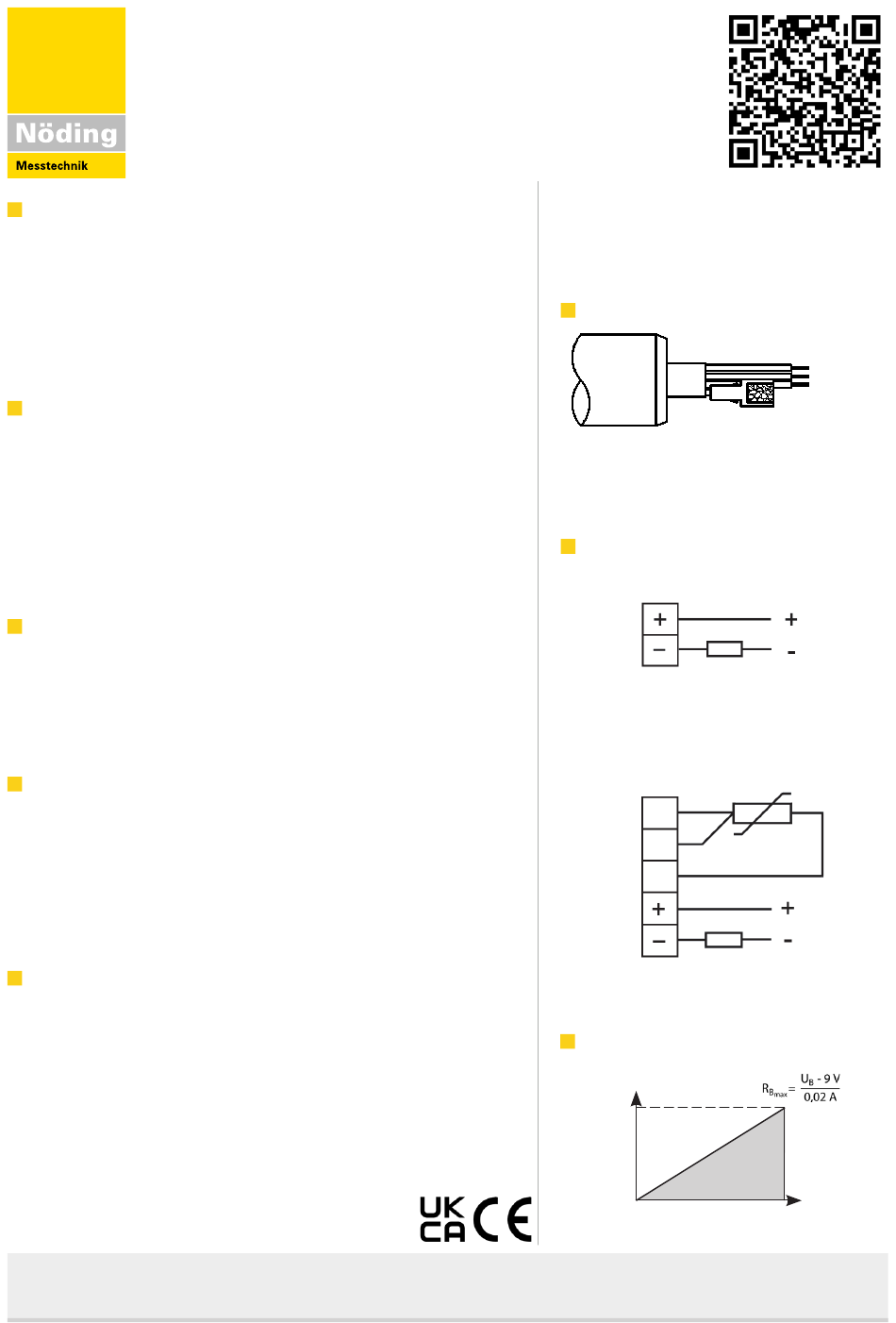

Noding P135K 2. Generation Betriebsanleitung Seite 2

P135K
2. Generation
Betriebsanleitung Tauchsonde
Operating Instructions Level Transmitter
SAFETY NOTES
If the device is used incorrectly, application related dangers may arise e.g.
product overflow through incorrect plant or adjustment. The transmitter
must be installed, connected, commissioned, operated and maintained
by qualified and authorised personnel only and under strict observa-
nce of these operating instructions, relevant national standards, legal
requirements, and where appropriate, the product certification.
INSTALLATION
The function of the transmitter is nearly independent of its orientati-
on. To protect the process connection and pressure diaphragm from
damage, remove the protective cap just before installation. A sideways
movement of the cabel probe can lead to measuring errors. Therefore
install the probe at a point free from flow and turbulence, or use a guide
tube. The cable must end in a dry room or in a proper terminal housing
with GORE-TEX® filter.
INTENDED APPLICATION
The level transmitter is a hydrostatic pressure sensor for measuring the
level of liquids. Operation is only intended with the specifications stated
on the product label. For further information, please refer to the data-
sheet.
CLEANING
The measuring device is maintenance-free.
Certain media can cause build-up and clogging of the sensor. Accumu-
lated deposits can lead to incorrect measurements. In the case of media
that tend to form deposits, the sensor must be cleaned regularly, for
example with clear water. Do not use sharp or hard tools or corrosive
chemicals to clean the sensor.
OPERATING CONDITIONS
Surrounding temperature: -25...80 °C
Storage temperature: -40...85 °C
Medium temperature: -25...80 °C
Revision: 05 / 2023 A
Technische Änderungen vorbehalten
Subject to change without prior notice
Nöding Messtechnik GmbH • Oldenfelder Bogen 29 • D-22143 Hamburg, Germany • Tel.: +49 40 67 58 51 – 0
Fax: +49 40 67 58 51 – 49 • Internet: www.noeding-messtechnik.de • E-mail: info@noeding-messtechnik.de
Further information can be found using
the QR code or at
www.noeding-messtechnik.de/P135K
INSTALLATION NOTE
Vented cable with capillary: Do not close off
capillary! Protect from ingress of water!
ELECTRICAL CONNECTION
4...20 mA, 2-wires
red
black
U = 9...30V DC
4...20 mA, 2-wires and Pt 100 / Pt 1000
temperature sensor, 3-wires
white
yellow
blue
red
black
U = 9...30V DC
LOAD
R / Ω
B
1050
9V
4...20 mA
4...20 mA
u
B
30V
