Anleitung eSafe
®
User instructions eSafe

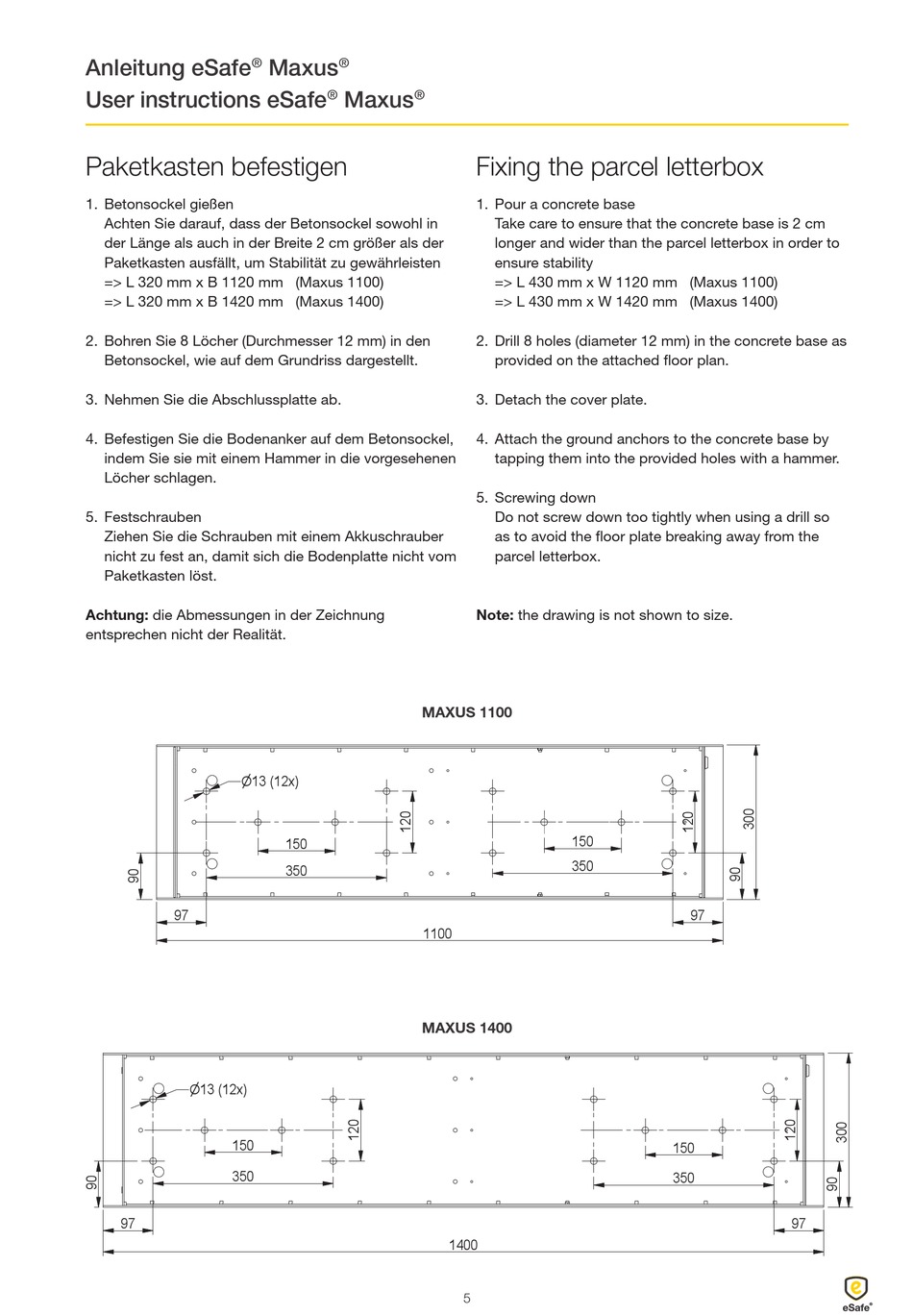

Paketkasten befestigen
1. Betonsockel gießen
Achten Sie darauf, dass der Betonsockel sowohl in
der Länge als auch in der Breite 2 cm größer als der
Paketkasten ausfällt, um Stabilität zu gewährleisten
=> L 320 mm x B 1120 mm (Maxus 1100)
=> L 320 mm x B 1420 mm (Maxus 1400)
2. Bohren Sie 8 Löcher (Durchmesser 12 mm) in den
Betonsockel, wie auf dem Grundriss dargestellt.
3. Nehmen Sie die Abschlussplatte ab.
4. Befestigen Sie die Bodenanker auf dem Betonsockel,
indem Sie sie mit einem Hammer in die vorgesehenen
Löcher schlagen.
5. Festschrauben
Ziehen Sie die Schrauben mit einem Akkuschrauber
nicht zu fest an, damit sich die Bodenplatte nicht vom
Paketkasten löst.
Achtung: die Abmessungen in der Zeichnung
entsprechen nicht der Realität.
13 (12x)
97
13 (12x)
150
350
97
Maxus
®
Maxus
®
®
MAXUS 1100
150
350
1100
MAXUS 1400
Fixing the parcel letterbox
1. Pour a concrete base
Take care to ensure that the concrete base is 2 cm
longer and wider than the parcel letterbox in order to
ensure stability
=> L 430 mm x W 1120 mm (Maxus 1100)
=> L 430 mm x W 1420 mm (Maxus 1400)
2. Drill 8 holes (diameter 12 mm) in the concrete base as
provided on the attached floor plan.
3. Detach the cover plate.
4. Attach the ground anchors to the concrete base by
tapping them into the provided holes with a hammer.
5. Screwing down
Do not screw down too tightly when using a drill so
as to avoid the floor plate breaking away from the
parcel letterbox.
Note: the drawing is not shown to size.
150
350
1400
5
97
150
350
97
®
