Chasing TRITECH GEMINI 720IM Benutzerhandbuch Seite 4

Double-headed connection cable
Size
Φ9 mm ＊ 450 mm
EN
Precautions
1. To download and use the software related to the TRITECH GEMINI 720IM
Imaging Sonar, go to the official website of Tritech at https://www.tritech.co.uk/.
2. Before you install and connect to the imaging sonar, ensure that the ROV is
disconnected from the power supply. Before you use the ROV underwater, ensure
that the connectors of all connection cables are plugged in place and the nuts are
tightened.
3. Inspect whether the machine is damaged or the parts are missing before use. If
the machine is damaged or the parts are missing, please replace them in time.
4. Inspect the unit and ensure the ports are dry and clean before use. Salt and
moisture may corrode the port. If there are water droplets in the port, be sure to
flush the socket with fresh water, and then use a paper towel or cotton ball to
absorb the water in the socket.
Support
If you have any questions or technical issues, send an email to the aftersales services of
Chasing or contact us on the official website.
Aftersales support on the official website: https://www.chasing.com/ >> Contact us >>
Aftersales service email addresses: support01@chasing-innovation.com for Europe,
support02@chasing-innovation.com for Asia and Oceania,
and support03@chasing-innovation.com for South America,
North America, and Africa.
www.chasing.com
support@chasing-innovation.com
This content is subject to change without prior notice, you could have the
latest user manual from: www.chasing.com.
04
Online Customer Support >>Click here
潜行TRITECH GEMINI 720IM
声纳套件
用户手册
V1.0
潜行TRITECH GEMINI 720IM声纳套件是为潜鲛P200潜航器搭载Tritech Gemini
720im图像声纳设备而定制开发的套装组件。套件用于潜航器与Gemini 720im图像
声纳的连接，可通过电脑与潜行遥控器3（可选控制箱）连接来使用图像声纳，赋予
您更专业的产品体验。

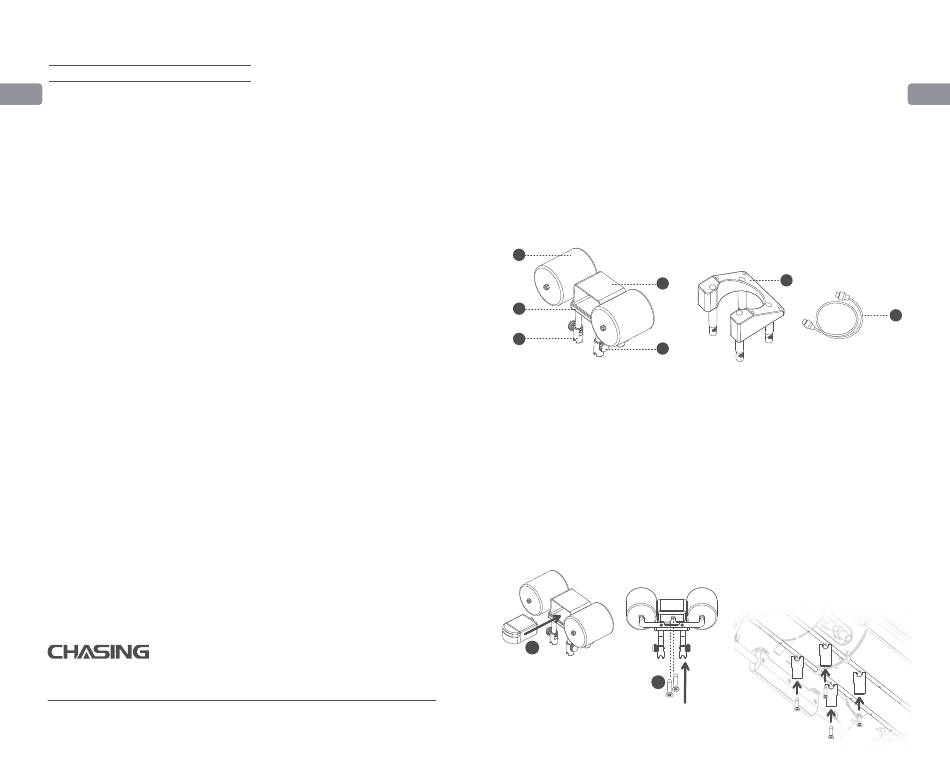

1
2
3
4
5
1. 浮力材料
2. 声纳安装框架
3. 水平安装底座
4. 安装支座
安装与连接
未搭配其他配件设备
1. ①将图像声纳放进声纳安装框架内，
②用2颗M3*8螺丝固定。
1
2
6
7
5. 手拧螺丝
6. 倾斜安装支座（30°）
7. 双插头连接线
2. 将水平安装底座上的手拧螺丝拧开并
取下4个安装支座，将安装支座用4
颗M3*8螺丝安装在潜航器底部支撑
杆上。
CN
05
