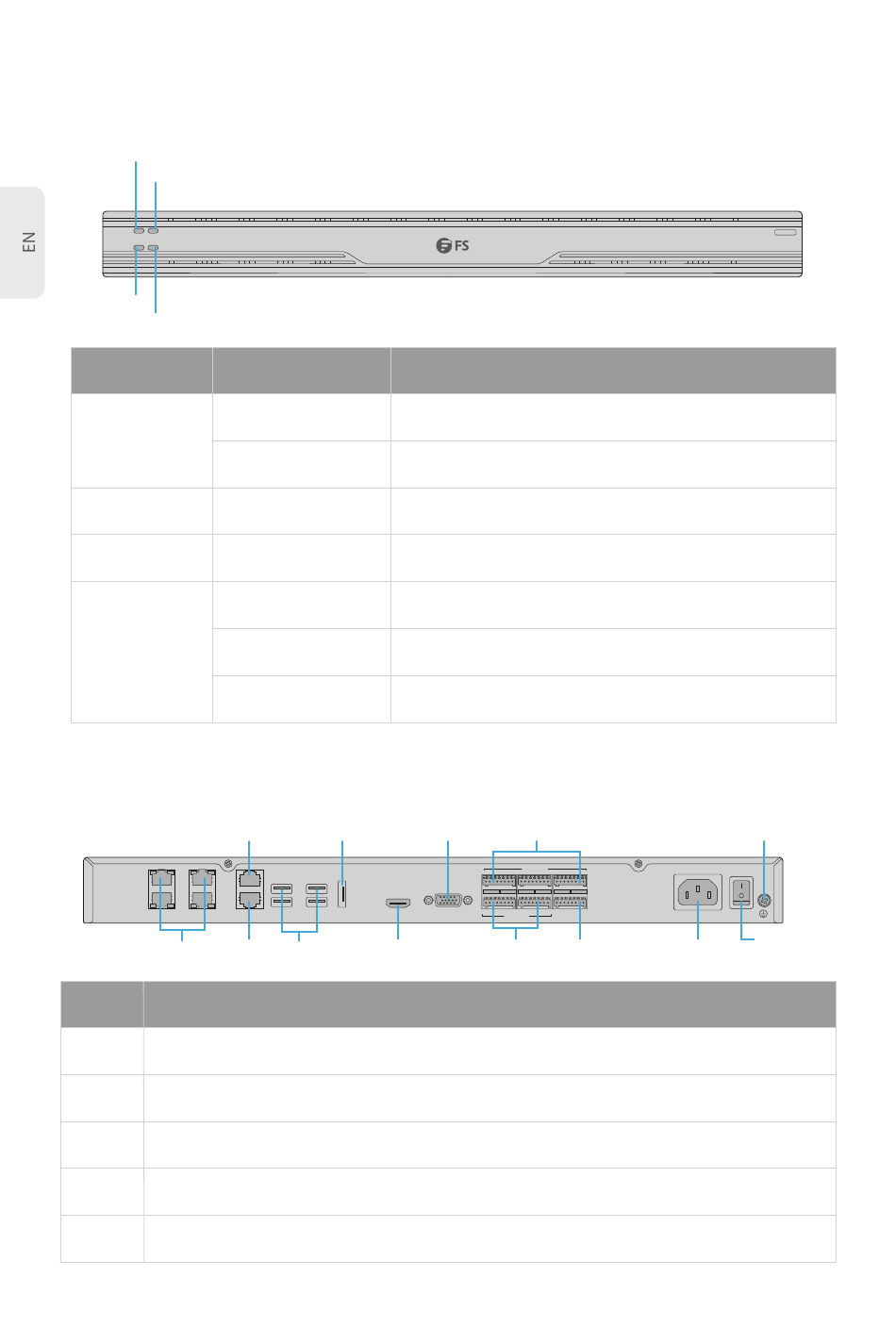

Hardware Overview

Front panel LEDs
RUN
ALM
RUN ALM
NET HDD
NET
HDD
LEDs State
Steady on
RUN
Blinking
ALM Steady on
NET Steady on
Off
HDD Steady on
Blinking
Back Panel Ports
RS485
ACT 1 LINK
ACT 3 LINK
ACT 2 LINK ACT 4 LINK
10/100/1000 BASE-T
ACT RS232
Ports Description
ACT Network interface, used to connect an Ethernet network switch
RS485 Serial port, used to interoperate with the connected device
RS232 Serial interface, used to debug and maintain the device
USB3.0
Used to connect USB devices such as USB flash drive, USB mouse and USB keyboard
e-SATA Used to connect an e-SATA disk
2
Description
Normal.
Starting up.
Device alarm.
Connected to network.
No hard disk, or disk is not connected to power.
No data reading or writing.
Reading or writing data.
e-SATA
RS485
RS232 USB3.0 USB3.0
e-SATA HDMI
USB3.0 HDMI
VGA ALARM IN
ALARM IN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
1+ 1- 2+ 2- 3+ 3- 4+ 4- 5+ 5- 6+ 6- 7+ 7- 8+ 8- G G G G G G G 12V
VGA
ALARM OUT
ALARM OUT GND
VMS-201C
Grounding point
ON
~100-240V;50/60Hz;1A OFF
ON/OFF
Power supply
