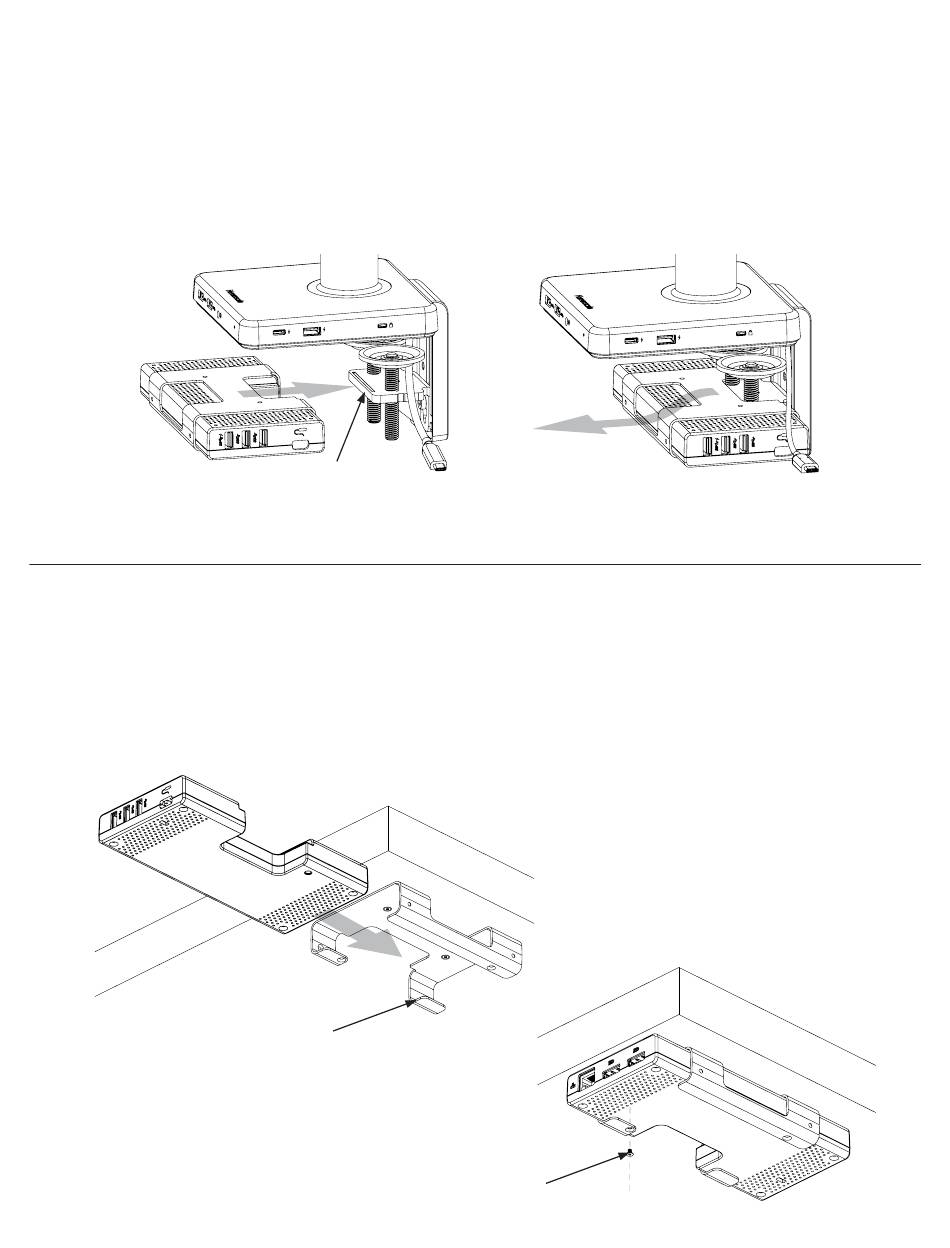

Attaching and Removing Dock
1
To attach dock, slide onto the clamp bracket (E) until it snaps into
place. ①
2
To remove dock, pull away from the clamp while applying a slight
downwards force. ②
Mounting the M/Connect Dock
Horizontal Alignment
Screw dock bracket (F) beneath work surface and slide dock in. ③
1
Install locking screw (G) through bracket into dock to fully secure. ④
2
①
E
F
③
G
②
④
