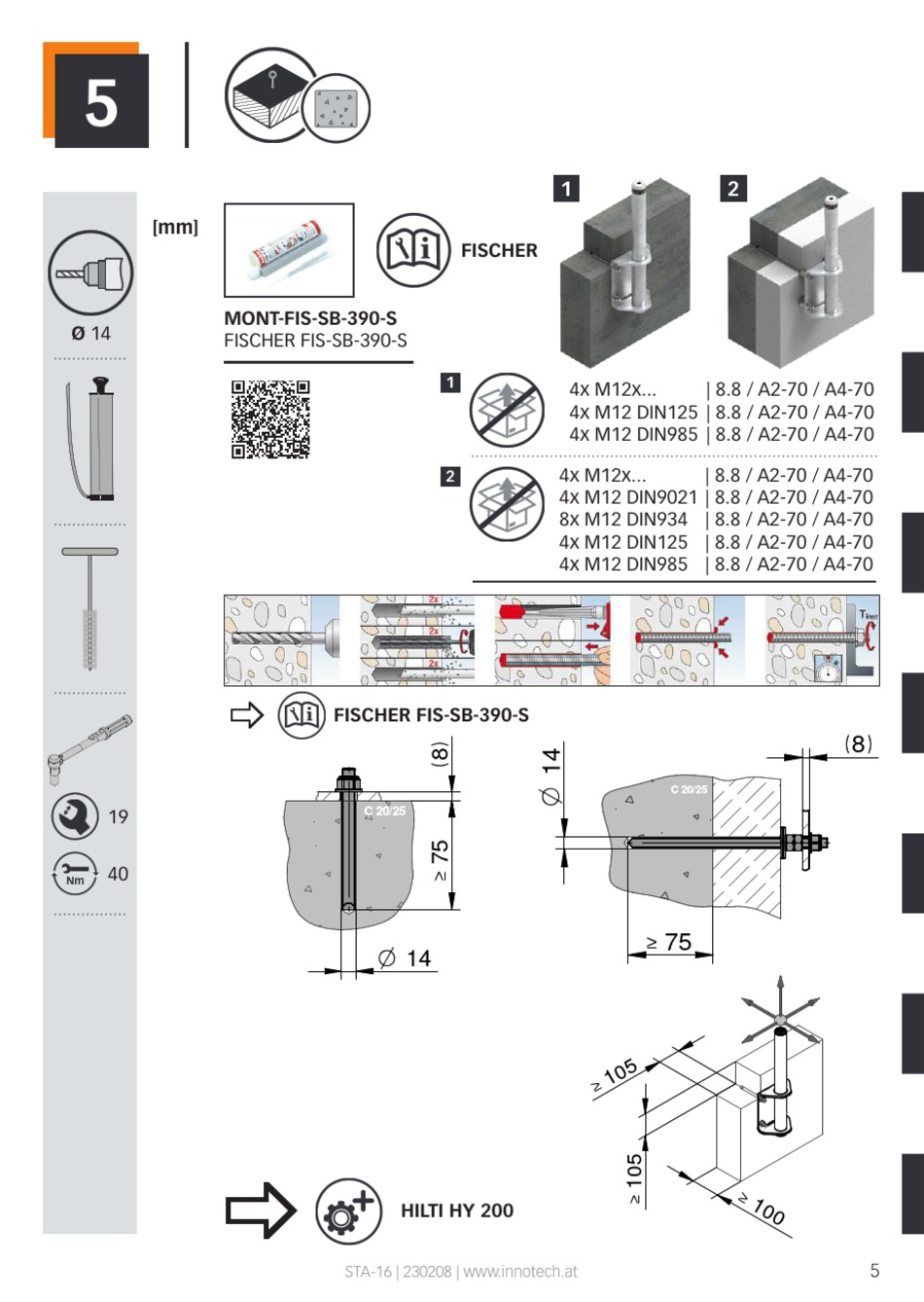

Innotech STA-16 Produktbeschreibung Seite 5

X 5
[mm]
MONT-FIS-SB-390-S
Ø 14
FISCHER FIS-SB-390-S

19
40
Nm

FISCHER
1
2
FISCHER FIS-SB-390-S
C 20/25
O
14
C 20/25
O
14
HILTI HY 200
STA-16 | 230208 | www.innotech.at
1 2
4x M12x... | 8.8 / A2-70 / A4-70
4x M12 DIN125 | 8.8 / A2-70 / A4-70
4x M12 DIN985 | 8.8 / A2-70 / A4-70
4x M12x... | 8.8 / A2-70 / A4-70
4x M12 DIN9021 | 8.8 / A2-70 / A4-70
8x M12 DIN934 | 8.8 / A2-70 / A4-70
4x M12 DIN125 | 8.8 / A2-70 / A4-70
4x M12 DIN985 | 8.8 / A2-70 / A4-70
C 20/25
≥
75
8
5
