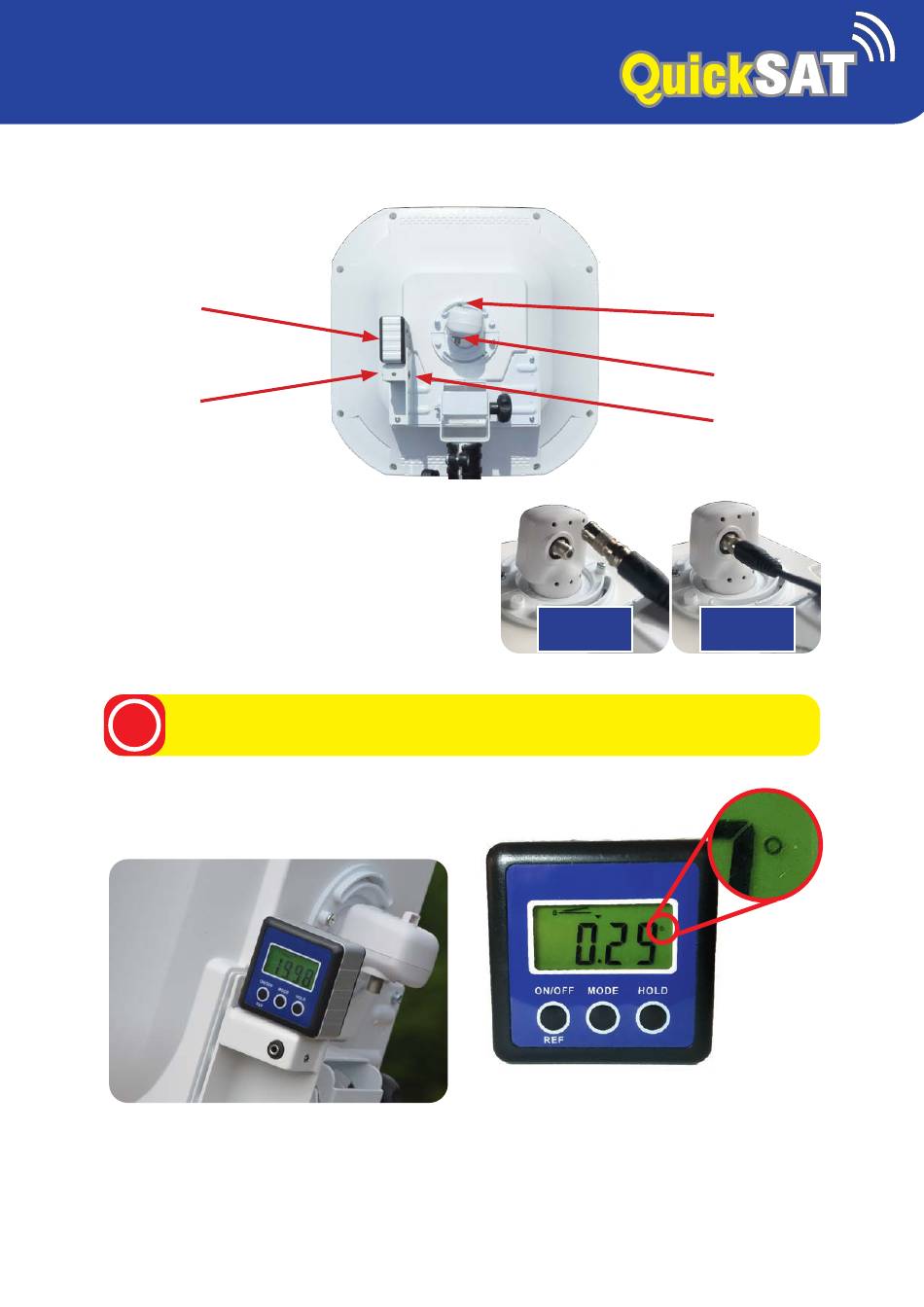

Dish Connections

Elevation Meter
3.5mm speaker
output socket
9) Connect the push fit F-type connector on the 10
metre cable (Item B) to the screw socket on the rear
of the dish.
10) Attach the magnetic base of the elevation meter
(Item C) to the bracket
!
Please ensure the meter has batteries inserted and the switch is set to ON
Once you have connected your QuickSAT dish
and positioned the meter (magnetic) it should
look like the image below:
Push fit
connector
Connecting the f-type (image shown with quick release Aadaptor)
Check that your meter is set
to degrees!
If the meter is not showing the degrees
symbol (°) press the mode button
repeatedly until it does.
EasyFind
LNB light indicator
F-Type connection
3.5mm audio input
Push fit
connector
attached to dish
7
