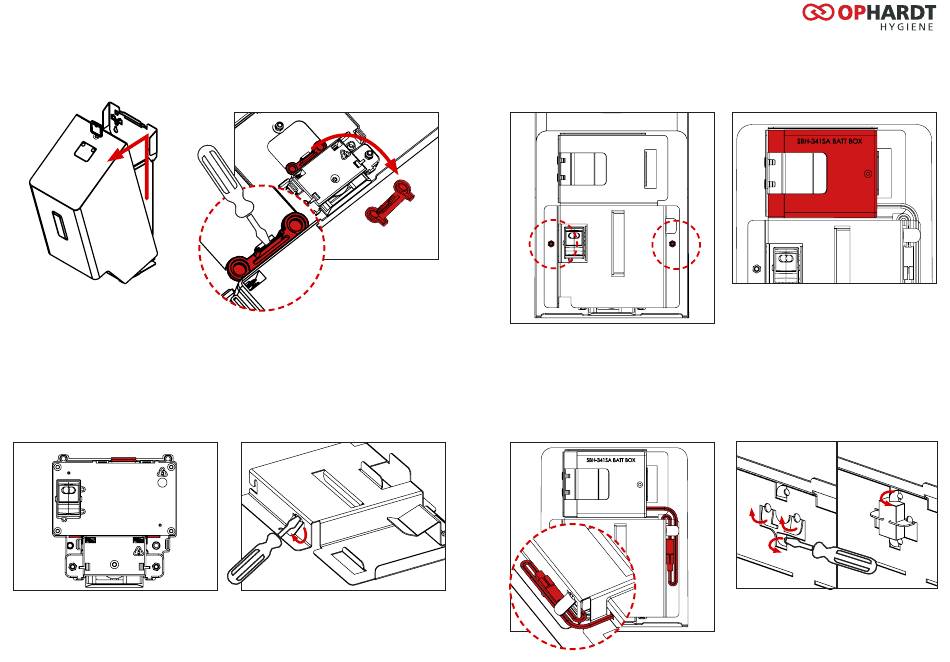

Assembly (continued)
1. Open dispenser with key.
Then raise the hood, and swivel
it forwards.
3. Click electronics box into dispenser.
(1)
(2) CLICK (2) CLICK
22
TTU 2
2. Carefully remove dummy plugs with
a flat head screwdriver.
Dummy plugs
4. Bend cable retainer outwards using a flat
head screwdriver.
45°
5. Place kit cover over electronics box and
secure with two M3 nuts.
7. Join cables of electronics box to cables
of battery box and guide through cable
holder as per diagram.
6. Fit battery box in holder on kit cover.
8. The magnet holder is located on the in-
side of the backwall of the device. Bend
3 metal tabs of metal holder inwards (1)
then insert magnets (2) and bend upper
tab inwards (3). Start bend with flat head
screwdriver and complete bend with
pliers. The bent out clips must enclosure
the magnet securely. Close dispenser.
45°
(3)
90°
90°
(2)
(1)
45°
