5.1.2

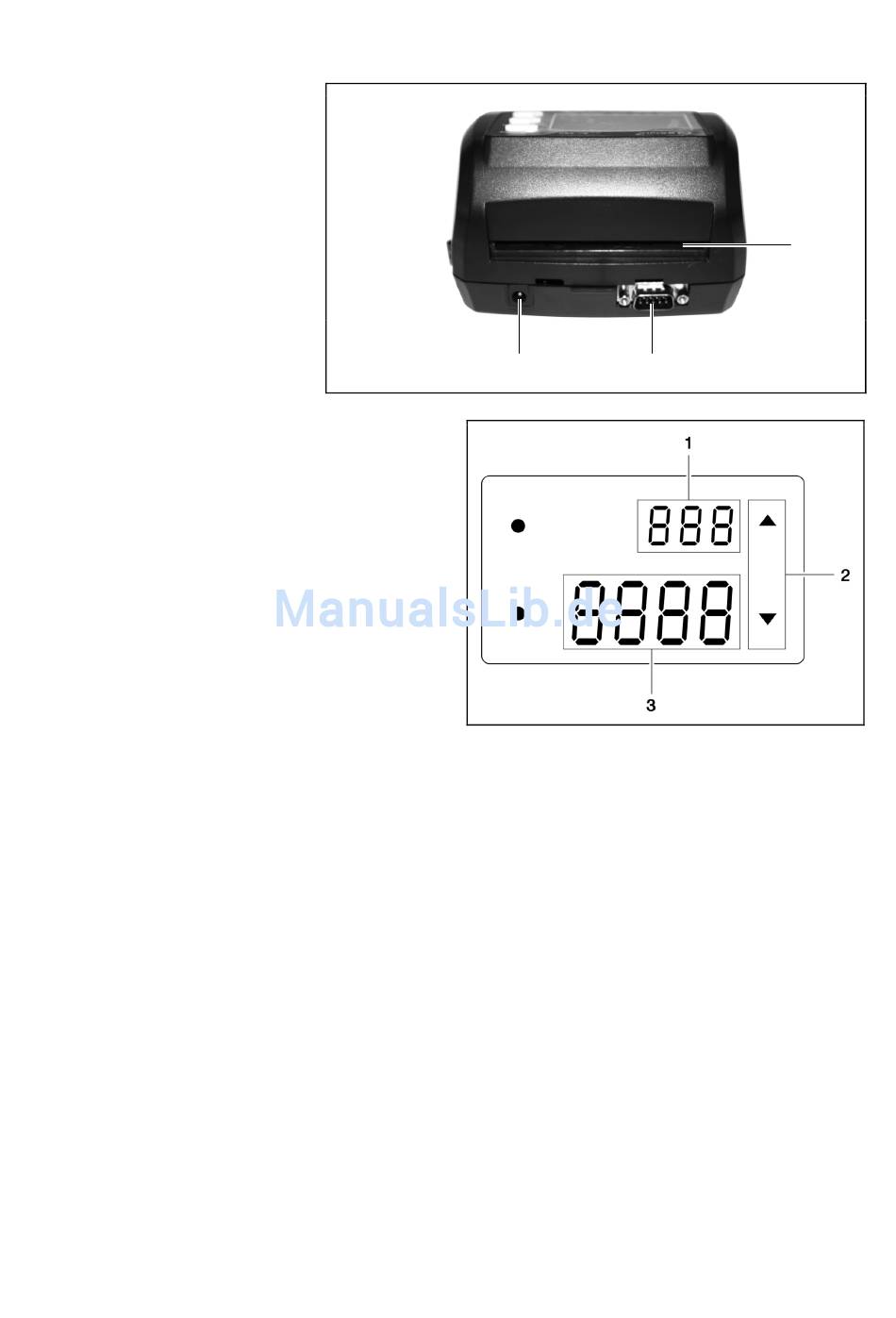

Rear view

1 Rear discharge slot
2 Serial port (to connect a PC)
3 Connection for power adapter
plug
5.1.3

Display

1 Indicates the number of bank notes checked (count
display)
2 Discharge direction for bank notes
3 Indicates the total value of bank notes validated
(value display)
5.2

Starting up

Set the bank note validator down on a stable, level
surface.
Note: Position the NC 320 near a power socket.
Note: If the bank note validator has been exposed
to cold temperatures for a longer period, wait
for at least 2 hours until the bank note validator
has reached room temperature before switching it on.
The power supply to the bank note validator is only provided via the power adapter plug.
1. Ensure that the bank note validator is switched off at the On/Off switch.
2. Connect the power adapter plug to the NC 320 on the rear side of the bank note validator.
3. Then connect the power adapter plug to an appropriate power socket (AC 100V~240V, 50Hz/60Hz).
5.3

Selecting the discharge side

The bank note validator is provided with two discharge sides for validated bank notes. The bank notes can be
discharged either on the rear side of the bank note validator or fed back to the front of the device.
Note: Counterfeit or unrecognised bank notes are generally discharged at the front.
1. Switch the bank note validator on.
2. Press and hold the REPORT button for 2 seconds.
3
- 12 -
Olympia NC 320
1
2
