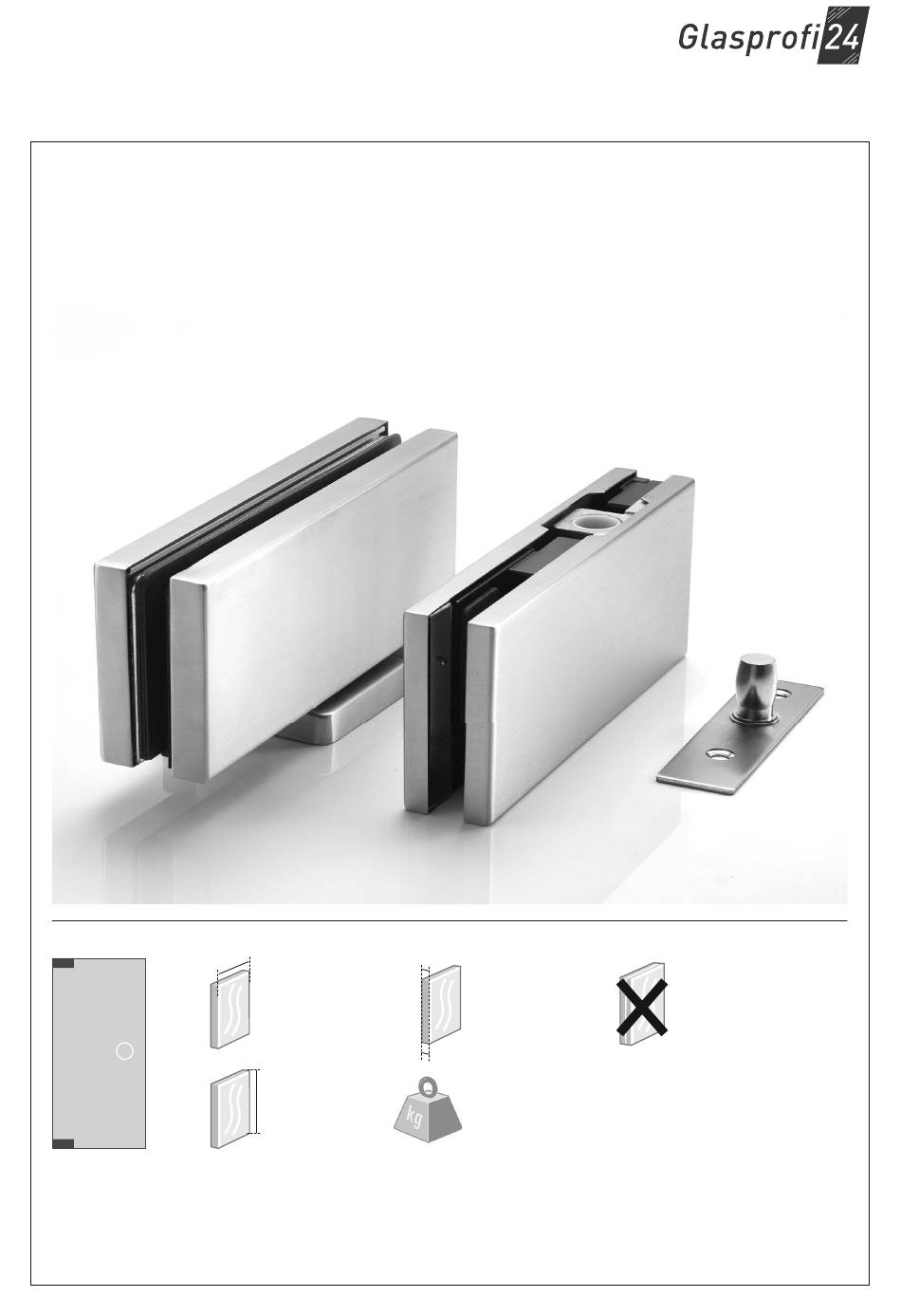

PENDULA - Pendeltürbeschlag EN3/ANSI 3 Montageanleitung · Instruction Manual Nicht für VSG geeignet max 1.000 mm 8 - 12 mm (Do not use with laminated (39-3/8“) (5/16 - 1/2“) safety glass) Verwendung mit Verbundsicherheitsglas: max 2.590 mm max 100 kg Nur in Verbindung mit strukturellem PVB (102“)
Seite 2
Montagesatz/ Glasreiniger/ Mounting Kit Glass Cleaner ø 10 mm (3/8“) ø 6 mm (1/4“) 2x M8 x 30 enthalten nur im Set included only in set 2x Ø10 x 30 02 / 12 www.glasprofi24.de 91 60000 0 00 | 01.2023...
Seite 4
Mark hole position 90° (3/8“) (2-3/16“) (25/32“) (1-25/32“) Einheit / Unit mm (inch) 65 mm (2-9/16“) Drill hole 04 / 12 www.glasprofi24.de 91 60000 0 00 | 01.2023...
Seite 5
= 2,5 mm = 0,5 mm = 1,0 mm = 1,0 mm 8 mm 10 mm (5/16“) (3/8“) 12 mm (1/2“) 91 60000 0 00 | 01.2023 www.glasprofi24.de 05 / 12...
Seite 6
12 mm 2 x 2 mm* 2 x 2 mm* 2 x 2 mm* 2 x 2 mm 2 x 1 mm * pre-installed 5 Nm (3.7 ft-lb) 10 Nm (7.375 ft-lb) 06 / 12 www.glasprofi24.de 91 60000 0 00 | 01.2023...
Seite 7
3˚ ± 3 mm 3 mm 3 mm 3˚ 3 mm 3 mm 3 mm 3 mm max. 3x max. 3x 3˚ 3˚ max. 3x max. 3x 91 60000 0 00 | 01.2023 www.glasprofi24.de 07 / 12...
1. Check the door closer every three months to ensure all fixings are secure and adjusted. If necessary, adjust the closing and latching speed to ensure functional and smooth operation of the door in accordance with BS EN1154:1997. 2. Apply oil lightly to the arm knuckle joint and door hinges. 91 60000 0 00 | 01.2023 www.glasprofi24.de 09 / 12...
