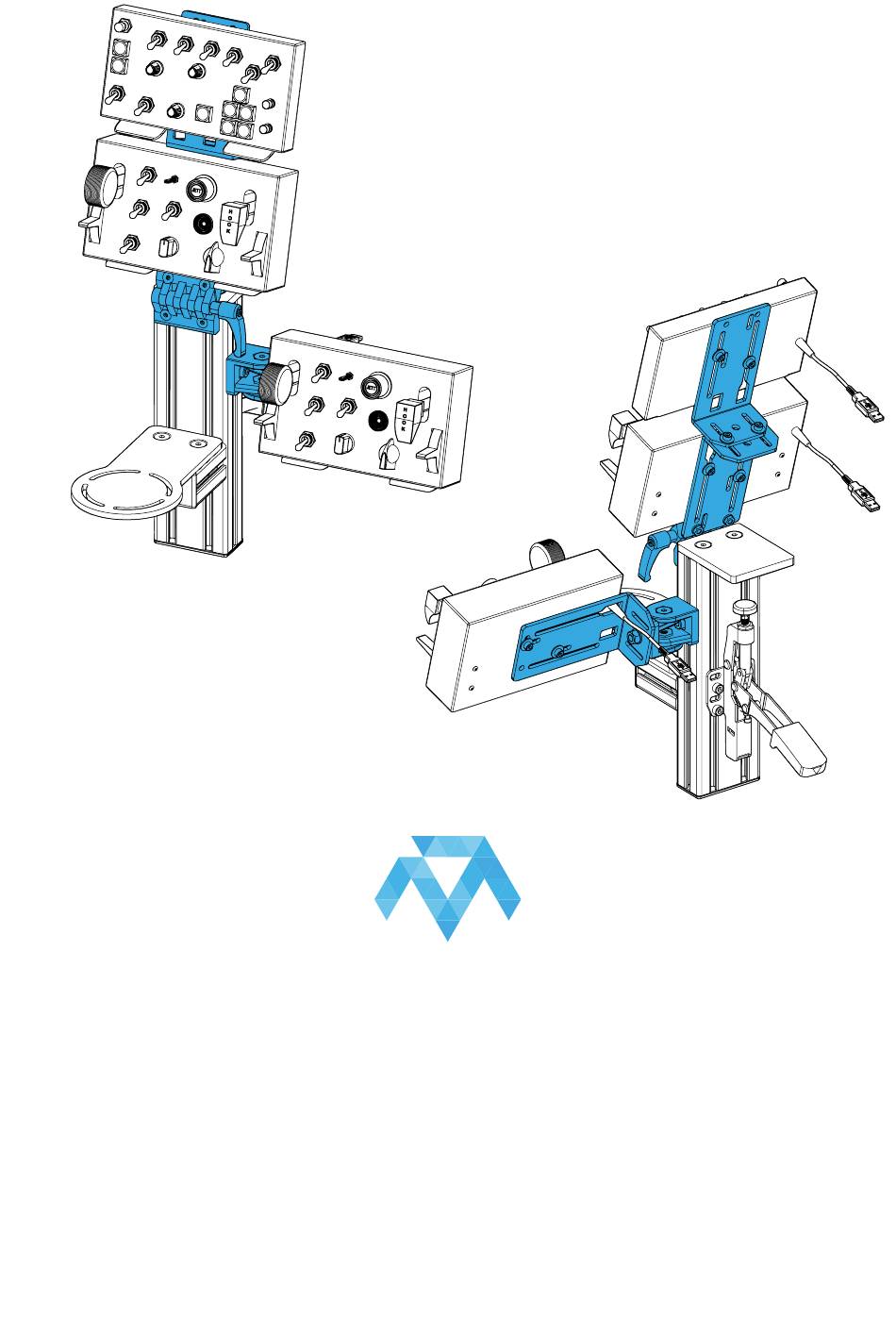

- Seite 1 WINWING PANEL MOUNT Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Seite 2 GENERAL ASSEMBLY INFO AND HOW TO PROFILE NUT HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 3 UNIVERSAL CONNECTOR M8x30 Ø8mm Nut M8 BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm] M8x35 M8x25 MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 4 PROFILE CAP ASSEMBLY MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 5 PARTS FOR CENTER MOUNT [dimensions in mm / different scales] No extra or spare parts listed! Ø5,5 PARTS FOR SIDE MOUNT locknut selbstsichernd Ø5,5 plastic black as spacers MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 6 ASSEMBLY FOR CENTER MOUNT Attention! Screw-in depth limited! washer Ø15 M5x14 MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 7 2x M6x22 flat head hinge 2x washer Ø12 2x flat nut slot nut MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 8 M6x22 flat head MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 9 OPTIONAL MOUNTING OF A SECOND PANEL ON TOP M5x14 washer Ø15 Parts colored for better identification. washer Ø15 M5 nut MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 10 Ø15 M5x14 MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 11 ASSEMBLY FOR SIDE MOUNT 2x flat nut M6 as spacers For side mounted WinWing „Take Off Panels“ put spacers in between. 2x washer Ø15 2x M5x14 plastic washer Ø16 locknut M8x18 joint MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 12 M8x16 optional rotation blockers MTSIM WINWING PANEL MOUNT INSTRUCTION MANUAL...
- Seite 13 21-03-2022...
-
Seite 14: Warning Notices
WARNING NOTICES CAUTION! Do not clamp your fingers while attaching the table mount. CAUTION! Check before usage if all screws are tightened. CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments. DANGER: Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults.
