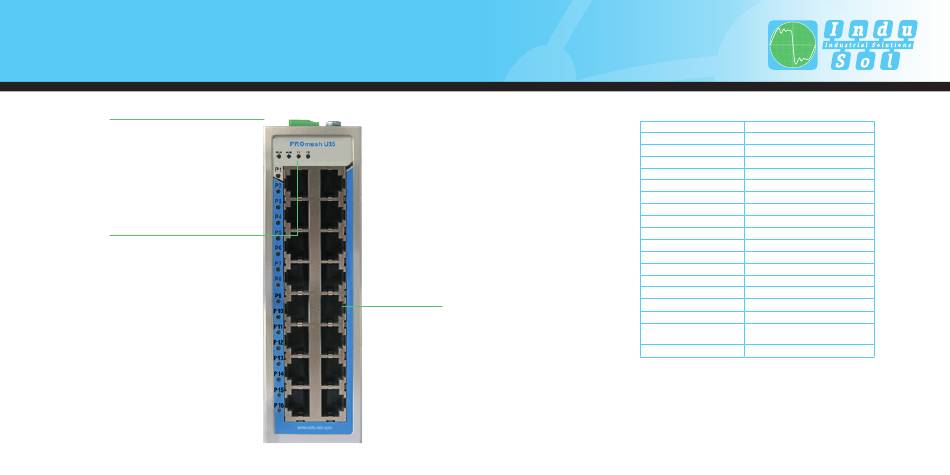

Device Connections
Power Supply
V1+ = DC 24V
V1- = 0V Ground
V2+ = DC 24V
V2- = 0V Ground
Status LEDs
Run, Alarm, VDC 1, VDC 2
8
ENGLISH
Technical Data
X 1 Data Ports
16 x RJ45
General Information
Voltage Supply
2 x 24 VDC
Max. Current Consumption
0,108 A
Max. Power Consumption
2,6 W
Size (H x W x D)
138 x 53 x 110 mm
Weight
667 g
Mounting
35 mm DIN rail
Protection Class
IP40
Storage temperature
-40°C .. 85°C
Operating temperature
-40°C .. 75° C
Relative Humidity
5% .. 95%, RHD non-condensing
Backplane Capacity
3,2 Gbit
Throughput:
2,4 Mpps
Switch memory
1 Mbit
MAC Adress Table
2k
PROFINET Conformance
Class A
Data Ports
8x 10/100 MBit/s RJ45
Switching Mode
Store & Forward
DIP Switch Settings
Storm Suppression
Flow Control
MTBF
415628 Hrs
The PROmesh U16 is an unmanaged Ethernet Switch for industrial automation systems.
It enables uncomplicated installation of bus, star and ring structures with switching
functionality.
