GRAVITY VARI-ARM M 38 MEDIUM Bedienungsanleitung

VERSATILE SWIVEL ARM
WITH CENTRAL LOCKING MECHANISM
VARI®-ARM M 38 · MEDIUM
SAFETY INFORMATION
1. Please read these instructions carefully before you start installation
and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other
information from the equipment.
5. Be attentive when setting up the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to
product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal
of packaging, please separate plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings,
please contact your local distributor.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARA-
TIONS_GRAVITY.pdf
To request warranty service for a product, please contact Adam Hall GmbH,
Adam-Hall-Str. 1, 61267 Neu Anspach / Email Info@adamhall.com /
49 (0) 6081 / 94 19-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste
separation)
This symbol on the product, or the documents accompanying the product,
indicates that this appliance may not be treated as household waste. This is
to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and
have it recycled to promote sustainable economic activity.
Gravity is a registered brand of the Adam Hall Group
®
FEATURES
• Swivel arm for free arrangement of equipment
• Sturdy steel construction
• One main adjustment screw for loosening and tightening all joints
• 3 kg load capacity holds even cameras with lenses and heavy
microphones securely in position
• 2 x 3/8" thread
• Solid mounting clamp with a large clamping range (15–35 mm)
• incl. 1/4" reduction thread
• For live & studio musicians, videographers, podcasters & YouTubers & Co.
DESCRIPTION
In the past, if you wanted to produce music, videos or other content profession-
ally, you had to go to specialised studios. Today, podcasts and YouTube videos
for millions of followers and even international hit albums are recorded either at
home or spontaneously on the road. It doesn't take much anymore. However,
it is crucial that the remaining equipment is as flexible and well thought-out as
possible.
With the VARI®-ARM M 38, Gravity® has created such an universal tool that
allows you to use a wide variety of equipment - from a microphone clamp to a
tablet or an action cam - almost anywhere and in any direction in a matter of
seconds.

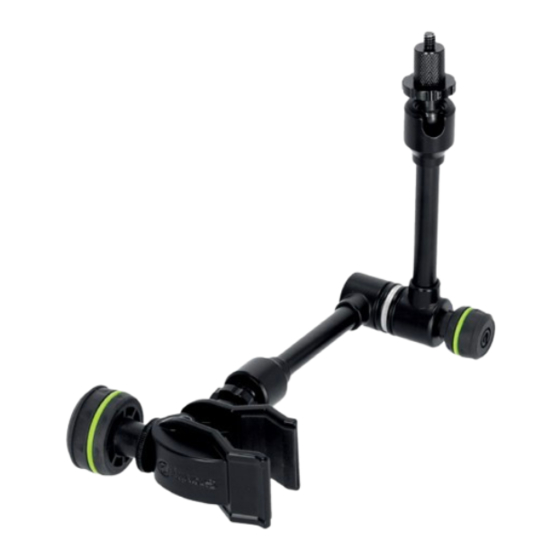

The VARI®-ARM M 38 is an innovative mounting arm with three joints that allow
you to move your equipment freely and precisely into any desired position. Its
main feature:
Only one adjusting screw is needed to lock and unlock all three joints. As soon
as you have found your desired position, you tighten the locking screw and the
position of the VARI®-ARM M 38 is held tight and safe. Thanks to the 3-kilogram
load capacity, you can even mount a DSLM camera including a standard lens
or a heavyweight microphone such as the broadcast classic RE-20.
There is a 3/8" thread at the head of the VARI®-ARM for you to screw on a micro-
phone clip, a pop filter and more. The included adapter (3/8" to 1/4" reduction
thread) gives you complete flexibility, allowing you to use almost any camera,
handheld recorder or smartphone mount on the market with the VARI®- ARM
M 38.
Thanks to the solid clamp at the bottom of the VARI®-ARM and its large clamp-
ing range from 15 to 35 mm, the VARI®-ARM can also be easily attached to most
tables and poles (e.g. to tripods). The clamp can also be unscrewed to reveal a
3/8" thread for mounting the VARI®-ARM onto other equipment.
As a universal tool for your creative purposes, there are hardly any limits to the
VARI®-ARM M 38's usability.
SPECIFICATIONS
Product number
Product type
Type
Material
Color
Arm length (without clamp)
Mounting
Threaded connector
Fits tube diameters up to
Interchangeable rings
Black ring pack included
Accessories (included)
Dimensions (LxHxW)
Max. load
Weight
Adam Hall GmbH | Adam-Hall-Str. 1
61267 Neu-Anspach | Germany
GMAVARIARMM38
Microphone Accessories
Vari-Arm
Steel
Black
270 mm
Microphone Stand, Tabletop
3/8"
15 mm to 35 mm
1x 15 mm 1x 25 mm
Yes
1x adapter 3/8" female to 1/4" male
335 x 103 x 40 mm
3 kg
0.45 kg
