5) Service
a) Have your power tool
serviced by a qualified
repair person using only
identical
parts. This will ensure that
the safety of the power tool is
maintained.
If the supply cord of this power
tool is damaged, it must be re-
placed by a specially prepared
cord available through the ser-
vice organization.

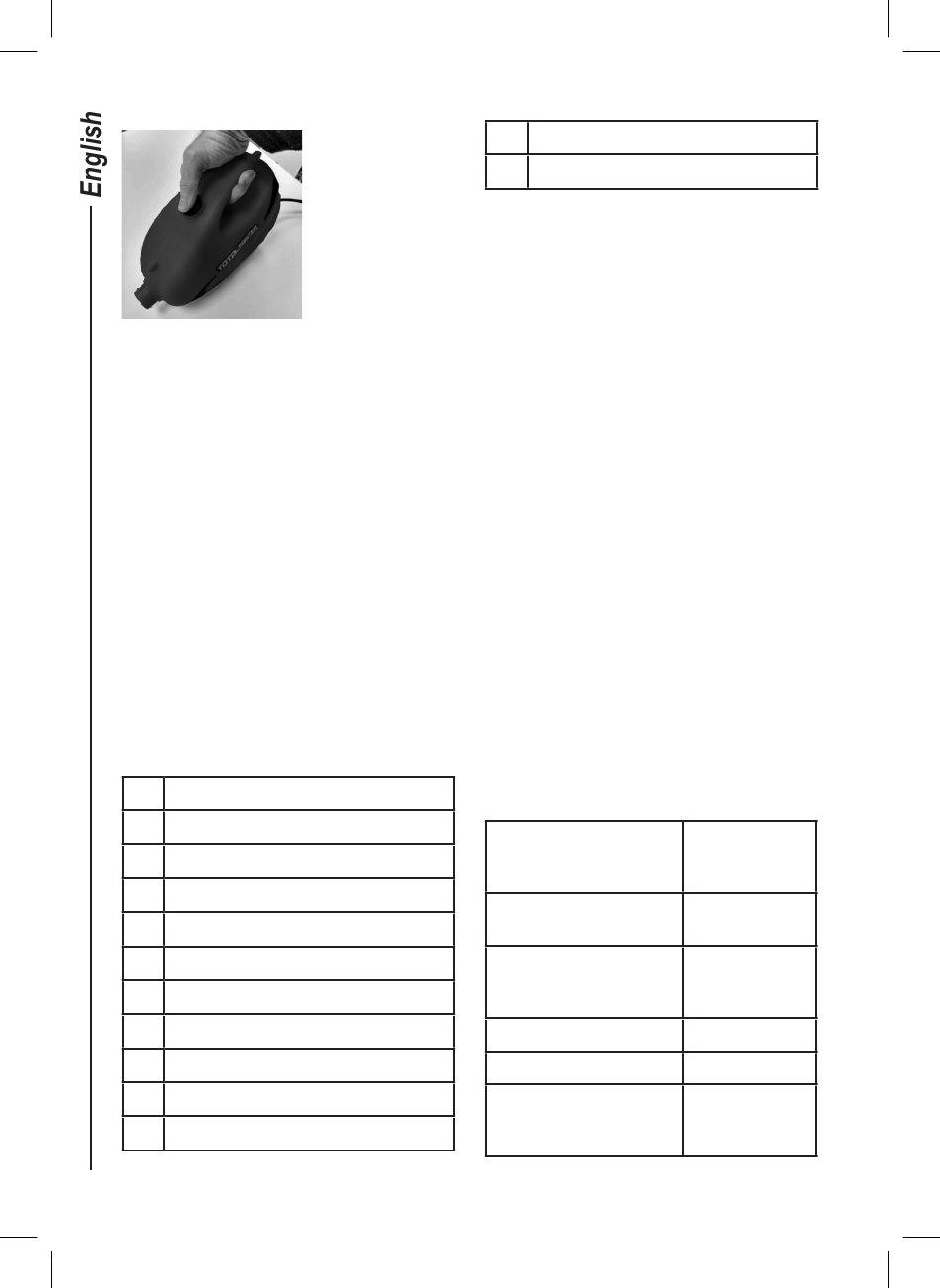

PARTS DETAIL

(See Figure 1)
1 Nozzle
2 Nozzle adjuster ring
3 Spray gun body
4 Trigger
5 Flow-adjustment screw
6 Air hose
7 Valve
8 Paint tank
9 Hose
10 Carry strap
11 ON/OFF Switch button
10
replacement
12 Plug
13 Viscosity cup
MATERIAL TYPES:
Use materials recommended for use with a
spray gun.
Preparation of the spray material
Total Painter can be used to spray undiluted
or slightly diluted paint, lacquer and varnish.
If the paint needs to be diluted, start with a
dilution of 10%. Do this by filling a 1-litre con-
tainer with the paint to be used. The viscosity
cup holds one decilitre, so cover the hole and
fill it with the required thinner. Add the thinner
to the paint and stir thoroughly. Then measu-
re the viscosity using the guidelines provided
below. If the paint needs to be thinned further,
dilute it by a further 5% (half the capacity of
the viscosity cup) and measure the viscosity
again. If the paint has still not reached the
recommended viscosity, repeat the previous
step until the right viscosity is obtained.
This spray gun can be used with products
with a viscosity of 25 DIN/sec to a maximum
of 50 DIN/sec. Submerge the viscosity cup
in the material and fill it. Then time how long
it takes for the cup to empty (Figure 2). This
time is known as "DIN/sec". Apart from these
guidelines, you should also see the material
manufacturer's instructions, as a guide to de-
termine whether the material requires further
thinning.
Guidelines:
Example of material
Water-based paint and
emulsions
Gloss paint, water-soluble
or solvent-based coloured
lacquers
Varnishes
Primers
Wood impregnators,
stains, oils, disinfectants,
phytosanitary products
A p p r o x i m a t e
DIN
values
25-50 DIN/sec
45-50 DIN/sec
undiluted
45-50 DIN/sec
undiluted
