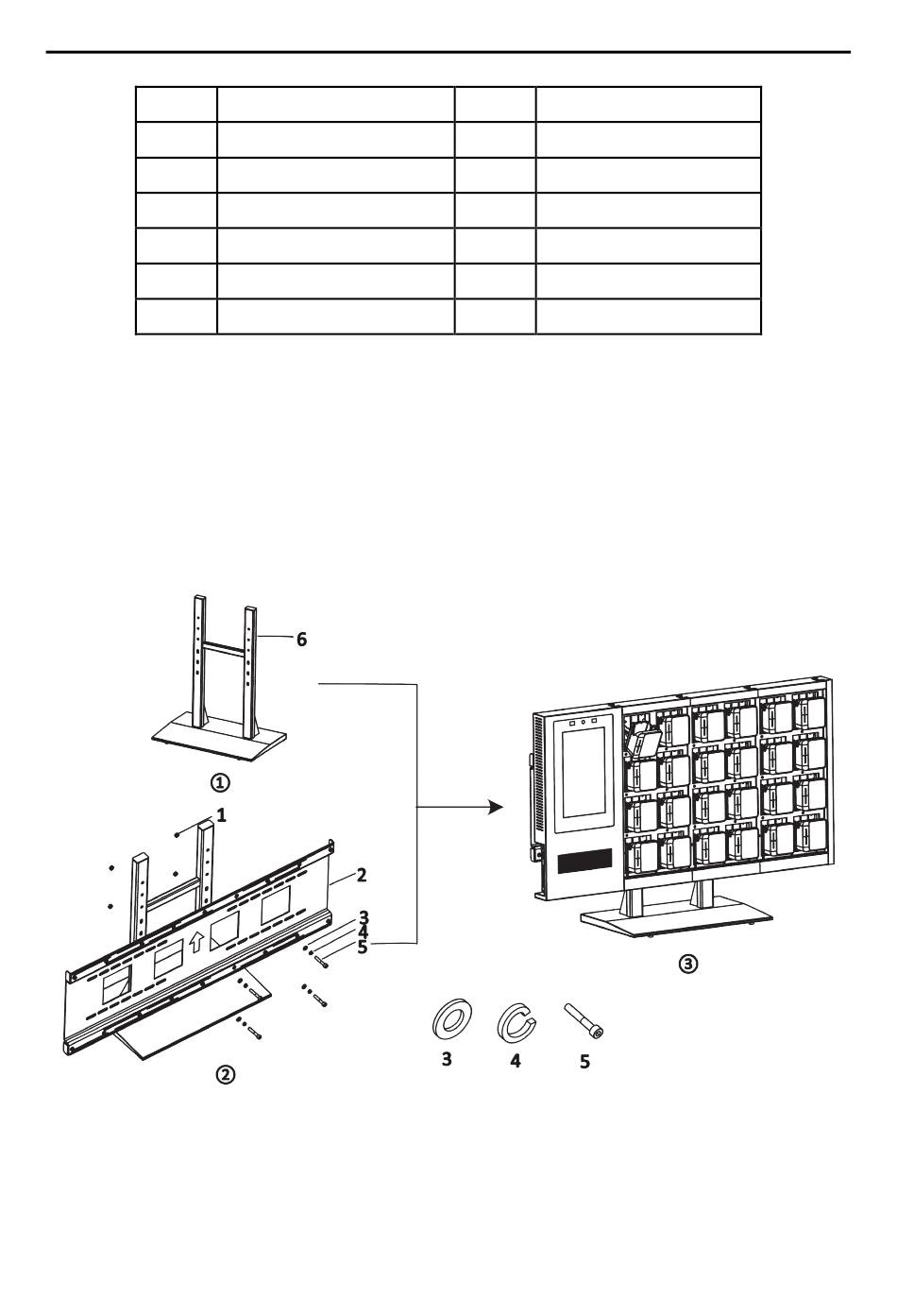

Desktop Mount
1. Install the desktop bracket.
2. Install the hanging bracket to the desktop bracket.
3. Install the host and dock station(s) to the hanging bracket.
Note:
Never place the equipment in an unstable location. The equipment may fall,
causing serious personal injury or death. Install safety protection
equipment if necessary. Check regularly.
Description
M10 nut
L-type hex wrench
M8 × 20 mm bolt
Spring washer
Flat washer
M8 nut
No. Description
7 Hanging bracket
8 M8 × 70 mm bolt
9 Universal wheels
10 Bracket base
11 Connecting pipes
12 Mobile bracket
