12165 DJ Desk
INTENDED USE
The DJ desk 12165 does what it was designed for, i.e. it offers storage space for all
kinds of DJ and studio equipment including a cable organizer under the tabletop.
Due to its foldable, solid, height-adjustable and well-tested base it is - not only - but
especially suitable for mobile use.
FEATURES & CAPABILITIES
- Load-bearing capacity max. 80 kg
- Compact package, fast and tool-free; ideal for transport and storage
- Height-adjustable legs; adjusting screws compensate for any unevenness of the floor
- he "cable organizer" provides space for coiled cables, power boxes, etc. In addition,
- there are several Velcro straps for fastening loose cables. This is not least for the safety
- of all "involved"
- Table top W x D x H: 1100 x 450 x 15 mm; Supports height 610-1000 mm
- Weight: 15,5 kg
- Extension possible by: Rear tray (Art. 12166),
- side tray (Art. 12167)
Thank you for choosing this product. The instructions provide directions to all of the
important set up and handling steps. We recommend you keep these instructions for
future reference.
SAFETY NOTES
GENERAL
- The fact that the product is collapsible and adjustable can result in the risk of
- pinching/wedging of your fingers. Careful and attentive handling and setup during
- setup, operation and disassembly is indispensable.
- The product must be protected from adverse external influences such as:
- - moisture, wind, shocks (e.g. from the audience)
- Check DJ desk for damage before and after use. Do not initially continue to use
- a damaged product; defective parts must be replaced or repaired before use.
OPERATION
- Load-bearing capacity max. 80 kg
- Ensure that the floor is suitable, i.e. load-bearing and level.
- Before installing the equipment, the following must be done:
- a. the stand legs are adjusted to the same height (chapter 3) and
- b. the folding table struts are pushed through to the end position (chapter 5)
- Height adjustment only allowed in unloaded condition.
- Check the strength and condition of the components and the screw connections
- at regular intervals
COMPONENTS
A pre-assembled table
B 4 U-Profile-Feet (= Height adjustments)
C Accessory bag (03-21-975-55) with 3 Velcro strips 25 x 220 mm
D Accessory bag (6-12165-1-00) with each 4x:
D d.1 Protection caps 20 x 30 mm, d.2 Hexagon screws M8 x 35 mm, d.3 Wing
D nuts M6, d.4 Hexagon nuts M8, d.5 Floor adjustment screws M8 x 27 mm
SETUP INSTRUCTIONS
See reverse side (chapter 1- 8)
DIMENSIONS
Table top: width 1100 mm x depth 450 mm
height: 610 - 1000 mm (10 steps, see chapter 3)
Set up dimension: W x D min. 1110 x 325 mm / max. 1260 x 380 mm
FAULT-FINDING (F) and REPAIR (R)
F: Stand wobbles on the floor
F: B: Check whether the feets are adjusted equally, adjust set screws, check floor
F: Stand is not stable
F: B: Tighten the clamping screws of the U-profile feets
F: DJ equipment wobbles on the table top
F: B: Check table top for damage or unevenness
F: B: Check bottom of the equipment for missing rubber feet, etc.
CHECK, MAINTENANCE, CLEANING
- For maintenance work pay attention to possible risks (risk of bumping into the table,
- wedging/pinching)
- To care for the product, use a damp cloth and a non-abrasive cleaning agent.
TECHNICAL DATA / SPECIFICATIONS
Table top: MDF, with visible cover, black
Steel tubes, struts, sheets: powder coated black
Material
Screws, nuts: galvanized
Base plate, safety guards: PA, black
Load-bearing
max. 80 kg
capacity
Dimensions Width: 905 mm, Depth: 260 mm, Height: 600 - 1000 mm
Weight 15.5 kg
Box 1133 x 490 x 132 mm, gross weight: 17.7 kg
Accessories 12166 Rear tray
(optional) 12167 Side tray

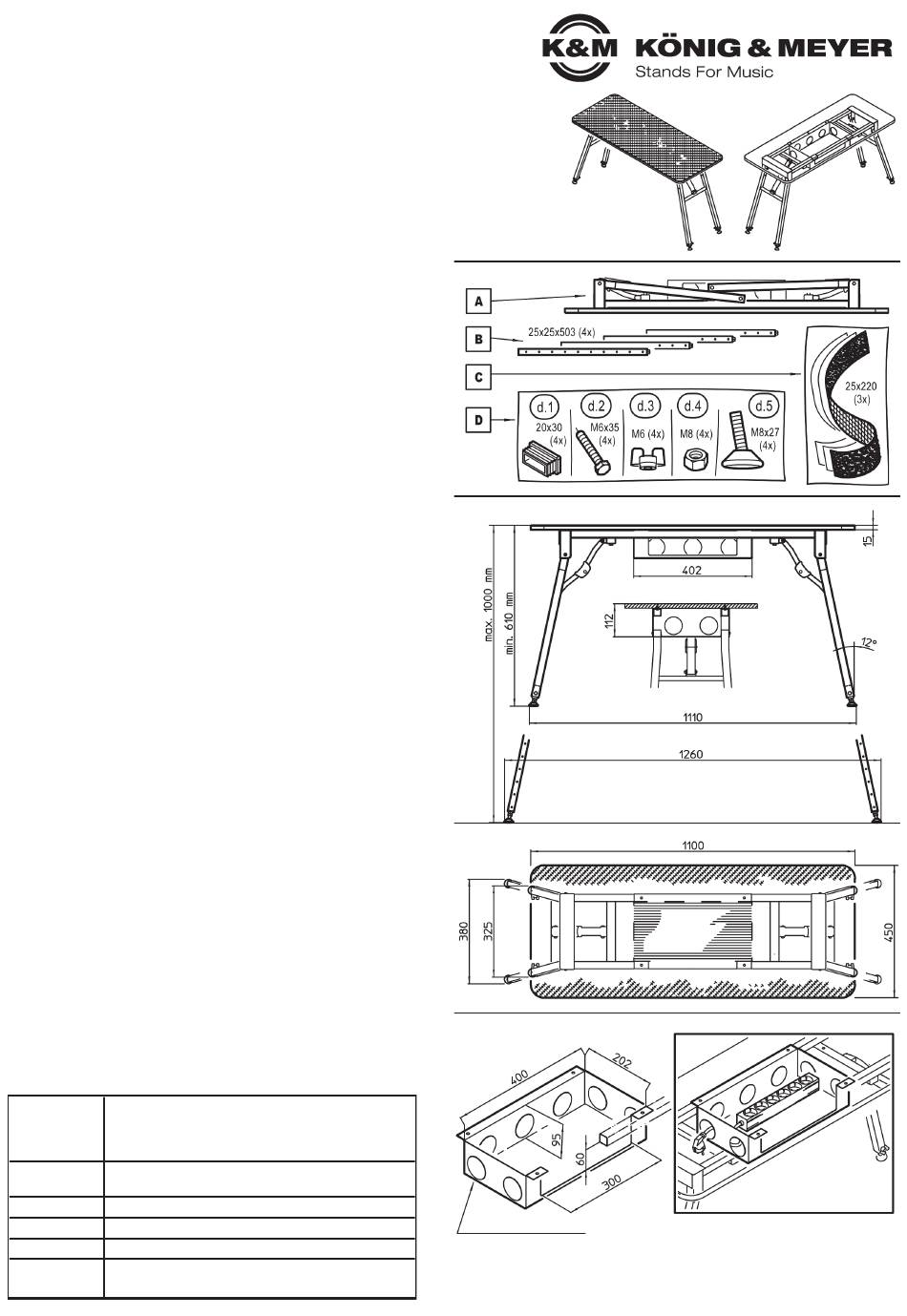

COMPONENTS
FOLDING STAND
TABLE TOP
Top view
CABLE ORGANIZER
- Available space
- Openings
7 openings for cables ø 60 mm
Example
