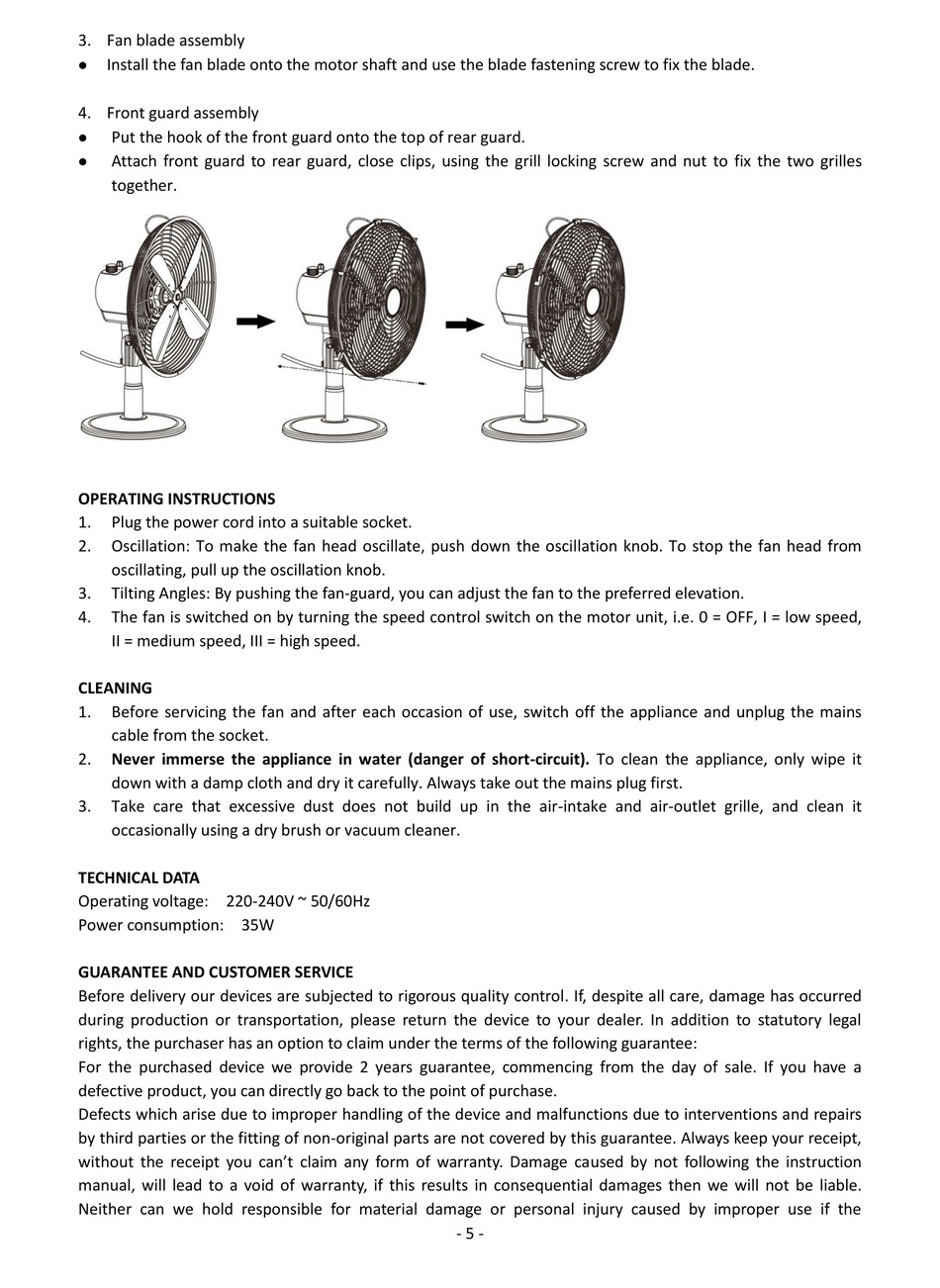

3. Fan blade assembly
Install the fan blade onto the motor shaft and use the blade fastening screw to fix the blade.
⚫
4. Front guard assembly
Put the hook of the front guard onto the top of rear guard.
⚫
Attach front guard to rear guard, close clips, using the grill locking screw and nut to fix the two grilles
⚫
together.
OPERATING INSTRUCTIONS
1.
Plug the power cord into a suitable socket.
2.
Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from
oscillating, pull up the oscillation knob.
3.
Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.
4.
The fan is switched on by turning the speed control switch on the motor unit, i.e. 0 = OFF, I = low speed,
II = medium speed, III = high speed.
CLEANING
1.
Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains
cable from the socket.
2.
Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it
down with a damp cloth and dry it carefully. Always take out the mains plug first.
3.
Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it
occasionally using a dry brush or vacuum cleaner.
TECHNICAL DATA
Operating voltage: 220-240V ~ 50/60Hz
Power consumption: 35W
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal
rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a
defective product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs
by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,
without the receipt you can't claim any form of warranty. Damage caused by not following the instruction
manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.
Neither can we hold responsible for material damage or personal injury caused by improper use if the
- 5 -
