MITRE SAW STAND
Introduction
To get the most out of your new mitre saw
stand, please read this instruction manual
before use. Please also save the instructions
in case you need to refer to them at a later
date.

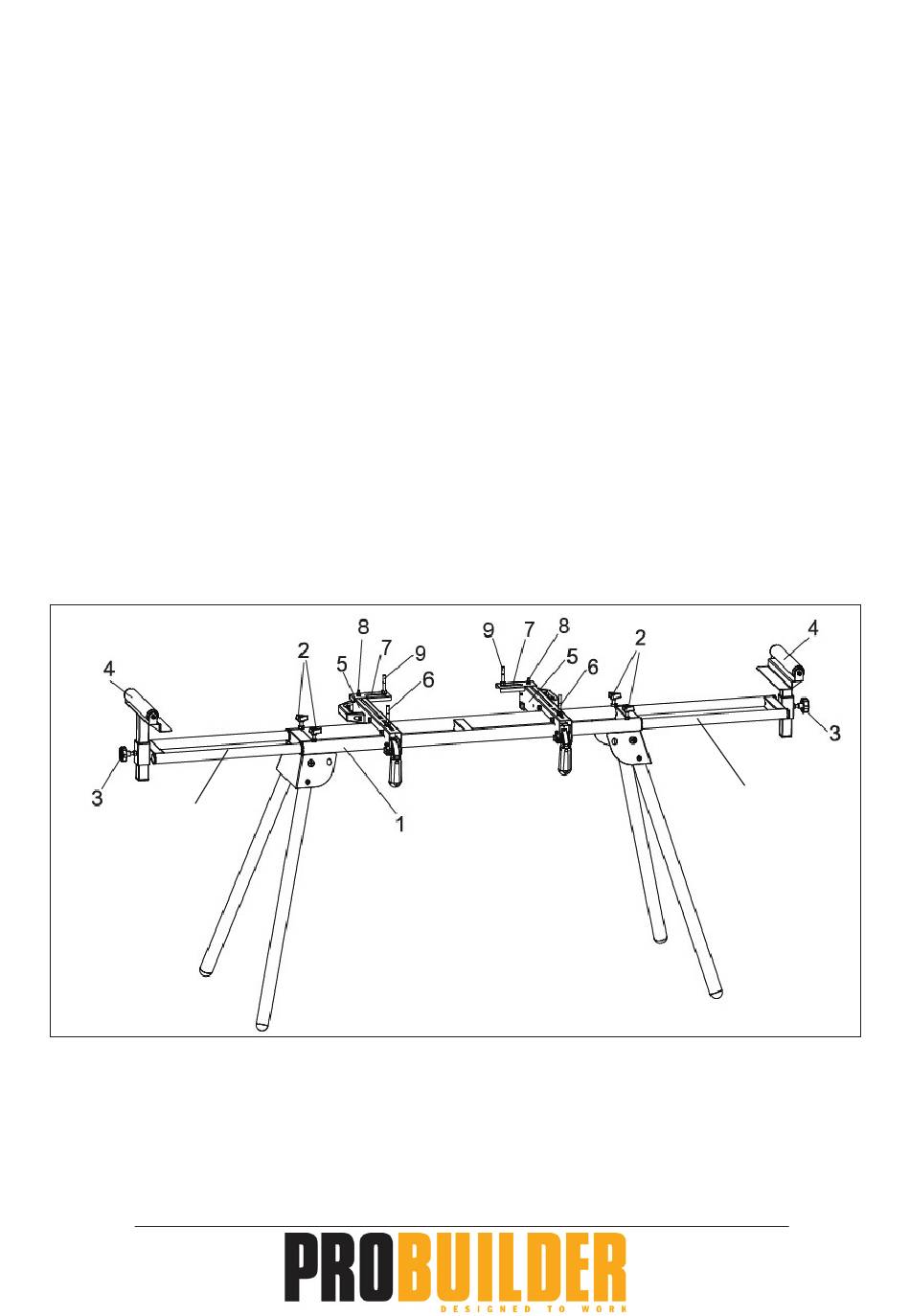

Main components

1. Frame, 1 pcs.
2. Length adjustment screw, 4 pcs.
3. Height adjustment screw, 2 pcs.
4. Adjustable workpiece support, 2 pcs.
5. Saw mounting rail, 2 pcs.
10
18
6. Bolt, nut and washer M6x60, 4 pcs.
7. Bracket, 2 pcs.
8. Bolt, nut and washer M6x20, 2 pcs.
9. Bolt, nut and washer M8x60, 2 pcs.
10. Stand extension, 2 pcs.

Technical data

Working length:
Working height for
workpiece supports:
Stand height:
Diagonal tube measurement, legs: Ø38 mm
With adjustable workpiece supports
Max. load:
The legs can be folded inwards to make the
mitre saw stand easier to store.
118.5-202.7 cm
88.0-101.2 cm
81.7 cm
150 kg
