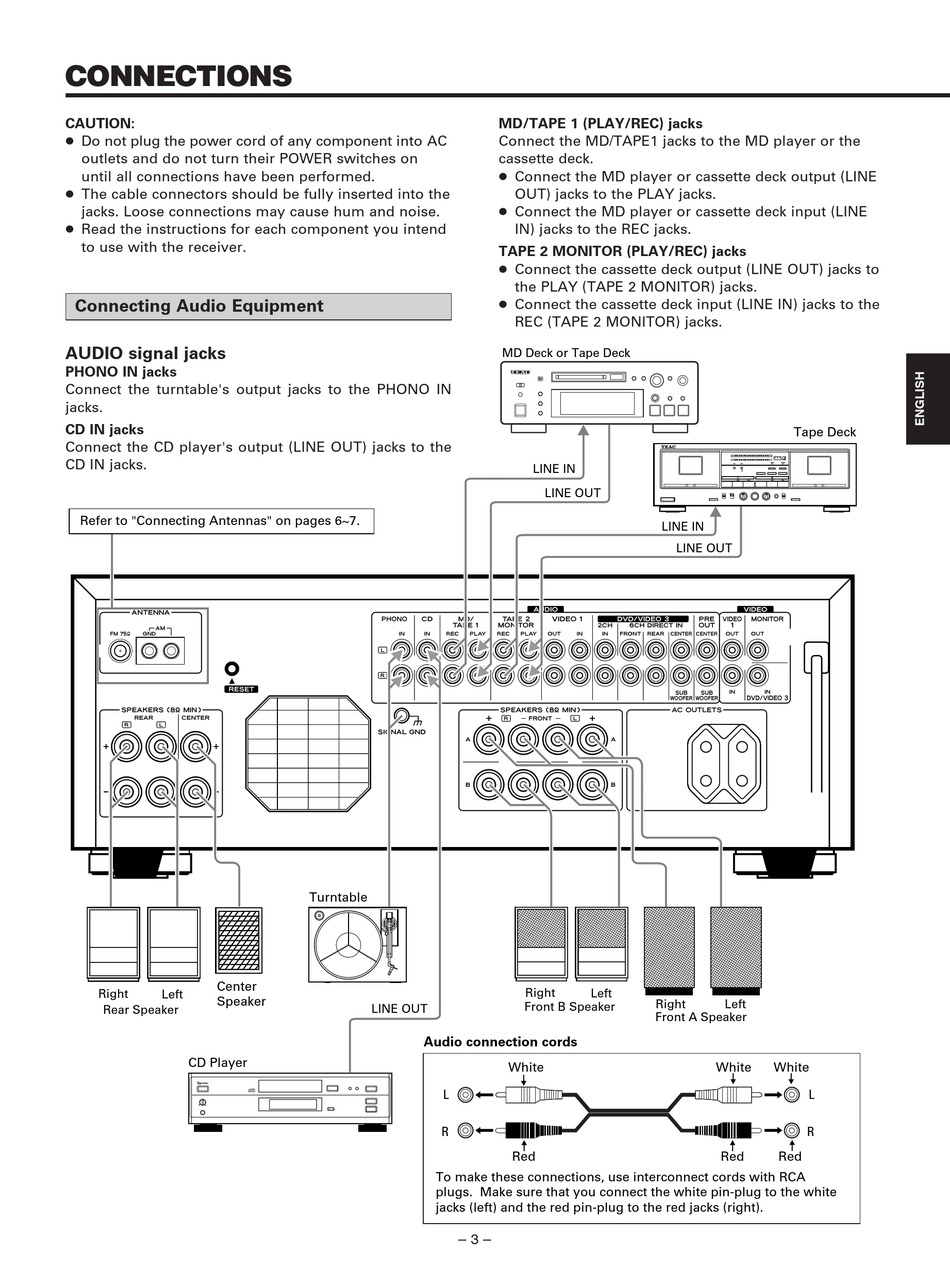

CONNECTIONS

CAUTION:
... Do not plug the power cord of any component into AC
outlets and do not turn their POWER switches on
until all connections have been performed.
... The cable connectors should be fully inserted into the
jacks. Loose connections may cause hum and noise.
... Read the instructions for each component you intend
to use with the receiver.

Connecting Audio Equipment

AUDIO signal jacks
PHONO IN jacks
Connect the turntable's output jacks to the PHONO IN
jacks.
CD IN jacks
Connect the CD player's output (LINE OUT) jacks to the
CD IN jacks.
Refer to "Connecting Antennas" on pages 6~7.
Center
Right
Left
Speaker
Rear Speaker
CD Player
+ –
Turntable
LINE OUT
Audio connection cords
L
R
To make these connections, use interconnect cords with RCA
plugs. Make sure that you connect the white pin-plug to the white
jacks (left) and the red pin-plug to the red jacks (right).
– 3 –
MD/TAPE 1 (PLAY/REC) jacks
Connect the MD/TAPE1 jacks to the MD player or the
cassette deck.
... Connect the MD player or cassette deck output (LINE
OUT) jacks to the PLAY jacks.
... Connect the MD player or cassette deck input (LINE
IN) jacks to the REC jacks.
TAPE 2 MONITOR (PLAY/REC) jacks
... Connect the cassette deck output (LINE OUT) jacks to
the PLAY (TAPE 2 MONITOR) jacks.
... Connect the cassette deck input (LINE IN) jacks to the
REC (TAPE 2 MONITOR) jacks.
MD Deck or Tape Deck
LINE IN
LINE OUT
LINE IN
LINE OUT
Right
Left
Right
Front B Speaker
Front A Speaker
White
Red
Tape Deck
Left
White White
L
R
Red Red
