Tetratec EX 400 Gebrauchsanweisung Seite 20

OUT =
Drainage
5

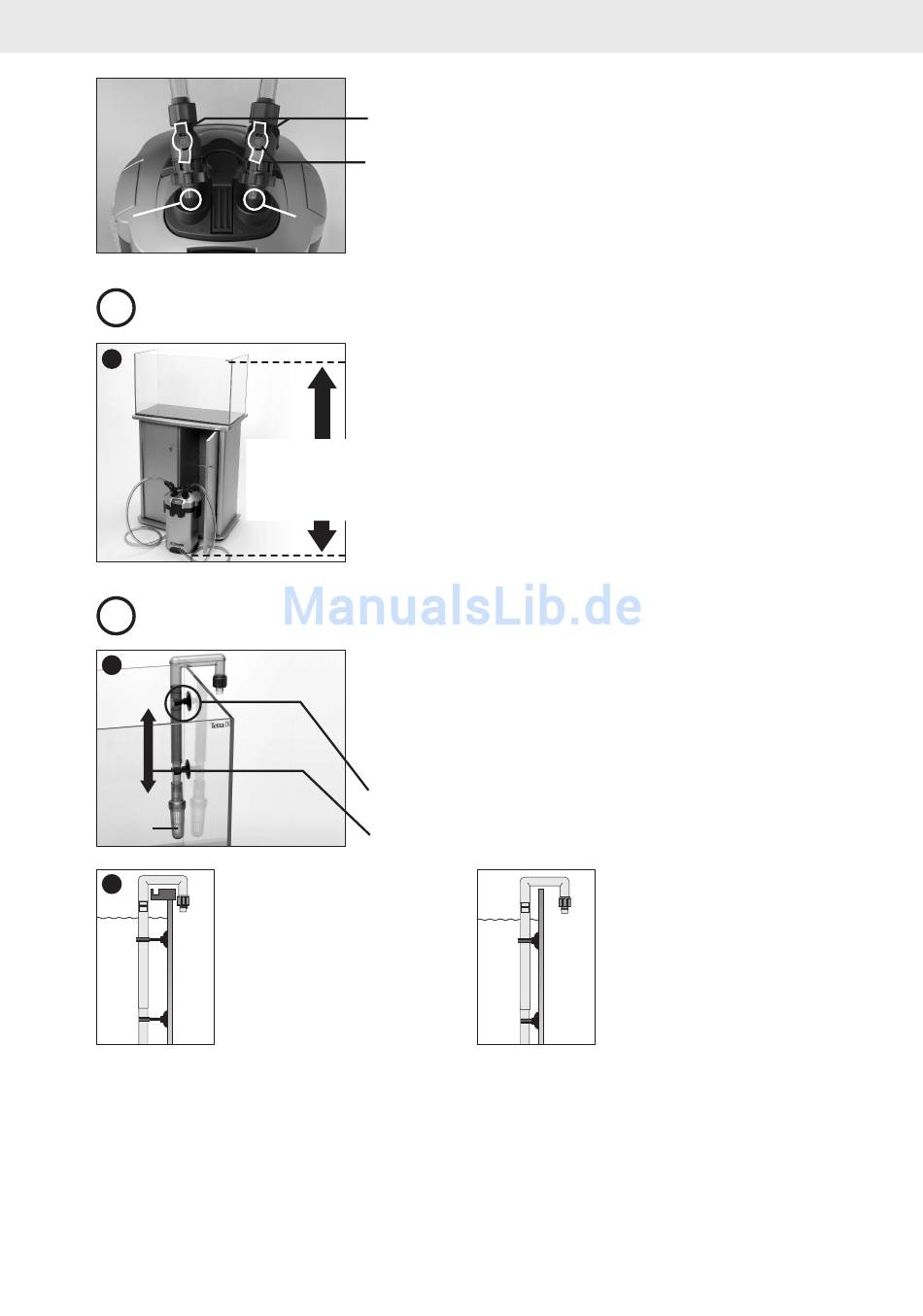

Installation Positioning of the Filter
10
6
Installing the Water Intake Pipe
11
Strainer
12
a) Example of use
20
Set up
Attach the water hoses to the valves.
Firmly insert each hose into the
adaptor unit and tighten the screws.
Turn the valves in the direction
shown in the diagram.
IN =
Intake
Note: Use only hoses supplied by the manufacturer.
Once the hoses are properly attached, ensure the distance between
the bottom of the filter and the surface of the water is within the
range shown on the illustration.
EX 400: 40 - 150 cm
EX 600: 50 - 150 cm
EX 700: 60 - 150 cm
EX 1200: 80 - 150 cm
EX 2400: 100 - 150 cm
Connect the water intake pipe to the strainer and after fixing the
suction cup clips use them to affix the unit to the inner wall of the
tank.
The filter comes with both long and short clips. Which clip to use
will depend on the shape/size of the top part of the tank wall.
Suction Cup Clips
Use "large" sized clips for the upper part (thicker pipe) of the flexible pipes.
Adjust the flexible pipe according to the depth of the tank.
Long Clip
b) Example of use
Short Clip
