Tetratec EX 400 Gebrauchsanweisung Seite 19

2

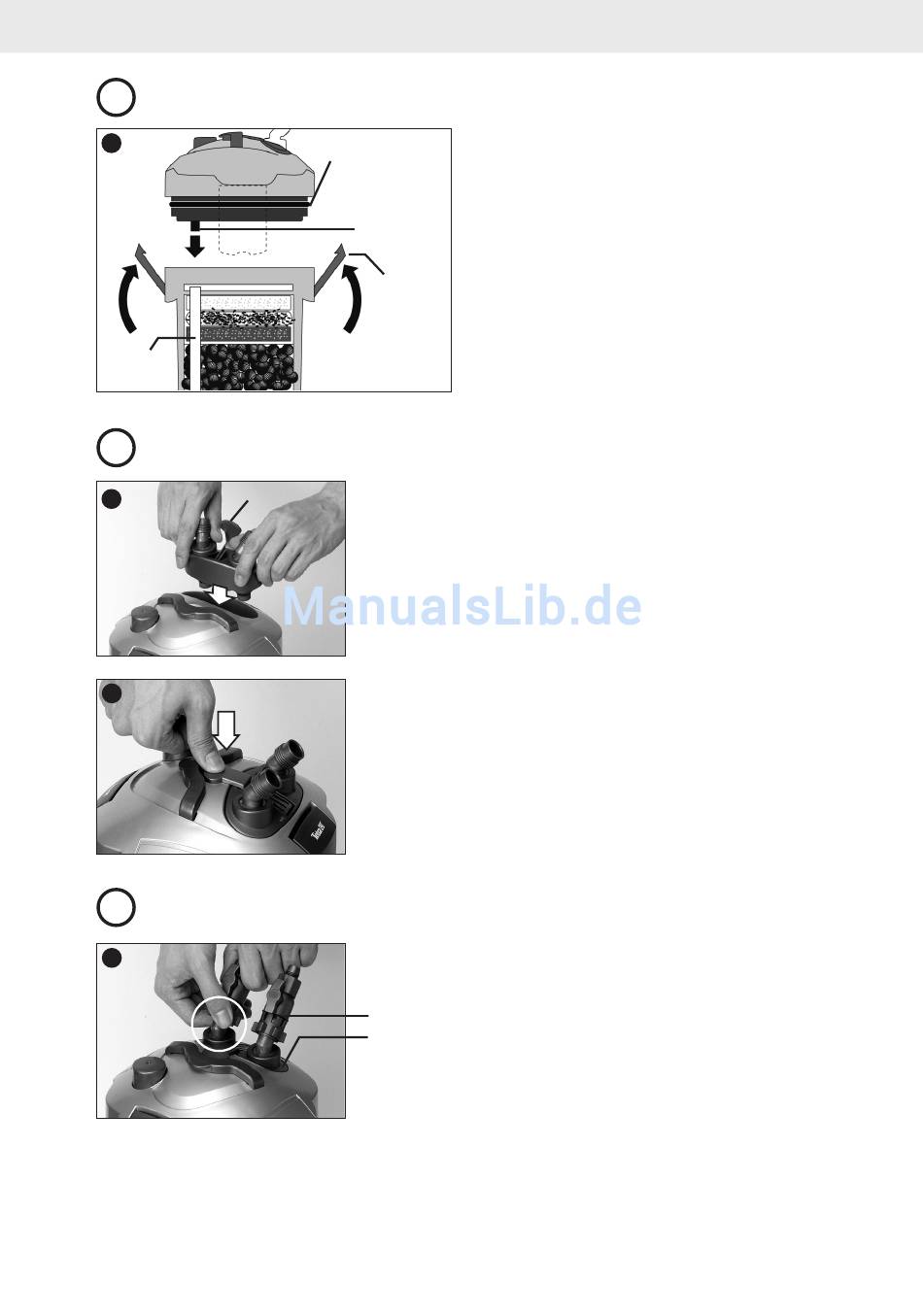

Setting the Motor Head to the Filter Case
5
Connection
Pipe
3
Assembling the Motor Head Hose Adaptor Unit
Central Lever
6
7
4
Assembling the Water Hoses
8
Set up
Take care to assemble the parts properly.
Filter Case O-ring
Ensure that there is no dirt or foreign substances
on the filter case or O-ring of the motor head.
To make assembly easier, you may need to grease
Water intake
the seal ring with a standard lubricant, such as
nozzle
Vaseline.
Locking Place the motor head on the filter case. Ensure that
Buckle
the intake nozzle of the motor head and the
connector pipe of the filter media containers are
aligned.
Resecure the lift buckles to align the motor head
with the filter case. Then close the locking buckles.
Attach the hose adaptor unit to the motor head with the central
lever raised. (The hose adaptor unit cannot be attached while the
central lever is down!)
After attaching the hose adapter unit to the motor head, push the
central lever down to the center of the motor head to fix it in place.
Attach the valves to the hose adapter unit.
Screw the valves onto the hose adaptor unit.
Valve
Hose
adapter
unit
19
