Installation

Please also consider the mounting instructions of the
respective transmitter when installing the system.

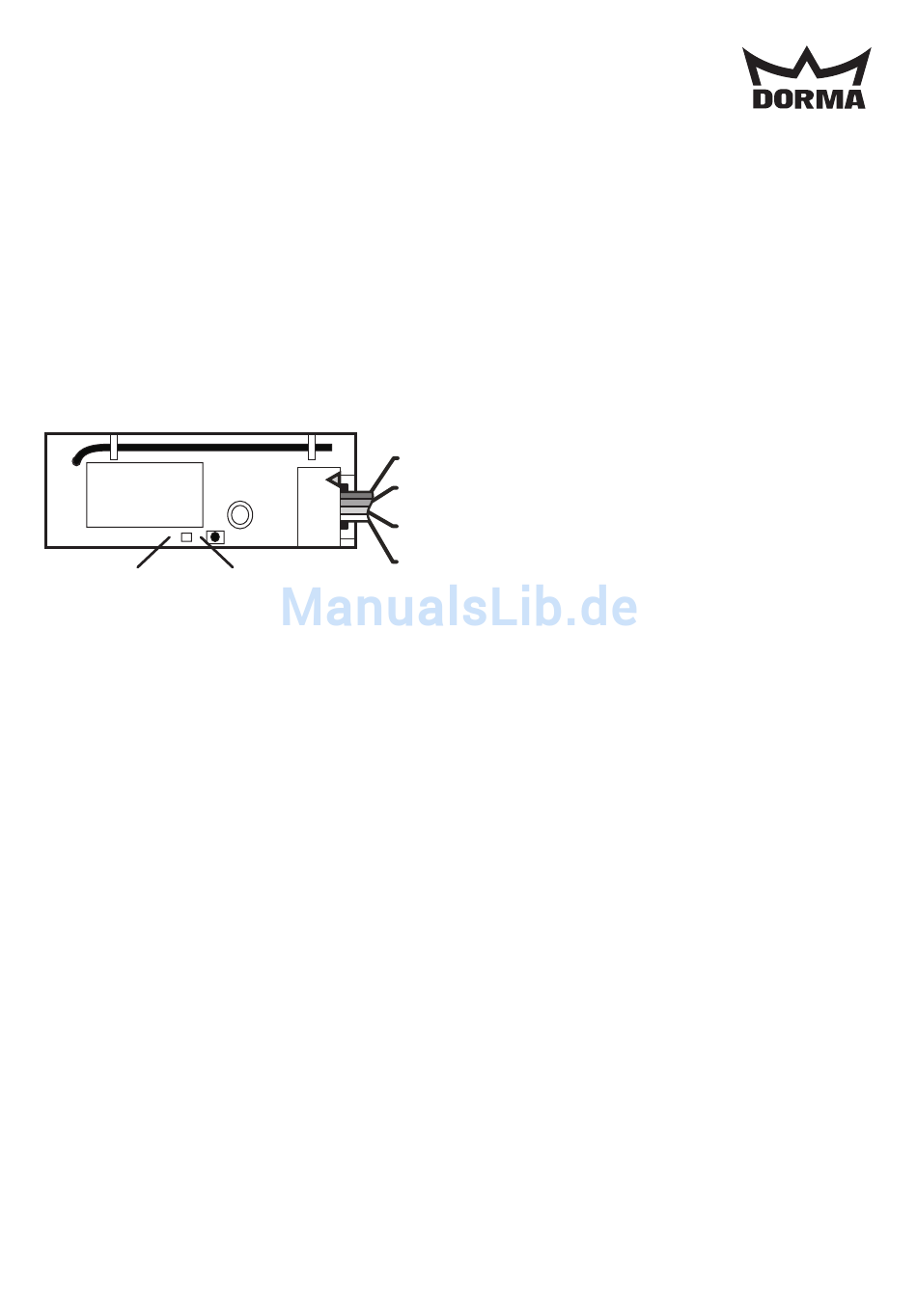

Receiver BRC-R
(A)
Readily assembled 4-wire ribbon cable (on one side) with
a width of 5.1 mm
See above-picture for wire assignment
Blue Earth
Violet VCC + 24 VDC
Grey
White Transistor switch for
(B)
Earth
triggering the micro-controller
