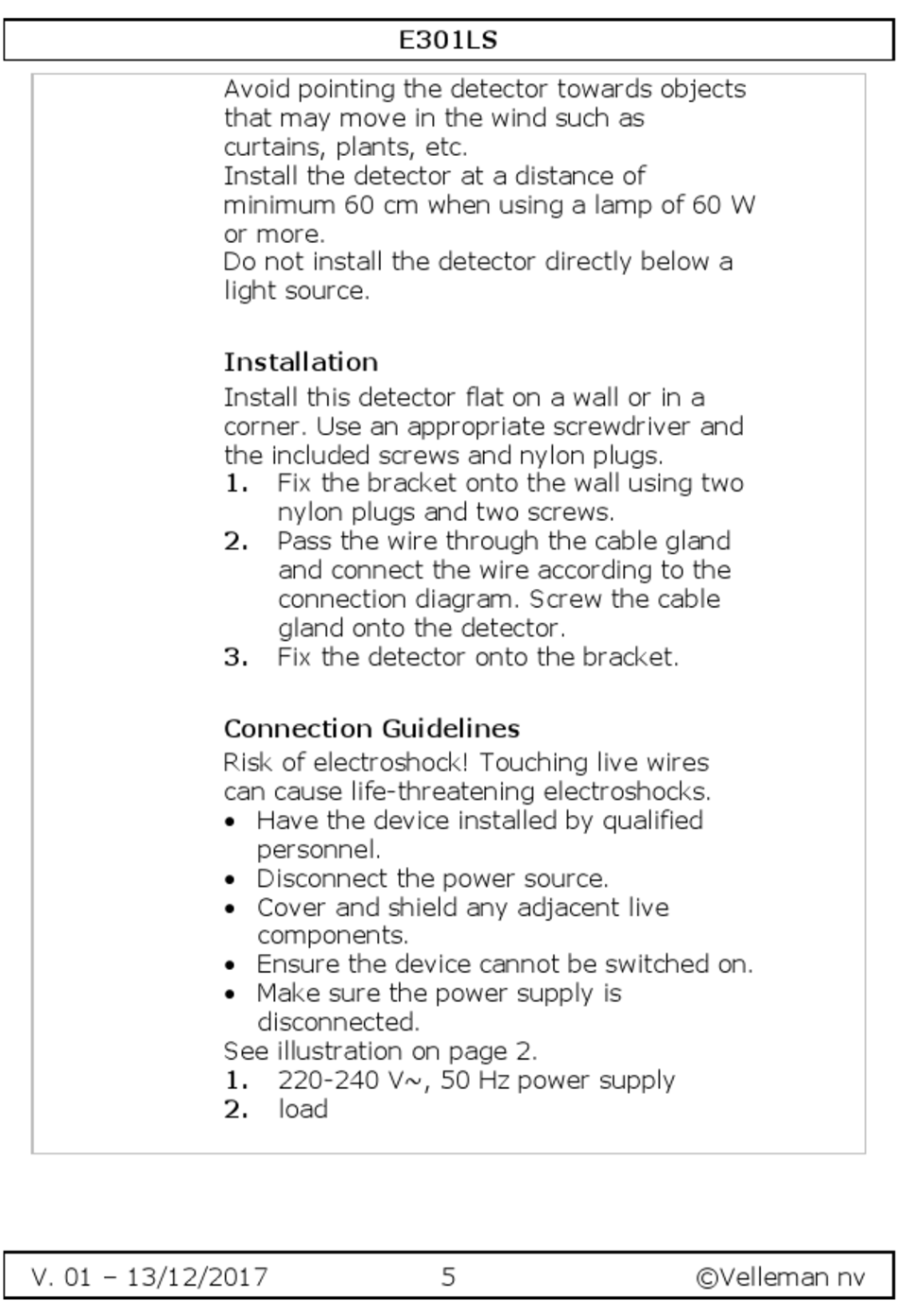

Perel E301LS Bedienungsanleitung Seite 5

V. 01 – 13/12/2017
Avoid pointing the detector towards objects
that may move in the wind such as
curtains, plants, etc.
Install the detector at a distance of
minimum 60 cm when using a lamp of 60 W
or more.
Do not install the detector directly below a
light source.
Installation
Install this detector flat on a wall or in a
corner. Use an appropriate screwdriver and
the included screws and nylon plugs.
1. Fix the bracket onto the wall using two
nylon plugs and two screws.
2. Pass the wire through the cable gland
and connect the wire according to the
connection diagram. Screw the cable
gland onto the detector.
3. Fix the detector onto the bracket.
Connection Guidelines
Risk of electroshock! Touching live wires
can cause life-threatening electroshocks.
 Have the device installed by qualified
personnel.
 Disconnect the power source.
 Cover and shield any adjacent live
components.
 Ensure the device cannot be switched on.
 Make sure the power supply is
disconnected.
See illustration on page 2.
1. 220-240 V~, 50 Hz power supply
2. load
E301LS
5 ©Velleman nv
