Fingerprint door handle DoorAccess PRO
Item number: DNT000014
Please read these operating instructions completely before installation and commissioning and keep
the operating instructions for future reference. If you give the unit to other persons for use, also hand
over these operating instructions.
1. Function
The fingerprint door handle DoorAccess PRO allows easy access via the biometric access
feature „fingerprint" as well as via numerical code. For increased access security, both types
of access can be combined. The device can manage up to 255 accesses. The fingerprint
door handle also contains the switching relay for releasing the door lock supplied. The inside
door handle also allows the door to be opened at any time (emergency function), the outside
door handle can alternatively be operated with a mechanical key.
• Robust fingerprint door handle with integrated switching relay and supplied lock insert
• Capacitive fingerprint sensor, touch keypad
• Digit code access with 4 to 6 digits, input field backlit,
with automatic switch-off after 5 s
• For up to 255 accesses (100 fingerprint + 155 PIN)
• Access via fingerprint, numeric code or combined possible
• Multi-colour status display, internal signal transmitter
• Mains-independent battery operation, battery life up to 6 months
(at 30 actuations/day), low battery warning
• USB port for emergency power supply, e. g. for a powerbank
• Emergency opening option outside via mechanical key
2. Intended use, scope of delivery
The DoorAccess PRO is intended for use as a general access control device. It is intended
purely for indoor use. We accept no liability for consequential damage resulting from
non-observance of these rules of use and the operating instructions; warranty claims are
also void. This also applies to conversions and modifications.
Scope of delivery:
• Fingerprint door handle DoorAccess PRO
• Lock insert
• 2x mechanical key
• Mounting material
• Operating instructions
• Screwdriver
3. Operating, maintenance and safety instructions
Warning
Used to mark safety instructions or to draw attention to particular
hazards and risks.
Note
Used to indicate additional information or important notes.
• For safety and approval reasons (CE), unauthorised conversion and/or modification of
the product is not permitted.
• Do not expose the unit to moisture, vibrations, constant heat, extreme cold, strong
electromagnetic fields or mechanical stress.
• Observe all instructions in the operating instructions for connecting voltages. Incorrect
or reversed voltages will destroy the unit.
• Do not leave the packaging material lying around carelessly, plastic foils/ bags, poly-
styrene parts, etc., could become a dangerous toy for children.
• If the unit has been damaged, take the unit out of operation and contact our service
department.
We accept no liability for damage to property or personal injury caused by improper
handling or failure to observe the safety instructions and the operating instructions.
In such cases, all warranty claims are void! We accept no liability for consequential
damage.
Do not open the unit, attempt to repair it or make any modifications or changes –
this will invalidate the warranty. We accept no liability for consequential damage.
Operating instructions

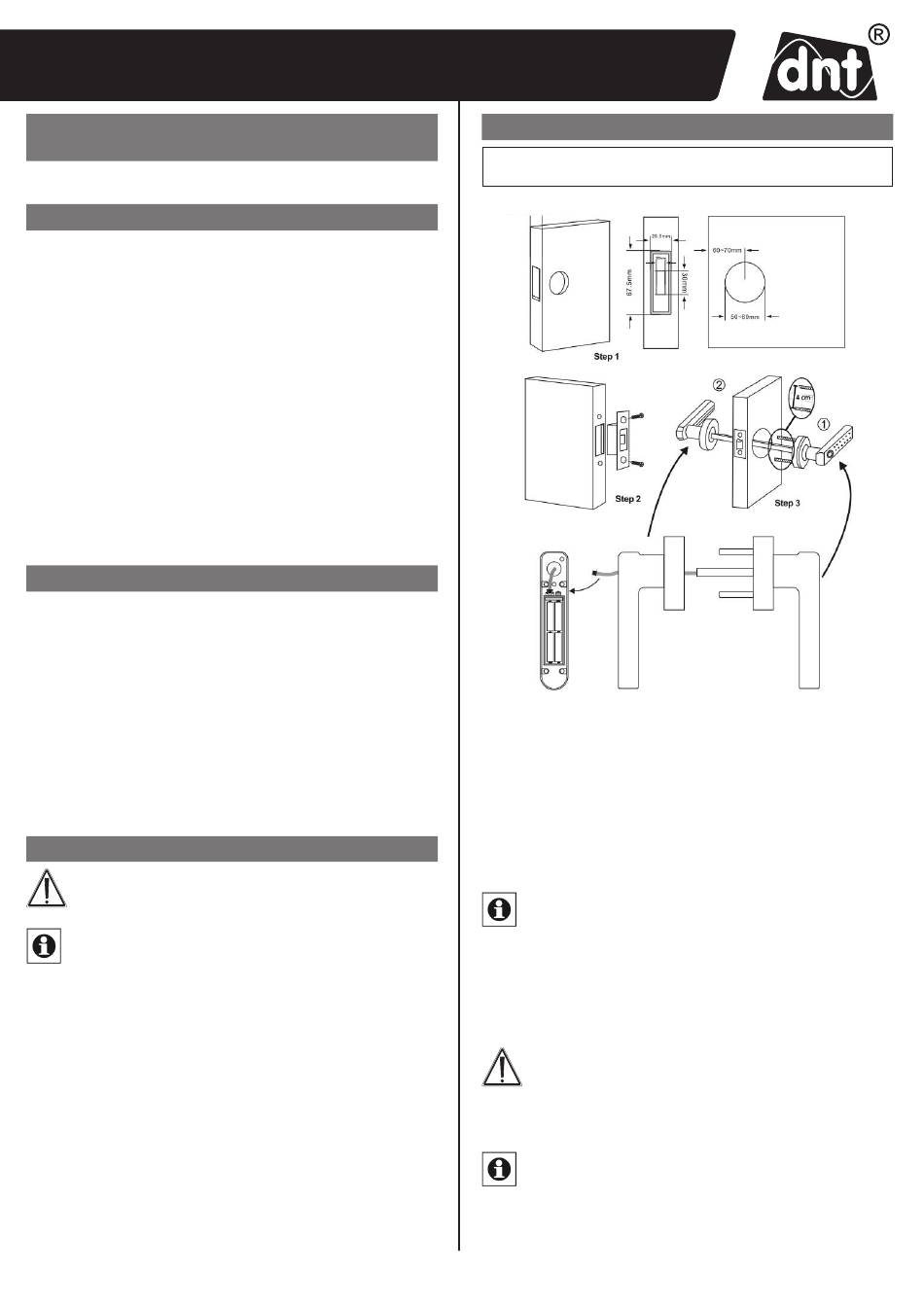

4. Installation/assembly

Note: In most cases you can continue to use your existing lock.
Please check the drill hole spacing of your door. For DoorAccess PRO this is 4 cm.
Door leaf thickness: 40–50 mm
• The cut-out for the lock insert must correspond to the dimensions shown in Step 1.
• Insert the lock insert sideways and fasten it with the supplied countersunk wood screws
(Step 2).
• Screw the threaded bolts supplied into the threads of the outer door handle and the
threaded extensions onto them. You can then use these to adjust the screw connection
to the thickness of the door leaf.
• Guide the cable from the outer door handle through the supplied drive square and insert
it into the outer door handle (push it in as far as it will go).
• Insert the pre-assembled outside door handle into the door leaf (Step 3, (1)).
• Open the cover of the interior door handle by loosening the retaining screw on the handle
end and push the cover open by inserting the screwdriver into the screw opening and
gently levering the screwdriver upwards.
Note: Only open the cover via the screw opening as described here.
Do not lever out the cover, e.g. with a screwdriver or knife – this will
damage the cover.
• Now plug the cable connector into the corresponding socket.
If necessary, use slim assembly pliers or tweezers for this purpose.
• Make sure that the plug is inserted with the correct polarity. It can only be inserted in
one direction without mechanical resistance. The three raised knobs must be on the
open side of the socket.
Warning: Only insert the plug when there are no batteries in the battery
compartment! In case of an accidentally incorrectly inserted plug, the
unit may be damaged!
• Then place the inner door handle on the drive square and screw the inner door handle
onto the threaded bolt (Step 3, (2)) with the threaded screws provided.
Note: To do this, please remove the battery holder in order to tighten the
screw below the handle through the hole that is now exposed. Then reinsert
the battery holder.
• Insert four micro-batteries (AAA/LR03, alkaline) into the battery compartment with the
correct polarity according to the polarity markings. The unit confirms correct insertion
with a short signal tone.
