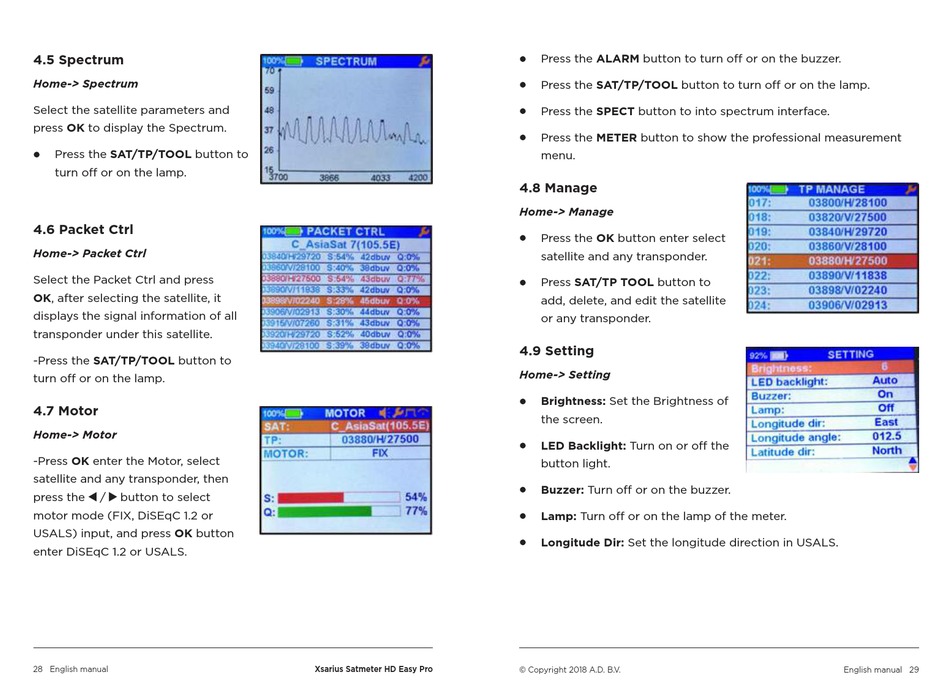

4.5 Spectrum
Home-> Spectrum
Select the satellite parameters and
press OK to display the Spectrum.
Press the SAT/TP/TOOL button to
● ●
turn off or on the lamp.

4.6 Packet Ctrl

Home-> Packet Ctrl
Select the Packet Ctrl and press
OK, after selecting the satellite, it
displays the signal information of all
transponder under this satellite.
-Press the SAT/TP/TOOL button to
turn off or on the lamp.

4.7 Motor

Home-> Motor
-Press OK enter the Motor, select
satellite and any transponder, then
press the / button to select
motor mode (FIX, DiSEqC 1.2 or
USALS) input, and press OK button
enter DiSEqC 1.2 or USALS.
28 English manual Xsarius Satmeter HD Easy Pro
Press the ALARM button to turn off or on the buzzer.
● ●
Press the SAT/TP/TOOL button to turn off or on the lamp.
● ●
Press the SPECT button to into spectrum interface.
● ●
Press the METER button to show the professional measurement
● ●
menu.

4.8 Manage

Home-> Manage
Press the OK button enter select
● ●
satellite and any transponder.
Press SAT/TP TOOL button to
● ●
add, delete, and edit the satellite
or any transponder.

4.9 Setting

Home-> Setting
Brightness: Set the Brightness of
● ●
the screen.
LED Backlight: Turn on or off the
● ●
button light.
Buzzer: Turn off or on the buzzer.
● ●
Lamp: Turn off or on the lamp of the meter.
● ●
Longitude Dir: Set the longitude direction in USALS.
● ●
