Alphacool International GmbH

Assembly Eisbecher 2 Aurora Glas

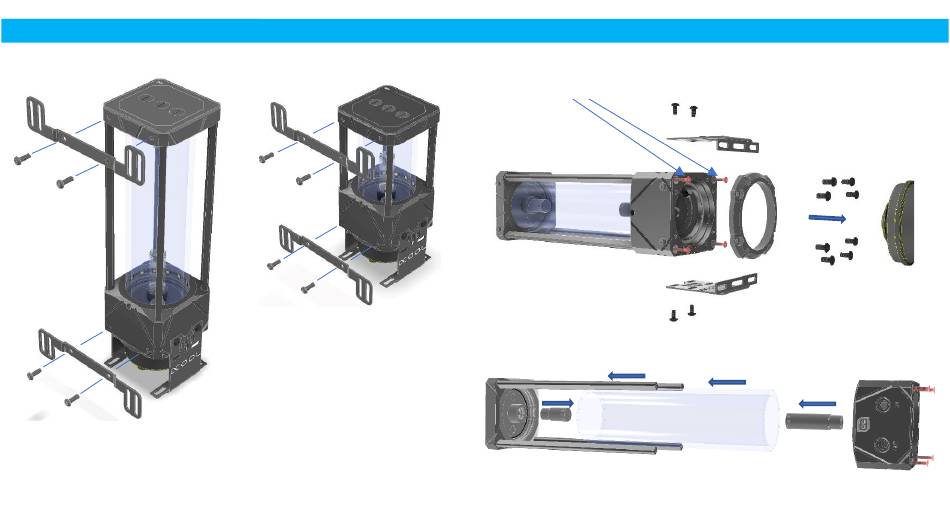

Bracket assembly:
All manuals and user guides at all-guides.com
Eisbecher 2 Aurora Glas
To mount the expansion tank, first screw
the brackets to the mounting brackets with
the four M4x12 screws. You can then
attach the system to any 120mm or
140mm fan and radiator space.
Rising pipe positions:
Remove the pump and stand bracket, unscrew the holder screws marked in red.
Carefully pull out the cover with linkage and then the glass tube. Replace the
desired riser tube. The riser tube is plugged in.
English
11
