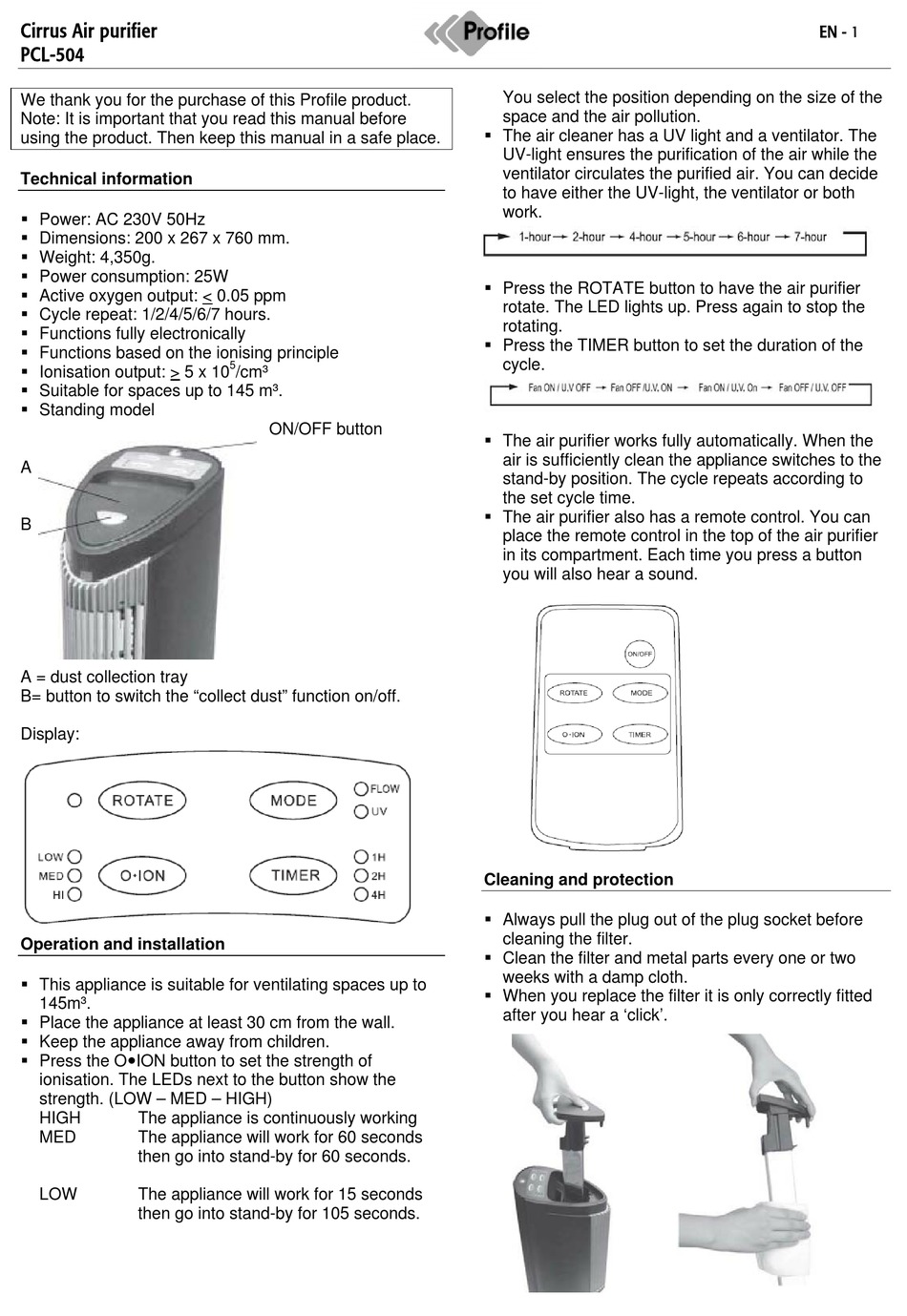

Cirrus Air purifier
PCL-504
We thank you for the purchase of this Profile product.
Note: It is important that you read this manual before
using the product. Then keep this manual in a safe place.
Technical information
Power: AC 230V 50Hz
Dimensions: 200 x 267 x 760 mm.
Weight: 4,350g.
Power consumption: 25W
Active oxygen output: < 0.05 ppm
Cycle repeat: 1/2/4/5/6/7 hours.
Functions fully electronically
Functions based on the ionising principle
Ionisation output: > 5 x 10
Suitable for spaces up to 145 m³.
Standing model
A
B
A = dust collection tray
B= button to switch the "collect dust" function on/off.
Display:
Operation and installation
This appliance is suitable for ventilating spaces up to
145m³.
Place the appliance at least 30 cm from the wall.
Keep the appliance away from children.
Press the OION button to set the strength of
ionisation. The LEDs next to the button show the
strength. (LOW – MED – HIGH)
HIGH
The appliance is continuously working
MED
The appliance will work for 60 seconds
then go into stand-by for 60 seconds.
LOW
The appliance will work for 15 seconds
then go into stand-by for 105 seconds.
5
/cm³
ON/OFF button
You select the position depending on the size of the
space and the air pollution.
The air cleaner has a UV light and a ventilator. The
UV-light ensures the purification of the air while the
ventilator circulates the purified air. You can decide
to have either the UV-light, the ventilator or both
work.
Press the ROTATE button to have the air purifier
rotate. The LED lights up. Press again to stop the
rotating.
Press the TIMER button to set the duration of the
cycle.
The air purifier works fully automatically. When the
air is sufficiently clean the appliance switches to the
stand-by position. The cycle repeats according to
the set cycle time.
The air purifier also has a remote control. You can
place the remote control in the top of the air purifier
in its compartment. Each time you press a button
you will also hear a sound.
Cleaning and protection
Always pull the plug out of the plug socket before
cleaning the filter.
Clean the filter and metal parts every one or two
weeks with a damp cloth.
When you replace the filter it is only correctly fitted
after you hear a 'click'.
EN - 1
