EN - Using your own desktop
There's no one right way to position your frame on your
desktop but there are a few things you'll want to keep in mind.
Generally speaking, the desktop should be centered over the
frame side-to-side, and positioned slightly forward of center
(towards the user) front-to-back.

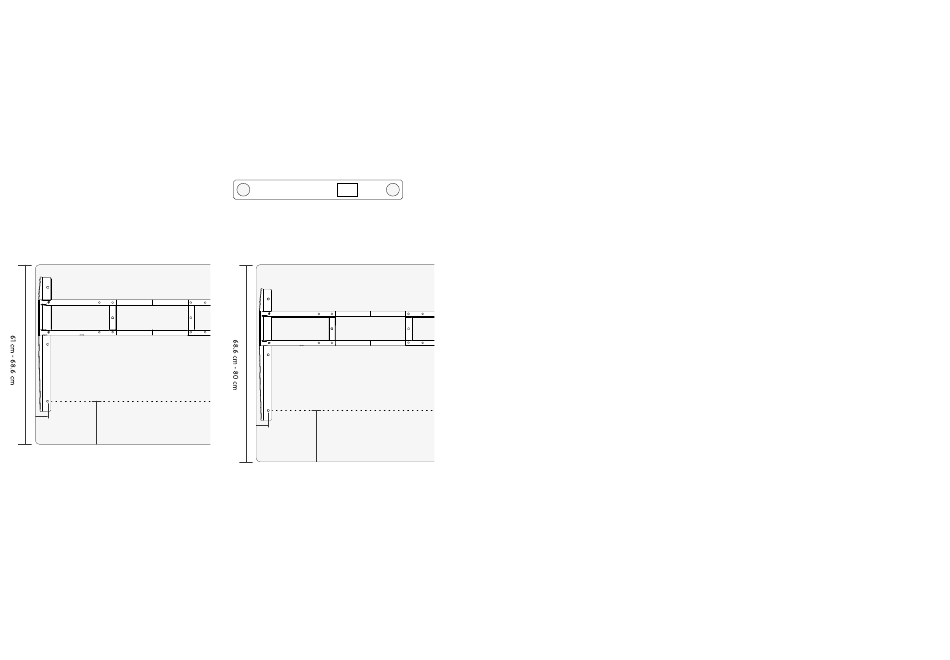

First, determine if your Jarvis has a short or long foot.
Short Foot: Engraved with YQ-140
Recommended for desktops 61 cm-68.6 cm deep.
Long Foot: Engraved with YQ-141
Recommended for desktops 68.6 cm-80 cm deep.
Short Foot
5 cm
14 cm
The maximum distance from the front desktop edge to the
first hole in the Side Bracket is 14 cm.
Bottom view of Foot:
YQ-14X
YQ-141
Long Foot
5 cm
5 cm
17.1 cm
The maximum distance from the front desktop edge to the
first hole in the Side Bracket is 17.1 cm.
Side-to-side position
In our experience, desks have better lateral stability the further
apart the legs are. We position the screw holes for the Side
Brackets 5 cm in from the sides of the desktop. This leaves about
2.5 cm of desktop overhang and maximizes lateral stability.
Placing the holes at least 5 cm in from the sides lowers the
chance that your desktop will split during drilling.
Depending on the rigidity and strength of your desktop material
you can leave more of it overhanging the Side Brackets. For
example, on our 198.1 cm tops the Side Bracket holes are 12.7 cm
in from the edge with 10.2 cm of overhang.
Laying it out
The easiest way to position your own desktop on Jarvis is to
partially assemble the frame and use it as a guide. This frame
assembly is easier to maneuver than the entire frame and will
allow you to see exactly how things line up and where all of the
holes should be.
1. Lay your desktop on a padded workspace with the
underside facing up, and the front of the desktop
towards you.
2. Without the Lifting Columns, attach the Side Brackets
to the Frame Ends as shown in the complete assembly
instructions.
3. Slide the Center Rails into the Frame Ends.
4. Position the frame assembly on the underside of your
desktop, with the screw holes in the Side Brackets 5 cm or
more from the side edges of the top, and the front-most
hole appropriate depth from the front (user-facing) edge
of the top.
5 cm
