Seite 3
You are solely responsible for being aware of all relevant regulations and using EcoFlow products in a way that is compliant. EcoFlow RIVER Max ( Hereinafter referred to as RIVER Max )...
1. Specifications General Info Net Weight Approximately lbs(7.7kg) Dimensions 11.4in x 7.3in x 9.3in(28.9 x 18.4 x 23.5 cm) Capacity 576Wh 28.8V Wi-Fi(2.4G) Frequency range: 2412-2472MHz Maximum output power: 15.06dBm Output Ports Pure Sine Wave, 600W total (Surge 1200W), AC (x2) 230V~ (50Hz/60Hz) Max Device(s) Power Supported by X-Boost 1800W...
6. Do not use unofficial components or accessories. If you need to replace any components or accessories, please visit official EcoFlow channels to check relevant information. 7. When using the product, please strictly follow the operating environment temperature specified in this user manual.
ensure that the power does not run out. 18. When in use, power supply products will generate electromagnetic fields, which are likely to affect the normal operation of medical implants or personal medical equipment such as pacemakers, cochlear implants, hearing aids, defibrillators etc. If these types of medical equipment are being used, please contact the manufacturer to inquire about any restrictions on the use of such equipment.

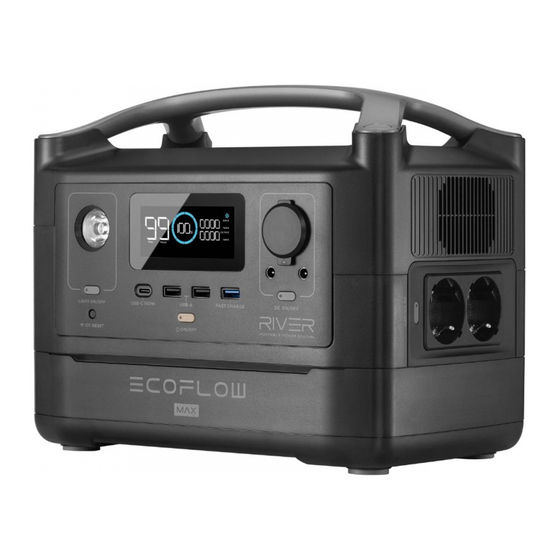

3. Getting Started 3.1 Product Details LCD Screen Car Outlet DC5521 Output Port USB-A Output Port LED Light DC Power Button ON/OFF Button USB-A Fast Charge Output Port Ambient Light IOT Button Main Power Button USB-C 100WOutput Port Ventilation Fan AC Power Button International Version AC Output Sockets...
3.2 LCD Screen Remaining Battery Percentage Battery Failure Warning High Temperature Warning Battery Level Indicator Low Temperature Warning Fan Indicator Input Power Remaining Charge/ Output Power Discharge Time Overload Warning Extra Battery State of Charge Indicator Wi-Fi Status AC Output DC Output Indicator USB-A Output USB-C Output...
Seite 10
DC Output Port With the Main Power Button turned on, short press the DC Power Button to use the DC Output port. Short press the DC Power Button again to turn it off. With the DC Power Button on, the product will not automatically shut down.
Cable *Solar charging cable (MC4-XT60 adapter cable) is supplied separately. When using an EcoFlow solar panel to charge the product, please follow the instructions that come with the solar panel. Before connecting the solar panel, please ensure that the solar panel’s output voltage is within...
By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the "About" section of the "User" page on the EcoFlow App or on the official EcoFlow website at https://ecoflow.com/pages/terms-of-use and...
X-Boost Tips: 1. X-Boost is enabled by default; you can enable or disable it in the EcoFlow App. 2. X-Boost is not available when the AC output is turned on in a recharging state (in bypass mode) and when X-Boost is disabled.
3.9 Uninstall the Extra Battery Module 1. Make sure that the RIVER Max is turned off. Locate the four screws on the bottom cover. Note: Please pay attention to prevent the buildup of static electricity during the installation process. 2. Unscrew the four long screws and remove the bottom cover. Take out the extra battery module.
4. FAQs 1. What battery does the product use? It uses high-quality lithium-ion battery. 2. What devices can the product’s AC output port power? With 600W rated power and 1200W peak power, the product’s AC output port can power most household appliances. Before you use it, we recommend that you confirm the power of the appliances first and ensure the power sum of all loaded appliances is lower than the rated power.
If the Alarm Prompt shows on the product LCD screen during use and does not disappear after a restart, please stop using it immediately (do not try to charge or discharge). If you require any other assitance, please contact EcoFlow Customer Service.
6. What’s In the Box EcoFlow RIVER Max AC Charging Cable (1.5m) Car Charging Cable (1.5m) DC5521-DC5525 User Manual and War- Cable ranty Card 7. Storage & Maintenance 1. Ideally, use and store the product between 20°C to 30°C(68°F to 86°F), and always keep it away from water, intense heat, and sharp objects.
Produkt. Benutzer übernehmen die volle Verantwortung für Verwendung und Betrieb des Produkts. Machen Sie sich mit den entsprechenden Vorschriften in Ihrem Land vertraut. Sie sind allein dafür verantwortlich, alle relevanten Vorschriften zu kennen und EcoFlow-Produkte gemäß diesen Vorschriften zu verwenden.
6. Verwenden Sie nur Originalkomponenten oder -zubehörteile. Wenn Sie Komponenten oder Zubehör austauschen müssen, besuchen Sie bitte für alle relevanten Informationen die offiziellen EcoFlow- Kanäle. 7. Beachten Sie bei der Verwendung des Produkts unbedingt die in dieser Bedienungsanleitung angegebene Umgebungstemperatur.
18. Bei der Verwendung erzeugen Stromversorgungsgeräte zwangsläufig elektromagnetische Felder, die den normalen Betrieb von medizinischen Implantaten oder persönlichen medizinischen Geräten wie Herzschrittmachern, Cochlea-Implantaten, Hörgeräten, Defibrillatoren usw. beeinträchtigen können. Wenn solche medizinischen Geräten verwendet werden, wenden Sie sich an den Hersteller, um etwaige Einschränkungen bei der Verwendung solcher Geräte zu erfragen und so einen ausreichenden Sicherheitsabstand zwischen den medizinischen Implantaten (z.
3.2 LCD-Anzeige Verbleibender Akkuladestand in Prozent Warnung bei Akkuausfall Warnung hohe Temperatur Ladezustandsanzeige Warnung niedrige Temperatur Lüfteranzeige Eingangsleistung Verbleibende Lade-/ Ausgangsleistung Entladezeit Überlastwarnung Ersatzakku- Ladezustand Anzeige WLAN-Status AC-Ausgang DC-Ausgangsanzeige USB-A-Ausgang USB-C-Ausgang Ladezustandsanzeige: Die Ladezustandsanzeige füllt sich während des Ladevorgangs wiederholt. Wenn das Produkt über einen Ladestand von 0 % verfügt, blinkt die Anzeige, um Sie zu warnen.
Seite 28
DC-Ausgang Drücken Sie bei eingeschaltetem Netzschalter kurz die DC- Netztaste, um den DC-Ausgang zu verwenden. Drücken Sie die DC-Netztaste erneut kurz, um sie auszuschalten. Wenn der DC-Netzschalter eingeschaltet ist, schaltet sich das Gerät nicht automatisch ab. Drücken Sie kurz den DC-Netzschalter AC-Ausgang Drücken Sie bei eingeschaltetem Netzschalter kurz die AC-...
3.4 AC-Ladung X-Stream ist eine AC-Schnellladetechnologie, mit der Sie Ihre Powerstation schnellstmöglich aufladen können. Laden Sie die EcoFlow-App herunter, und aktivieren Sie das langsame Laden, um ein langsameres und leiseres Laden zu ermöglichen. Das Gerät schaltet sich ab, wenn der Strom von einer Wechselstromquelle über einen längeren Zeitraum 10 A überschreitet.
Bordspannungssteckdose 3.7 App Mit der EcoFlow-App können Benutzer EcoFlow-Powerstations aus der Ferne steuern und überwachen. Weitere Informationen finden Sie in der Anleitung für die EcoFlow-App, die Sie unter folgendem Link herunterladen können: https://ecoflow.com/pages/ecoflow-app Datenschutzerklärung Durch die Nutzung von EcoFlow-Produkten, -Anwendungen und -Services stimmen Sie den Nutzungsbedingungen und der Datenschutzrichtlinie von EcoFlow zu, auf die Sie über den Bereich...
Dadurch kann das Produkt Geräte, die mit hoher Wattleistung arbeiten, mit der Nennausgangsleistung versorgen. X-Boost-Tipps: 1. X-Boost ist standardmäßig aktiviert. Sie können es in der EcoFlow-App aktivieren oder deaktivieren. 2. X-Boost ist nicht verfügbar, wenn der AC-Ausgang in einem Ladezustand (im Bypass-Modus) eingeschaltet ist und wenn X-Boost deaktiviert ist.
3.9 Deinstallieren des zusätzlichen Akkumoduls 1. Stellen Sie sicher, dass der RIVER Max ausgeschaltet ist. Lokalisieren Sie die vier Schrauben an der unteren Abdeckung. Hinweis: Bitte achten Sie darauf, dass sich während der Installation keine statische Elektrizität bildet. 2. Lösen Sie die vier langen Schrauben, und entfernen Sie die untere Abdeckung. Nehmen Sie das zusätzliche Akkumodul heraus.
4. FAQ-Bereich 1. Welcher Akku wird für das Produkt verwendet? Das Produkt verfügt über einen hochwertigen Lithium-Ionen-Akku. 2. Welche Geräte kann der AC-Ausgang des Produkts mit Strom versorgen? Mit einer Nennleistung von 600 W und einer Spitzenleistung von 1200 W kann der AC-Ausgang des Produkts die meisten Haushaltsgeräte mit Strom versorgen.
Stellen Sie die Verwendung des Produkts umgehend ein, wenn die Alarmmeldung während des Betriebs auf der LCD-Anzeige angezeigt wird und nach einem Neustart nicht verschwindet (versuchen Sie nicht, das Produkt zu laden oder zu entladen). Wenn Sie weitere Unterstützung benötigen, wenden Sie sich bitte an den EcoFlow-Kundendienst.
6. Lieferumfang EcoFlow RIVER Max Wechselstromladekabel Ladekabel für (1,5 m) Bordspannungssteckdose (1,5 m) DC5521-DC5525- Benutzerhandbuch und Kabel Garantiekarte 7. Lagerung und Wartung 1. Verwenden und lagern Sie das Produkt idealerweise zwischen 20 °C und 30 °C (zwischen 68 °F und 86 °F) und halten Sie es stets von Wasser, starker Hitze und scharfen Gegenständen fern. Lagern Sie das Produkt nicht längere Zeit in einer Umgebung, in der es Temperaturen über 45 °C (113 °F) oder...
Seite 37
EcoFlow RIVER Max Manuel d'utilisation...
Reportez-vous aux conditions d'utilisation et à la clause de non-responsabilité disponibles sur le site https://ecoflow.com/pages/terms-of-use ainsi qu'aux autocollants apposés sur le produit avant l'utilisation. L'utilisateur assume l'entière responsabilité de l'utilisation et du fonctionnement du produit. Familiarisez-vous avec les réglementations en vigueur dans votre région.
Seite 40
TABLE DES MATIÈRES Spécifications 2. Instructions de sécurité 2.1 Utilisation 2.2 Guide de mise au rebut 3. Pour commencer 3.1 Détails du produit 3.2 Écran LCD 3.3 Utilisation générale du produit 3.4 Charge sur secteur (CA) 3.5 Charge solaire 3.6 Charge en voiture 3.7 Application 3.8 X-Boost 3.10 Désinstallation du module de la batterie supplémentaire 4.
1. Spécifications Informations générales Poids net Environ 7,7 kg Dimensions 28,9 x 18,4 x 23,5 cm Capacité 576Wh 28,8 V Wi-Fi(2.4G) Gamme de fréquences: 2412-2472MHz Puissance de sortie maximale: 15.06dBm Ports de sortie Onde sinusoïdale pure, 600 W au total (surtension de CA (x2) 1 200 W), 230 V~ 50 Hz Puissance max. du ou des appareils supportés par X-Boost 1 800 W USB-A (x2) 5 V...
5. Évitez d'utiliser des fils ou d'autres objets métalliques susceptibles de provoquer un court-circuit. 6. N'utilisez pas de composants ou d'accessoires non agréés. Si vous devez remplacer des composants ou des accessoires, consultez les ressources EcoFlow officielles pour vérifier les informations pertinentes. 7. Lorsque vous utilisez le produit, respectez scrupuleusement la température ambiante de fonctionnement spécifiée dans le présent manuel d'utilisation.
18. Lors de l'utilisation, les produits d'alimentation électrique génèrent inévitablement des champs électromagnétiques susceptibles d'affecter le fonctionnement normal des implants médicaux ou des équipements médicaux personnels tels que les stimulateurs cardiaques, implants cochléaires, prothèses auditives, défibrillateurs, etc. Si tels équipements médicaux sont utilisés, veuillez contacter le fabricant pour vous renseigner sur les restrictions d'utilisation de ces équipements, afin de garantir une distance de sécurité...
3. Pour commencer 3.1 Détails du produit Écran LCD Prise de voiture Port de sortie DC5521 Port de sortie USB-A Bouton MARCHE/ARRÊT Bouton d'alimentation CC du voyant LED Port de sortie de charge rapide USB-A Lumière ambiante Bouton IOT Bouton d'alimentation principal Port de sortie USB-C 100 W Ventilateur Version anglaise Bouton...
3.2 Écran LCD Pourcentage de batterie restante Avertissement de défaillance de la batterie Avertissement de température élevée Indicateur de niveau de charge de la batterie Avertissement de température basse Indicateur de ventilateur Puissance d'entrée Temps de charge/ Puissance de sortie décharge restant Avertissement de surcharge Indicateur...
Seite 46
Port de sortie CC Lorsque le bouton d'alimentation principal est activé, appuyez brièvement sur le bouton d'alimentation CC pour utiliser le port de sortie CC. Appuyez de nouveau brièvement sur le bouton d'alimentation CC pour le désactiver. Si le bouton d'alimentation CC est activé, le produit ne Appuyez brièvement sur le bouton s'éteint pas automatiquement.
X-Stream 500 W max. Câble de charge CA Veuillez utiliser le câble de charge CA pour une charge rapide. EcoFlow ne peut être tenu responsable de toute conséquence causée par le non-respect des instructions, y compris, mais sans s'y limiter, la charge avec un câble de charge CA.
Assurez-vous également que le port d'entrée de charge de voiture et le câble de charge de voiture sont en bon état. EcoFlow ne peut être tenu responsable des pertes ou dommages causés par le non-respect des instructions.
Conseils relatifs à la fonction X-Boost : 1. La fonction X-Boost est activée par défaut ; vous pouvez l'activer ou la désactiver dans l'application EcoFlow. 2. La fonction X-Boost est indisponible lorsque la sortie CA est activée en état de recharge (en mode bypass) et lorsque la fonction X-Boost est désactivée.
3.9 Désinstallation du module de la batterie supplémentaire 1. Assurez-vous que la RIVER Max est éteinte. Repérez les quatre vis du couvercle inférieur. Remarque : veillez à éviter l'accumulation d'électricité statique pendant la procédure d'installation. 2. Dévissez les quatre vis longues et déposez le couvercle inférieur. Retirez le module de la batterie supplémentaire.
4. Foire aux questions 1. Quelle batterie le produit utilise-t-il ? Il utilise une batterie lithium-ion de haute qualité. 2. Quels appareils le port de sortie CA du produit peut-il alimenter ? Avec une puissance nominale de 600 W et une puissance de pointe de 1 200 W, le port de sortie CA du produit peut alimenter la plupart des appareils ménagers.
Si l'invite d'alarme s'affiche sur l'écran LCD du produit pendant l'utilisation et ne disparaît pas suite au redémarrage, cessez immédiatement de l'utiliser (n'essayez pas de le charger ou de le décharger). Si vous avez besoin d'aide, veuillez contacter le service client EcoFlow.
6. Contenu de la boîte EcoFlow RIVER Max Câble de charge CA (1,5 m) Câble de charge de voiture (1,5 m) DC5521-DC5525 Manuel d'utilisation et Câble carte de garantie 7. Stockage et entretien 1. Idéalement, utilisez et conservez le produit entre 20°C et 30°C(68°F et 86°F), et tenez-le toujours à...
Familiarizzare con le normative in vigore nella propria zona. L'utente è l'unico responsabile della conoscenza di tutte le normative pertinenti e dell'uso conforme dei prodotti EcoFlow. EcoFlow RIVER Max ( di seguito denominato RIVER Max )...
Seite 58
CONTENUTO Specifiche 2. Istruzioni per la sicurezza 2.1 Uso 2.2 Guida allo smaltimento 3. Guida introduttiva 3.1 Dettagli sul prodotto 3.2 Schermo LCD 3.3 Uso generale del prodotto 3.4 Ricarica CA 3.5 Ricarica solare 3.6 Ricarica in auto 3.7 APP 3.8 X-Boost 3.9 Disinstallare il modulo batteria supplementare...
1. Specifiche Informazioni generali Peso netto Circa lbs (7,7 kg) Dimensioni 11,4 x 7,3 x 9,3 poll. (28,9 x 18,4 x 23,5 cm) Capacità 576 Wh 28,8 V Wi-Fi(2.4G) Gamma di frequenza: 2412-2472MHz Potenza di uscita massima r: 15.06dBm Porte di uscita Onda sinusoidale pura 600 W in totale (picco 1200 W), CA (x2) 230 V~ 50 Hz...
6. Non utilizzare componenti o accessori non autorizzati. In caso sia necessario sostituire un componente o un accessorio, verificare le istruzioni pertinenti sui canali ufficiali di EcoFlow. 7. Quando si utilizza il prodotto, attenersi rigorosamente alla temperatura dell'ambiente di esercizio specificata nel presente manuale dell'utente.
che l'alimentazione non si esaurisca). 18. Durante l'uso, gli alimentatori generano inevitabilmente campi elettromagnetici che potrebbero influire sul normale funzionamento dei dispositivi medici impiantabili o delle apparecchiature mediche personali come pacemaker, impianti cocleari, apparecchi acustici, defibrillatori, ecc. Se si utilizzano questi tipi di apparecchiature mediche, contattare il produttore per informazioni su eventuali limitazioni all'uso di tali apparecchiature, in modo da garantire una distanza di sicurezza sufficiente tra gli impianti medici (ad esempio, pacemaker, impianti cocleari, apparecchi acustici, defibrillatori, ecc.) e questo prodotto mentre è...
3. Guida introduttiva 3.1 Dettagli sul prodotto Schermo LCD Presa accendisigari Porta di uscita DC5521 Porta di uscita USB-A Pulsante di alimentazione Pulsante LED ON/OFF Porta di uscita USB-A per ricarica rapida Luce ambientale Pulsante IOT Pulsante di accensione principale Porta di uscita USB-C 100 W Ventola di aerazione Versione per il...
3.2 Schermo LCD Percentuale rimanente della batteria Avviso di guasto della batteria Avviso di temperatura elevata Indicatore del livello della batteria Avviso di bassa temperatura Indicatore di stato ventola Alimentazione in ingresso Tempo di carica/ Alimentazione in scarica rimanente uscita Avviso di sovraccarico Indicatore batteria...
Seite 64
Porta di uscita CC Con il pulsante di alimentazione principale acceso, premere brevemente il pulsante di alimentazione CC per utilizzare la porta di uscita CC. Premere di nuovo brevemente il pulsante di alimentazione CC per spegnerlo. Se il pulsante di alimentazione CC è acceso, il prodotto non si spegne automaticamente.
3.4 Ricarica CA X-Stream è una tecnologia di ricarica rapida CA che ricarica la tua centrale elettrica portatile nel modo più veloce possibile. Per una ricarica più lenta e silenziosa, scarica l'app Ecoflow e attiva la funzione di ricarica lenta.
Inoltre, assicurarsi che la porta di ingresso per la ricarica in auto e il cavo di ricarica per auto siano in buone condizioni. EcoFlow non si assume alcuna responsabilità per eventuali perdite o danni causati dal mancato rispetto delle istruzioni.
Suggerimenti per X-Boost: 1. La funzione X-Boost è attivata per impostazione predefinita; è possibile attivarla o disattivarla nell'app EcoFlow. 2. La funzione X-Boost non è disponibile quando l'uscita CA è attivata in uno stato di ricarica (in modalità bypass) e quando la funzione X-Boost è disattivata.
2. Svitare le quattro viti lunghe e rimuovere il coperchio inferiore. Estrarre il modulo batteria supplementare. Viti lunghe Coperchio inferiore 3. Chiudere il coperchio inferiore. Prendere le quattro viti corte dal Kit RIVER Max e avvitarle saldamente in posizione. Viti corte...
4. DOMANDE FREQUENTI 1. Quale batteria utilizza il prodotto? Utilizza una batteria agli ioni di litio di alta qualità. 2. Quali dispositivi possono essere alimentati dalla porta di uscita CA del prodotto? Con una potenza nominale di 600 W e una potenza di picco di 1200 W, la porta di uscita CA del prodotto è...
Se la richiesta di allarme viene visualizzata sullo schermo LCD del prodotto durante l'uso e non scompare dopo un riavvio, interromperne immediatamente l'utilizzo (non tentare di caricarlo o scaricarlo). Se è necessaria ulteriore assistenza, contattare il servizio clienti EcoFlow.
6. Contenuto della confezione EcoFlow RIVER Max Cavo di ricarica CA (1,5 m) Cavo di ricarica per auto (1,5 m) DC5521-DC5525 Manuale utente e Cavo scheda di garanzia 7. Conservazione e manutenzione 1. Preferibilmente, utilizzare e conservare il prodotto a una temperatura compresa tra 20°C e 30°C (tra 68°F e 86°F) e tenerlo sempre lontano da acqua, calore intenso e oggetti appuntiti.
Familiarícese con la normativa en vigor en su zona. Usted es el único responsable de conocer todas las normativas vigentes y de usar los productos EcoFlow de conformidad con ellas. EcoFlow RIVER Max ( en lo sucesivo, RIVER Max )...
Seite 76
ÍNDICE Especificaciones 2. Instrucciones de seguridad 2.1 Uso 2.2 Guía de eliminación 3. Primeros pasos 3.1 Detalles del producto 3.2 Pantalla LCD 3.3 Uso general del producto 3.4 Carga de CA 3.5 Carga mediante energía solar 3.6 Carga mediante vehículo 3.7 Aplicación 3.8 X-Boost 3.9 Desinstalación del módulo de la batería adicional...
1. Especificaciones Información general Peso neto Aproximadamente 17 libras (7,7 kg) Dimensiones 11,4 x 7,3 × 9,3 pulg. (28,9 × 18,4 × 23,5 cm) Capacidad 576 Wh 28,8 V Wi-Fi(2.4G) Rango de frecuencias: 2412-2472MHz Máxima potencia de salida: 15.06dBm Puertos de salida Onda sinusoidal pura, 600 W totales (pico: 1200 W), CA (2 uds.) 230 V~ 50 Hz Potencia máxima de los dispositivos compatibles...
EcoFlow. 17. No se recomienda el uso de este producto para alimentar equipos de emergencia médica relacionados con la seguridad personal, incluyendo, pero sin limitarse, a la versión hospitalaria...
18. Durante su uso, los productos que necesitan alimentación eléctrica generarán campos electromagnéticos, que pueden afectar al funcionamiento normal de los implantes médicos o los equipos médicos personales, como marcapasos, implantes cocleares, audífonos, desfibriladores, etc. Si utiliza este tipo de equipos médicos, póngase en contacto con el fabricante para obtener información sobre cualquier restricción en el uso de dicho equipo y garantizar una distancia de seguridad suficiente entre los implantes médicos (como los mencionados anteriormente) y este producto mientras está...
3. Primeros pasos 3.1 Detalles del producto Pantalla LCD Toma de vehículo Puerto de salida DC5521 Puerto de salida USB-A Botón de alimentación Luz LED del botón de de CC encendido/apagado Puerto de salida USB-A de carga rápida Luz ambiental Botón de IOT Botón de encendido principal Puerto de salida USB-C de 100 W...
3.2 Pantalla LCD Porcentaje de batería restante Advertencia de fallo de la batería Advertencia de alta temperatura Indicador de nivel de la batería Advertencia de baja temperatura Indicador del ventilador Alimentación de entrada Tiempo de carga/ Alimentación de descarga restante salida Advertencia de sobrecarga...
Seite 82
Puerto de salida de CC Con el botón de encendido principal activado, pulse brevemente el botón de alimentación de CC para utilizar el puerto de salida de CC. Vuelva a pulsar brevemente el botón de alimentación de CC para desactivarlo. Si el botón de alimentación de CC está...
Cable de carga de CA Use el cable de carga de CA para la carga rápida. EcoFlow no asume ninguna responsabilidad por las consecuencias derivadas de no seguir debidamente las instrucciones, incluido, entre otros, no realizar la carga con el cable de carga de CA.
Política de privacidad Al utilizar los productos, las aplicaciones y los servicios de EcoFlow, acepta los Términos de uso y la Política de privacidad de EcoFlow, a los que puede acceder en la sección "Acerca de" de la página "Usuario"...
Consejos para X-Boost: 1. La función X-Boost está activada por defecto; puede activarla y desactivarla en la aplicación EcoFlow. 2. La función X-Boost no está disponible si se activa la salida de CA en estado de recarga (en modo de derivación) ni si X-Boost está...
2. Desatornille los cuatro tornillos largos y retire la cubierta inferior. Extraiga el módulo de la batería adicional. Tornillos largos Cubierta inferior 3. Cierre la cubierta inferior. Coja los cuatro tornillos cortos del kit RIVER Max y atorníllelos firmemente en su lugar. Tornillos cortos...
4. Preguntas frecuentes 1. ¿Qué batería utiliza el producto? Utiliza una batería de iones de litio de alta calidad. 2. ¿Qué dispositivos pueden alimentarse mediante el puerto de salida de CA del producto? Con una potencia nominal de 600 W y una potencia máxima de 1200 W, el puerto de salida de CA es capaz de suministrar alimentación a la mayoría de electrodomésticos.
Si el indicador de alarma aparece en la pantalla LCD del producto durante su uso y no desaparece después de reiniciarlo, deje de usarlo inmediatamente (no intente cargarlo ni descargarlo). Si necesita más ayuda, póngase en contacto con el servicio de atención al cliente de EcoFlow.
6. Contenido de la caja EcoFlow RIVER Max Cable de carga de CA Cable de carga mediante (1,5 m) vehículo (1,5 m) Cable Manual de usuario y DC5521-DC5525 tarjeta de garantía 7. Almacenamiento y mantenimiento 1. Lo ideal es utilizar y almacenar el producto entre 20 °C y 30 °C (entre 68 °F y 86 °F), y mantenerlo siempre alejado del agua, del calor intenso y de objetos afilados.
Seite 91
EcoFlow RIVER Max Gebruikershandleiding...
Seite 93
Maak uzelf vertrouwd met de gerelateerde voorschriften in uw regio. U bent er als enige verantwoordelijk voor dat u op de hoogte bent van alle relevante voorschriften en dat u EcoFlow-producten gebruikt op een manier die aan de voorschriften voldoet.
Seite 94
INHOUD Specificaties 2. Veiligheidsinstructies 2.1 Gebruik 2.2 Verwijderingsgids 3. Aan de slag 3.1 Productgegevens 3.2 LCD-scherm 3.3 Algemeen gebruik product 3.4 Opladen via AC-adapter 3.5 Opladen op zonne-energie 3.6 Opladen in de auto 3.7 APP 3.8 X-Boost 3.9 De Extra Batterij-module verwijderen 4.
1. Specificaties Algemene info Nettogewicht Circa lbs (7,7 kg) Afmetingen 11,4 inch x 7,3 inch x 9,3 inch (28,9 x 18,4 x 23,5 cm) Capaciteit 576 Wh 28,8 V WiFi(2.4G) Frequentiebereik: 2412-2472MHz Maximaal uitgangsvermogen: 15.06dBm Uitvoerpoorten Pure sinusgolven, totaal 600 W (piek 1200 W), AC (x2) 230 V~ 50 Hz Max.
6. Gebruik geen onderdelen of accessoires van derden. Als u onderdelen of accessoires moet vervangen, ga dan naar de officiële EcoFlow-kanalen voor relevante informatie. 7. Houd u bij het gebruik van het product strikt aan de omgevingstemperatuur voor gebruik dat in deze gebruiksaanwijzing wordt vermeld.
18. Tijdens het gebruik zullen voedingsproducten onvermijdelijk elektromagnetische velden genereren, die waarschijnlijk van invloed zijn op de normale werking van medische implantaten of persoonlijke medische apparatuur, zoals pacemakers, cochleaire implantaten, gehoorapparaten, defibrillators, enz. Als dit type medische apparatuur wordt gebruikt, neem contact op met de fabrikant voor informatie over beperkingen met betrekking tot het gebruik van dergelijke apparatuur, zodat er voldoende veiligheidsafstand is tussen de medische implantaten (bijvoorbeeld pacemakers, cochleaire implantaten, gehoorapparaten, defibrillators, enz.) en dit product terwijl het in bedrijf is.
3. Aan de slag 3.1 Productgegevens LCD-scherm Auto-uitgang DC5521-uitgangspoort USB-A-uitvoerpoort AAN/UIT-knop van DC aan/uit-knop ledlampje USB-A Fast Charge uitvoerpoort Omgevingslicht IoT-knop Aan/uit-knop USB-C-uitgang van 100 W Ventilator VK-versie Aan/uit-knop AC Algemene versie AC-uitgangen Schakelaar overbelastingsbeveiliging X-Stream AC Aardingsschroef Invoerpoort voor opladen Ingangspoort voor opladen via zonne-energie/auto...
3.2 LCD-scherm Resterend batterijpercentage Waarschuwing batterijstoring Waarschuwing hoge temperatuur Batterijniveau-indicator Waarschuwing lage temperatuur Ventilatorindicator Ingangsvermogen Resterende Uitgangsvermogen oplaad-/ontlaadtijd Waarschuwing overbelasting Indicator extra Laadtoestand batterij WiFi-status AC-uitgang DC-vermogensindicator USB-A-uitgang USB-C-uitgang Indicator batterijniveau: De indicator wordt herhaaldelijk gevuld tijdens het opladen. Als het product 0% is opgeladen, knippert het lampje om u te waarschuwen.
Seite 100
DC-uitgangspoort Druk, met de aan/uit-knop ingeschakeld, kort op de aan/ uit-knop van de DC om de DC-uitgangspoort te gebruiken. Druk nogmaals kort op de aan/uit-knop van de DC om deze uit te schakelen. Als de aan/uit-knop van de DC is ingeschakeld, wordt het product niet automatisch uitgeschakeld.
*Zonnelaadkabel (MC4-XT60 adapterkabel) apart geleverd. Als u een zonnepaneel van EcoFlow gebruikt om het product op te laden, volg dan de instructies die bij het zonnepaneel worden geleverd. Voordat u het zonnepaneel aansluit, moet u ervoor zorgen dat de uitgangsspanning van het...
Privacybeleid Door gebruik te maken van producten, apps en services van EcoFlow, gaat u akkoord met de gebruiksvoorwaarden en het privacybeleid van EcoFlow, dat u kunt openen via het gedeelte 'Info' van de pagina 'Gebruiker' in de EcoFlow-app of op de officiële EcoFlow-website op...
X-Boost-tips: 1. X-Boost is standaard ingeschakeld. U kunt deze functie in- of uitschakelen in de EcoFlow-app. 2. X-Boost is niet beschikbaar wanneer de AC-uitgang is ingeschakeld in een oplaadstatus (in de bypassmodus) en wanneer X-Boost is uitgeschakeld.
2. Draai de vier lange schroeven los en verwijder de onderste afdekking. Verwijder de Extra Batterij- module. Lange schroeven Onderste afdekking 3. Sluit de onderste afdekking. Neem de vier korte schroeven uit de RIVER Max Kit en draai ze stevig vast. Korte schroeven...
4. Veelgestelde vragen 1. Welke batterij gebruikt het product? Het apparaat gebruikt een lithium-ionbatterij van hoge kwaliteit. 2. Welke apparaten kan de AC-uitgangspoort van het product van stroom voorzien? Met een nominaal vermogen van 600 W en een piekvermogen van 1200 W kan de AC-uitgang van het product de meeste huishoudelijke apparaten van stroom voorzien.
Als de Alarmmelding tijdens het gebruik op het LCD-scherm van het product wordt weergegeven en niet verdwijnt na het opnieuw opstarten, stop dan onmiddellijk met het gebruik (probeer niet op te laden of te ontladen). Neem contact op met de klantenservice van EcoFlow als u andere ondersteuning nodig hebt.
6. Inhoud van de doos EcoFlow RIVER Max AC-oplaadkabel (1,5 m) Oplaadkabel voor in de auto (1,5 m) DC5521-DC5525- Gebruikershandleiding kabel en garantiekaart 7. Opslag en onderhoud 1. Gebruik en bewaar het product bij voorkeur tussen 20 °C en 30 °C (68 °F en 86 °F) en houd het altijd uit de buurt van water, intense hitte en scherpe voorwerpen.
Seite 109
Руководство пользователя EcoFlow RIVER Max...
Seite 111
условия применения и заявления об ограничении ответственности. См. условия использования и заявление об ограничении ответственности на сайте https://ecoflow.com/pages/terms-of-use, а также обратите внимание на наклейки на изделии до начала использования. Пользователи несут полную ответственность за эксплуатацию и выполняемые операции. Ознакомьтесь с применимыми нормами законодательства, действующими...
Seite 112
СОДЕРЖАНИЕ Технические характеристики 2. Техника безопасности 2.1 Эксплуатация 2.2 Инструкции по утилизации 3. Начало работы 3.1 Описание устройства 3.2 ЖК-экран 3.3 Общие правила эксплуатации 3.4 Зарядка от источника переменного тока 3.5 Зарядка от солнечной батареи 3.6 Зарядка от автомобиля 3.7 Приложение 3.8 X-Boost 3.9 Удаление...
меры по предотвращению поражения электрическим током, прежде чем прикасаться к устройству, затем немедленно поместите его в безопасное, водонепроницаемое и открытое место и немедленно обратитесь в службу поддержки EcoFlow. 17. Данный продукт не рекомендуется использовать для питания медицинского оборудования, связанного с обеспечением личной безопасности, включая, но не ограничиваясь этим, CPAP (Continuous Positive Airway Pressure), ECMO (Extracorporeal Membrane Oxygenation) и...
18. Во время использования источники питания неизбежно генерируют электромагнитные поля, которые могут повлиять на нормальную работу медицинских имплантатов или персонального медицинского оборудования, например кардиостимуляторов, кохлеарных имплантатов, слуховых аппаратов, дефибрилляторов и т. д. Если используется медицинское оборудование такого типа, обратитесь к производителю, чтобы узнать о наличии каких-либо ограничений по использованию такого...
3. Начало работы 3.1 Описание устройства Автомобильный ЖК-экран прикуриватель Выходной порт DC5521 Выходной порт USB-A Кнопка включения Кнопка включения/ постоянного тока выключения светодиодного индикатора Выходной порт USB-A для быстрой зарядки Окружающий свет Кнопка IOT Кнопка включения питания Выходной порт USB-C 100 Вт Вентилятор...
3.2 ЖК-экран Оставшийся заряд в процентах Предупреждение об отказе аккумулятора Предупреждение о перегреве Индикатор уровня заряда Предупреждение о переохлаждении Индикатор вентилятора Потребляемая мощность Оставшийся заряд/ Выходная мощность Время разрядки Предупреждение о перегрузке Индикатор Состояние заряда дополнительного Состояние аккумулятора подключения Wi-Fi Выход...
Seite 118
Выходной порт постоянного тока При нажатой кнопке включения питания кратковременно нажмите на кнопку питания постоянного тока, чтобы использовать выходной порт постоянного тока. Кратковременно нажмите на кнопку питания постоянного тока, чтобы отключить его. При нажатой кнопке питания постоянного тока устройство Короткое нажатие не...
Кабель для зарядки от источника переменного тока Используйте кабель для зарядки от источника переменного тока для быстрой зарядки. EcoFlow не несет ответственности за последствия, вызванные невыполнением инструкций, включая, помимо прочего, зарядку с помощью кабелей для зарядки от источника переменного тока других производителей.
Политика конфиденциальности Используя Продукты, Приложения и Сервисы EcoFlow, вы соглашаетесь с Условиями использования и Политикой конфиденциальности EcoFlow, которые доступны в разделе «О нас» на странице «Пользователь» в приложении EcoFlow или на официальном веб-сайте EcoFlow по адресу https://ecoflow.com/pages/terms-of-use и https://ecoflow.com/pages/privacy-policy...
номинальной выходной мощности. Советы по использованию X-Boost: 1. Режим X-Boost включен по умолчанию; вы можете включить или отключить его в приложении EcoFlow. 2. Режим X-Boost недоступен при включенном выходе переменного тока в состоянии подзарядки (в байпасном режиме) и когда X-Boost отключен.
Примечание: обратите внимание, что возможно возникновение статического электричества в процессе установки. 2. Открутите четыре длинных винта и снимите нижнюю крышку. Вытащите модуль дополнительного аккумулятора. Длинные винты Нижняя крышка 3. Закройте нижнюю крышку. Возьмите четыре коротких винта из комплекта RIVER Max и надежно прикрутите их на место. Короткие винты...
4. ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ 1. Какая аккумуляторная батарея используется в устройстве? В нем используется высококачественная литий-ионная аккумуляторная батарея. 2. Питание каких устройств может обеспечивать выходной порт переменного тока продукта? Выходной порт переменного тока с номинальной мощностью 600 Вт и пиковой мощностью 1200 Вт может обеспечивать...
Значки с восклицательным знаком и OVERLOAD (ПЕРЕГРУЗКА) мигают одновременно. Отключите все устройства, перезагрузите Значки мигают Защита от разрядки при вместе RIVER Max и снова поочередно подключите перегрузке каждое устройство. Обратите внимание, что все электрические устройства должны работать в диапазоне номинальной мощности. Нормальная работа будет автоматически...
6. Комплект поставки EcoFlow RIVER Max Кабель для зарядки от Кабель для зарядки от источника переменного автомобиля (1,5 м) тока (1,5 м) Кабель Руководство DC5521–DC5525 пользователя и гарантийный талон 7. Хранение и обслуживание 1. В идеале, используйте и храните устройство при температуре от 20 °C (68 °F) до 30 °C (86 °F) и всегда...
Seite 129
免責聲明 請仔細閱讀所有安全提示、警告訊息、使用條款及免責聲明。請在使用前參閱 https://ecoflow.com/pages/terms-of-use 的使用條款和免責聲明,以及產品上的標貼。用戶須為 產品的使用和操作承擔全部責任。請了解您當地的相關法規。您對了解所有相關法規、以合規方式使用 EcoFlow 產品自負全責。 EcoFlow RIVER Max(以下稱為 RIVER Max)...
