3 Audioassistant of the TKS Communicator

Define the duration of the ring tone in the tile settings of the Door intercom widget
■
The widget closes automatically 3 seconds after the door is opened.
■
Video transmission in MJPEG, JPEG and RTSP
■
3 Audioassistant of the TKS Communicator
1. Select audio components
− Select the „Microphone and Loudspeaker" option.

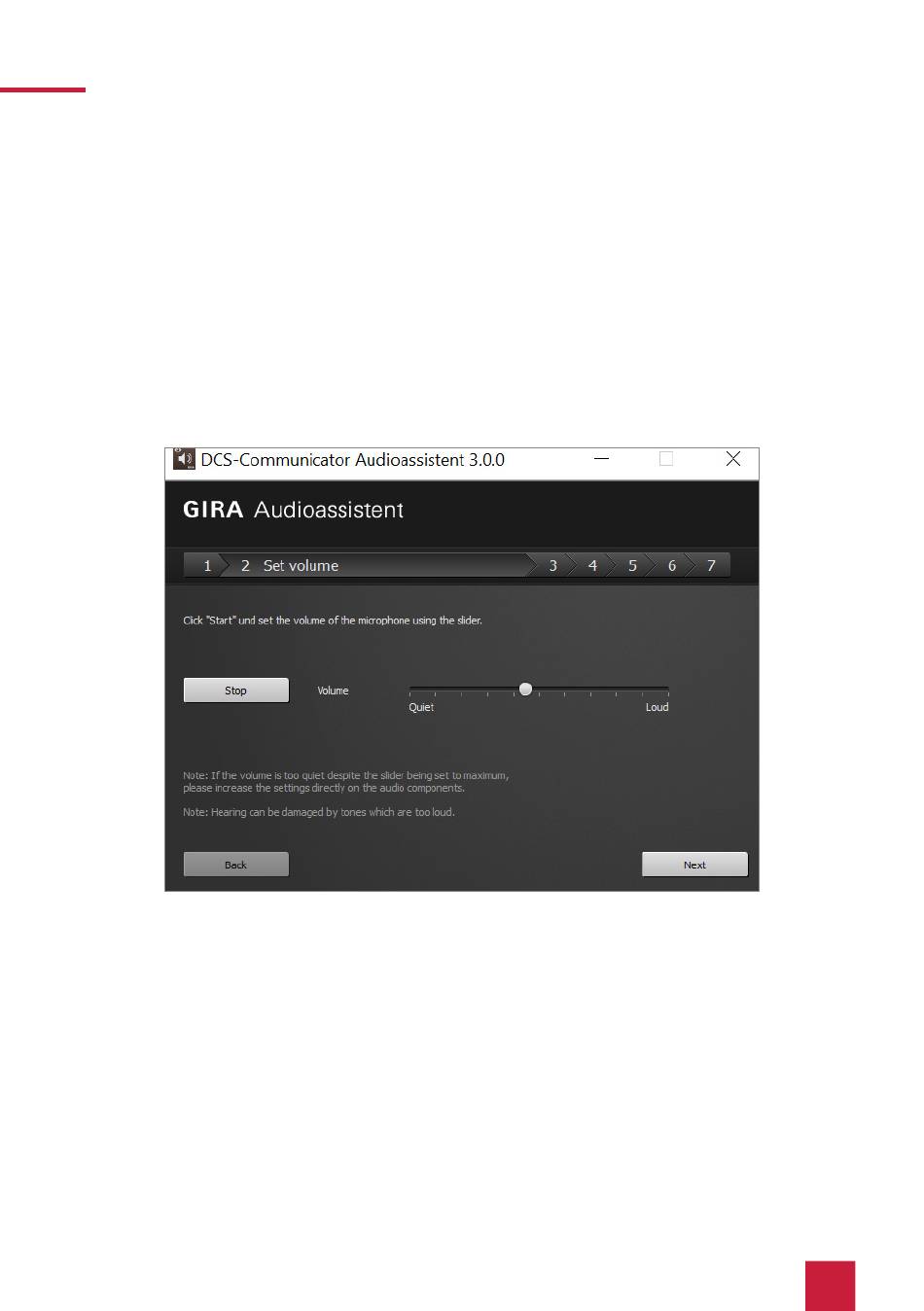

2. Adjusting the volume
− Start the volume test and adjust the slider to your needs. By default a position in the
middle is recommended.
3. Select recording device
− Select the option „Microphone (USB Digital Audio)" here
4. Adjusting the microphone volume
− Do the speech test and move the slider to the second line from the left.
− Select „Settings" at the bottom of the window and double-click on the microphone with
the green tick in the next window.
− Here you can now set the gain under the „Level" tab. This must be set to 0!
− Accept the settings and close the window to continue with the wizard.
