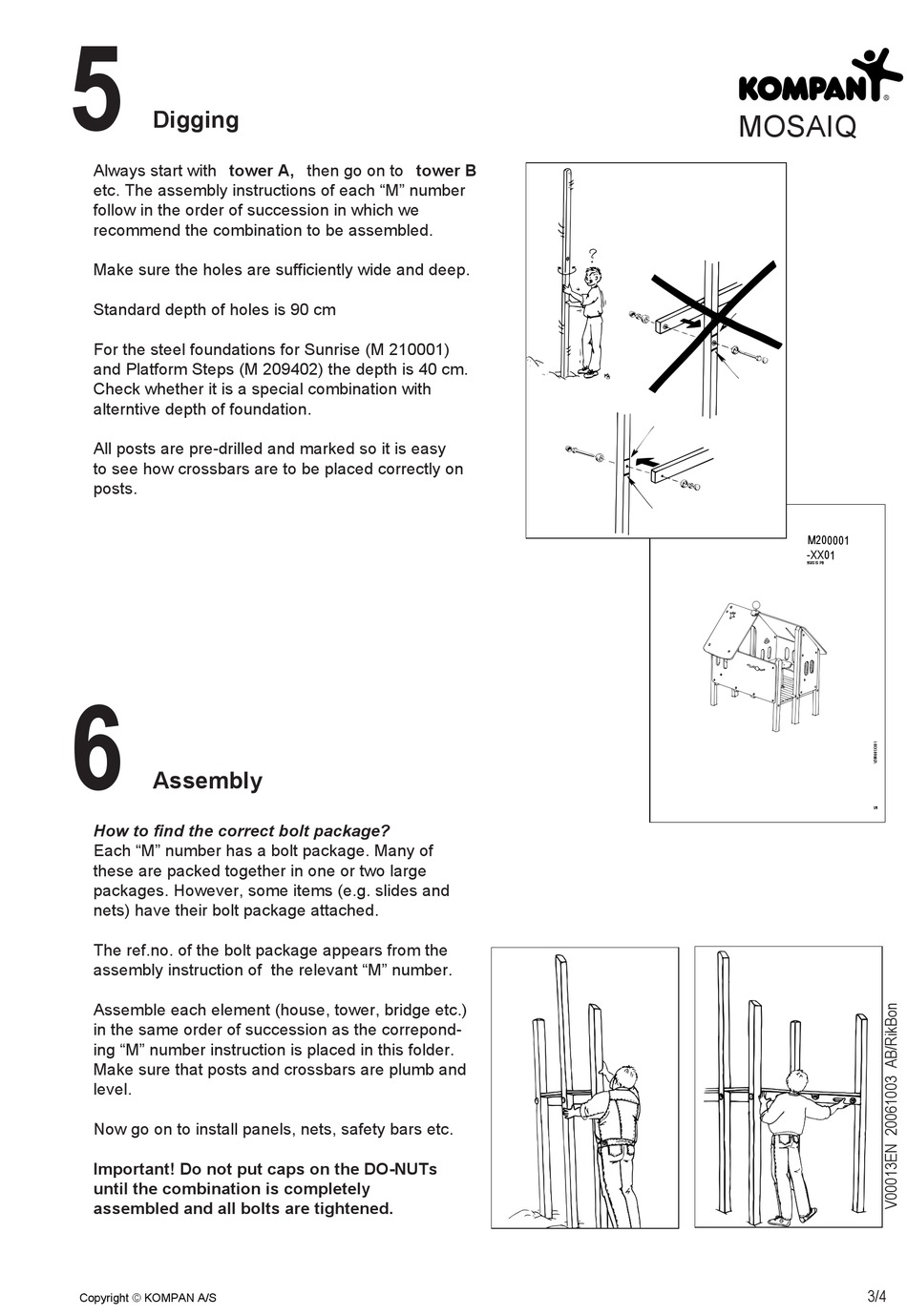

KOMPAN MOSAIQ Installation Seite 3

5
Digging
Always start with tower A, then go on to tower B
etc. The assembly instructions of each "M" number
follow in the order of succession in which we
recommend the combination to be assembled.
Make sure the holes are sufficiently wide and deep.
Standard depth of holes is 90 cm
For the steel foundations for Sunrise (M 210001)
and Platform Steps (M 209402) the depth is 40 cm.
Check whether it is a special combination with
alterntive depth of foundation.
All posts are pre-drilled and marked so it is easy
to see how crossbars are to be placed correctly on
posts.
6
Assembly
How to find the correct bolt package?
Each "M" number has a bolt package. Many of
these are packed together in one or two large
packages. However, some items (e.g. slides and
nets) have their bolt package attached.
The ref.no. of the bolt package appears from the
assembly instruction of the relevant "M" number.
Assemble each element (house, tower, bridge etc.)
in the same order of succession as the correpond-
ing "M" number instruction is placed in this folder.
Make sure that posts and crossbars are plumb and
level.
Now go on to install panels, nets, safety bars etc.
Important! Do not put caps on the DO-NUTs
until the combination is completely
assembled and all bolts are tightened.
Copyright © KOMPAN A/S
MOSAIQ
3/4
