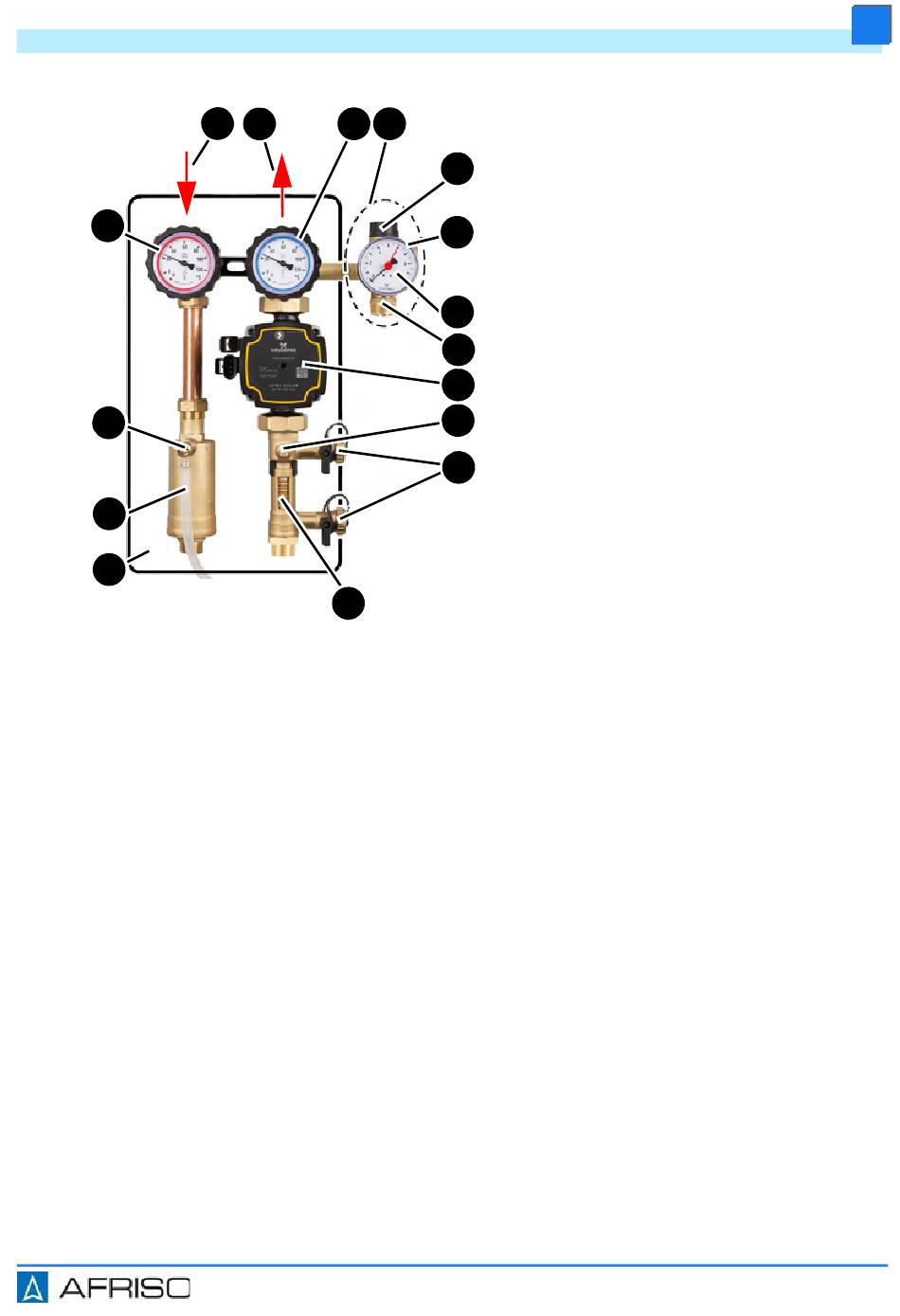

Fig. 2: PrimoSol® 130-4, flow and return with filling and flushing valves and vent pot

Product description

C D
L
A. Flow
E
B. Return
C. Ball valve, can be shut off, with
F
thermometer blue and gravity
brake
D. Safety group assembly
G
E. Diaphragm safety valve
H
F. Discharge opening
I
G. Pressure gauge with mounting
J
valve
K
H. Connection for expansion vessel
I. Circulation pump
J. Shut-off
K. Filling and flushing valves
L. Flow meter
M. Insulation
N. Vent pot
O. Vent valve with hand wheel
P. Ball valve, can be shut off, with
thermometer red and gravity
brake
