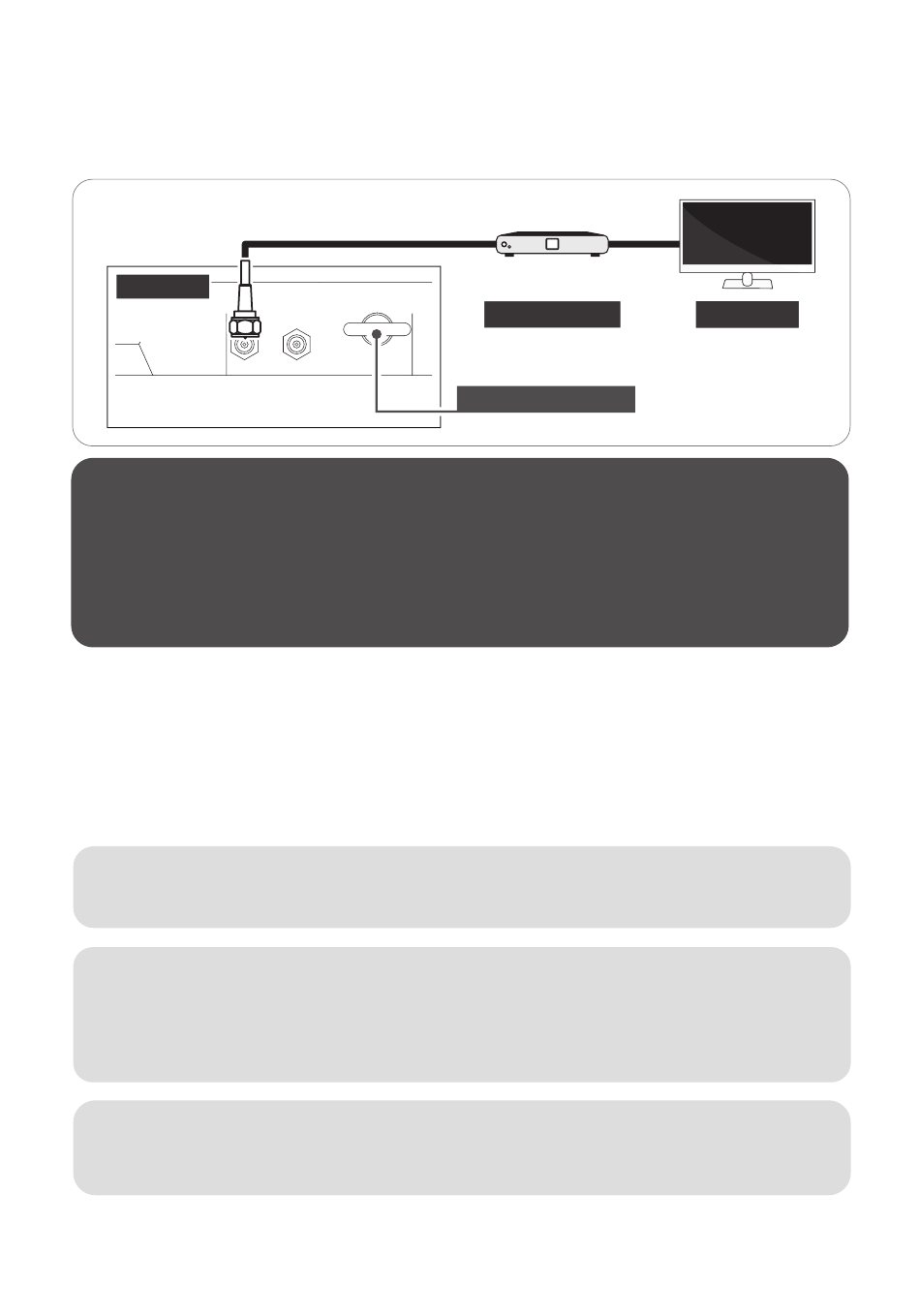

4. Connection diagram

1. There is one cable connection from the main unit to the receiver.
2. Connect the antenna and the receiver/STB with a signal cable.
3. Turn on the receiver/STB power.
ANTENNA
NOTE
※ The operating current required for the antenna is 300mA, and it is supplied by
connecting the antenna with the reciever/STB directly.
※ When the antenna has found the satellite you can switch off and on the reciever/STB.
The antenna will not have to search for the satellite again as long as the position of
the antenna wasn´t changed.
※ If the antenna does not find a satellite within 6 minutes, move it and try again.
5. Troubleshooting
There are a number of common issues that can affect the signal reception quality or the
operation of the product. The following sections address these issues and offer potential
solutions.
A. No function when connected
i. Check all cable connections again.
B. Satellite search has failed.
i. Satellite signals can be blocked or degraded by buildings, trees or other obstacles.
ii. Make sure there are no obstacles in a southward direction.
iii. Turn the product off and then on again.
C. Other issues
i. If the system has been improperly wired, it will not operate properly. Contact local
dealer/shop for assistance of cable damage.
Signal cable (10m)
Chain linkable ring
ENGLISH - 2
RECEIVER / STB TV
