Konix Geek Star Quartz Ring Light Bedienungsanleitung Seite 5

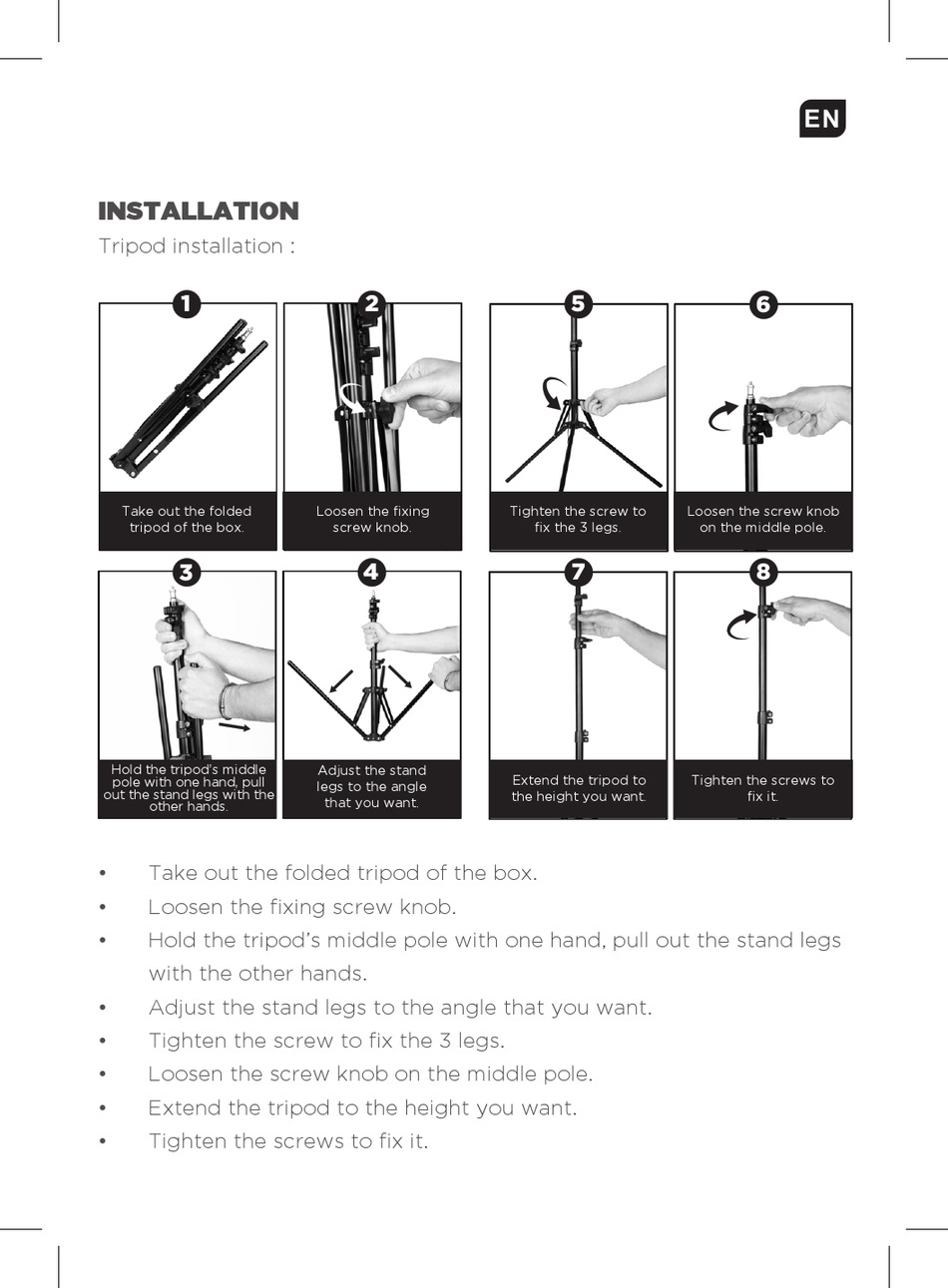

INSTALLATION
Tripod installation :
Take out the folded
tripod of the box
Hold the tripod's middle
pole with one hand, pull
out the stand legs with the
other hands.
b
• Take out the folded tripod of the box.
ce
• Loosen the fixing screw knob.
ent
• Hold the tripod's middle pole with one hand, pull out the stand legs
with the other hands.
• Adjust the stand legs to the angle that you want.
• Tighten the screw to fix the 3 legs.
b
• Loosen the screw knob on the middle pole.
• Extend the tripod to the height you want.
• Tighten the screws to fix it.
1
Loosen the fixing
screw knob.
.
3
Adjust the stand
legs to the angle
that you want.
2
Tighten the screw to
fix the 3 legs.
4
Extend the tripod to
the height you want.
5
Loosen the screw knob
on the middle pole.
7
Tighten the screws to
fix it.
A
6
8
