1. Disconnect the building-side connecting
cable from the power supply and secure it
against being switched on again.To do this,
trip the corresponding circuit breaker of the
house installation.
2. Remove the lamp from the mounting pot
(1).Loosen the two screws (2) on the back
of the light and remove the light cover (3).
3. For mounting with installation pot (1),
you must pierce or cut a cable opening in
the installation pot at one of the
perforations (4) provided for this
purpose.Then guide the connection cable
on the building side through the cable
opening and place the installation pot (1) in
the installation opening provided.
Guide the building-side connection cable (6
- 9 mm cable diameter) through the
opening (5) on the back of the light.
5. Connect the building-side connection
cable to the luster terminal inside the
luminaire as shown in Figure 2.
6. Now close the lamp housing again.
7. Then place the light in the designated
location.The springs (6) on the side of the
light should now fix the light in place.
8. Turn the power back on.The installation
is now complete.
Subject to technical changes
LEDs Com GmbH, Dohrweg 2a, D-41066 Mönchengladbach, www.leds-com.de, Tel. +49 (0) 2161 - 5 75 99 76
English Recessed wall light (LC-EL-073-WW) - Assembly instructions

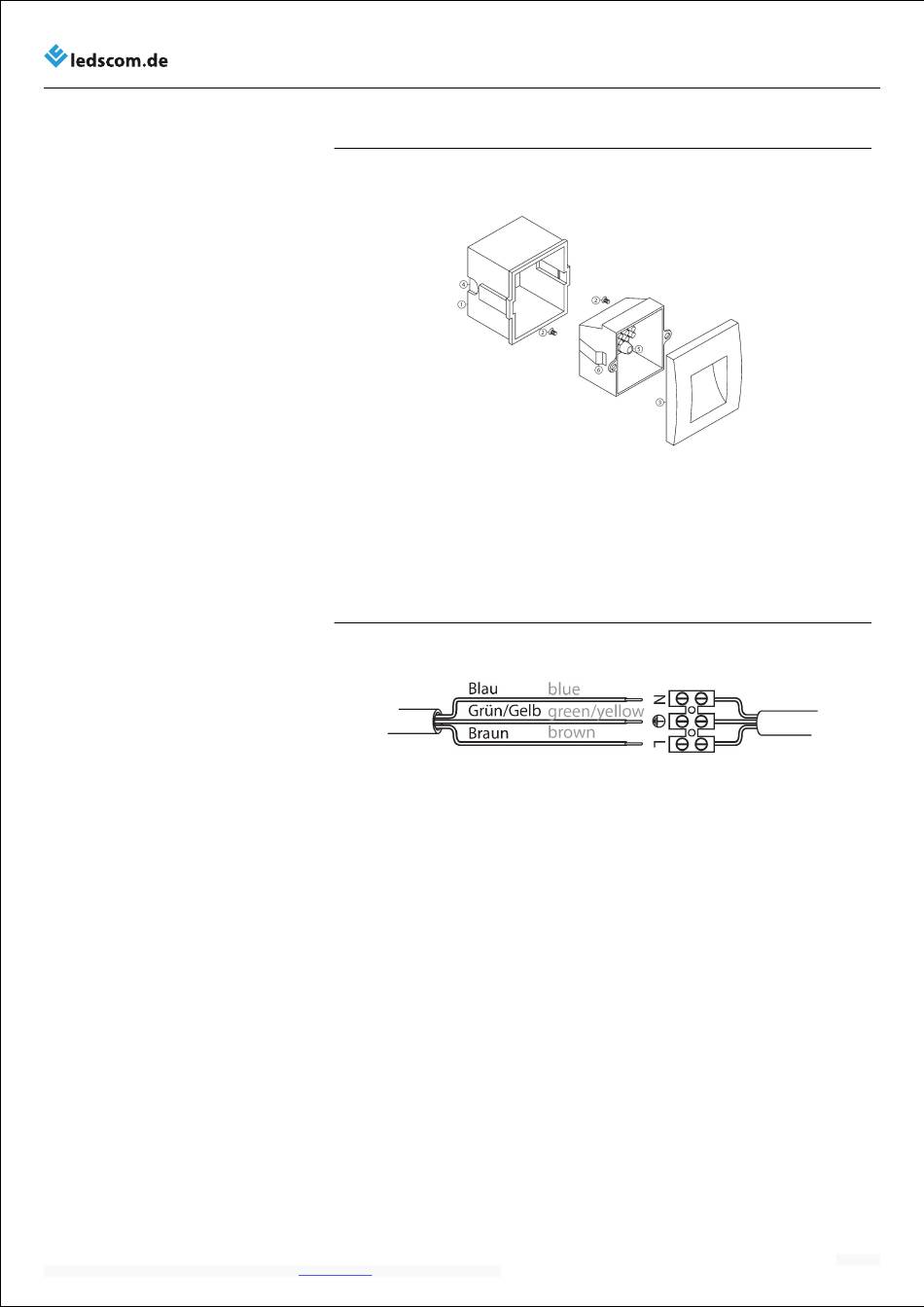

Figure 1
1: Installation pot
2: Screws
3: Luminaire cover
Figure 2
4: Perforation for cable opening
5: Cable opening
6: Springs
