Evon Smart Home Modul Light 1544-10 Inbetriebnahme

Modul Light 1544-10
:
Module dimensions
Evon Smart Home module type b (refer to technical data sheet
module types) width/height/depth: 45,0mm/85,0mm/70,0mm
Screw base depth 38,5mm Horizontal pitch [U] = 2,6 HU
Supply
Power supply 24 Vdc +/-10 %
Nominal consumption 2W
Duty cycle 100%
Environmental conditions
Operating conditions -15..+55°C, 5..90 % rH, non-condensing
Storage conditions -25..+55°C, 5..90 % rH, non-condensing
Pollution degree 2
Terminals
Terminal capacity max. 2 x 1,5 mm2
Screws Pozidrive 1 / Slot 4 x 0,8 mm
Tightening torque 0,4 Nm
Protection type (EN 60529) IP 20
Tests/Certification CE
Input
Type Digital input
Type Potential-free Digital input
Number 4
Terminals T1..T4
Input voltage See Power supply
<5 VDC = logic 0
Level
>15 VDC = logic 1
Input frequency 250 Hz
Output Analog
Type Analog output
Type Voltage output 0..10V
Number 4
Terminals Ao1..4
Resolution 2000 Digit
Output current per output max.10 mA
Max. recommended cable length 30m
Accuracy type 0,1 % +30 mV max. 0,6 % + 100 mV
Notes:
• The input channel may only be switched with 24 V DC.
• All channel switching functions are available and can be tested after installation.
*Changes and errors excepted. This document does not claim to be exhaustive. The terms and conditions apply to evon GmbH. For more Details please visit our website www.evon-smarthome.com
Intelligent dimmer module for 4 light functions. For 0 up to
10V controllable dimmer pack without additional release.
ATTENTION ELECTRICAL VOLTAGE
Disconnect all system components from the mains before commencing work.
The components may ONLY cabled with the mains disconnected.
The cabling may only be carried out by trained expert personnel.
Important before commissioning:
• Supply every module with power.
• Please check whether the GND supply corresponds to the earth zero potential.
• Larger loads on the module outputs, together with capacitive and inductive loads, must be switched via relays.
• The input channel may only be switched with 24 V DC.

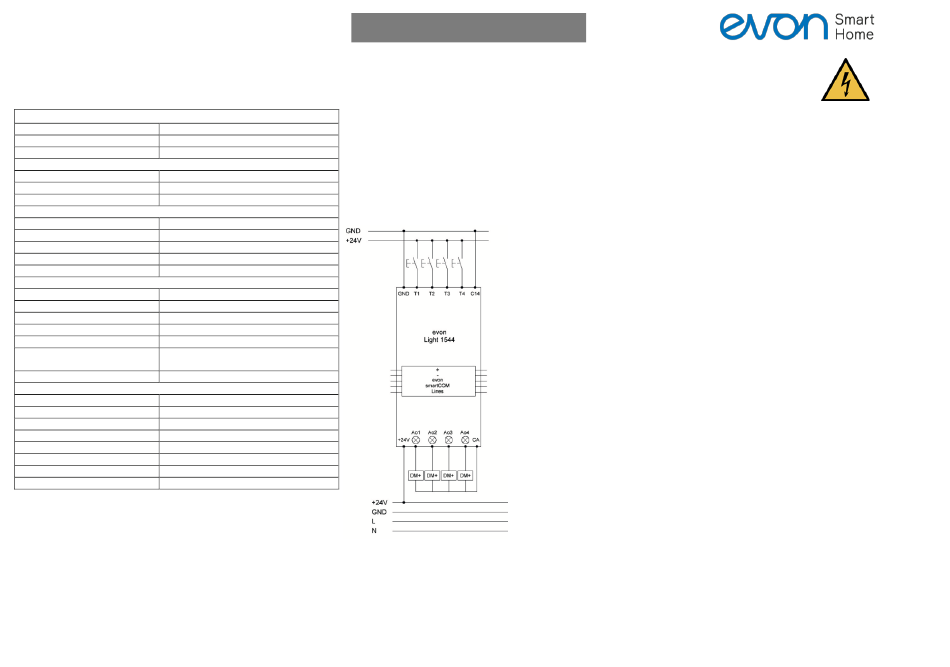

Wiring example: Commissioning:
• Isolate the system from the mains before beginning commissioning.
• Start the installation work with a controller (e.g. iX800) or a converter module
• The modules can only be mounted from left to right.
• Plug the included 5-pole smartCOM line connector into the left terminal of the
• Mount the module on the DIN rail; it will click when seated correctly.
• Push the module along the rail to the left-hand module in the system. Ensure that
• Please check whether the GND supply for the 24 V power supply corresponds to
• Once the power is switched on, the ON LED lights up green.
• The smartCOM LED flashes red.
•
S1200 on the left-hand side of the cabinet.
module.
the free pins of the connector snap into place in the socket of the adjacent
module.
an earth zero potential!
Once the controller has recognized and addressed the modules, the smartCOM
red LED is extinguished and the allocation and configuration can begin via
visualization.
