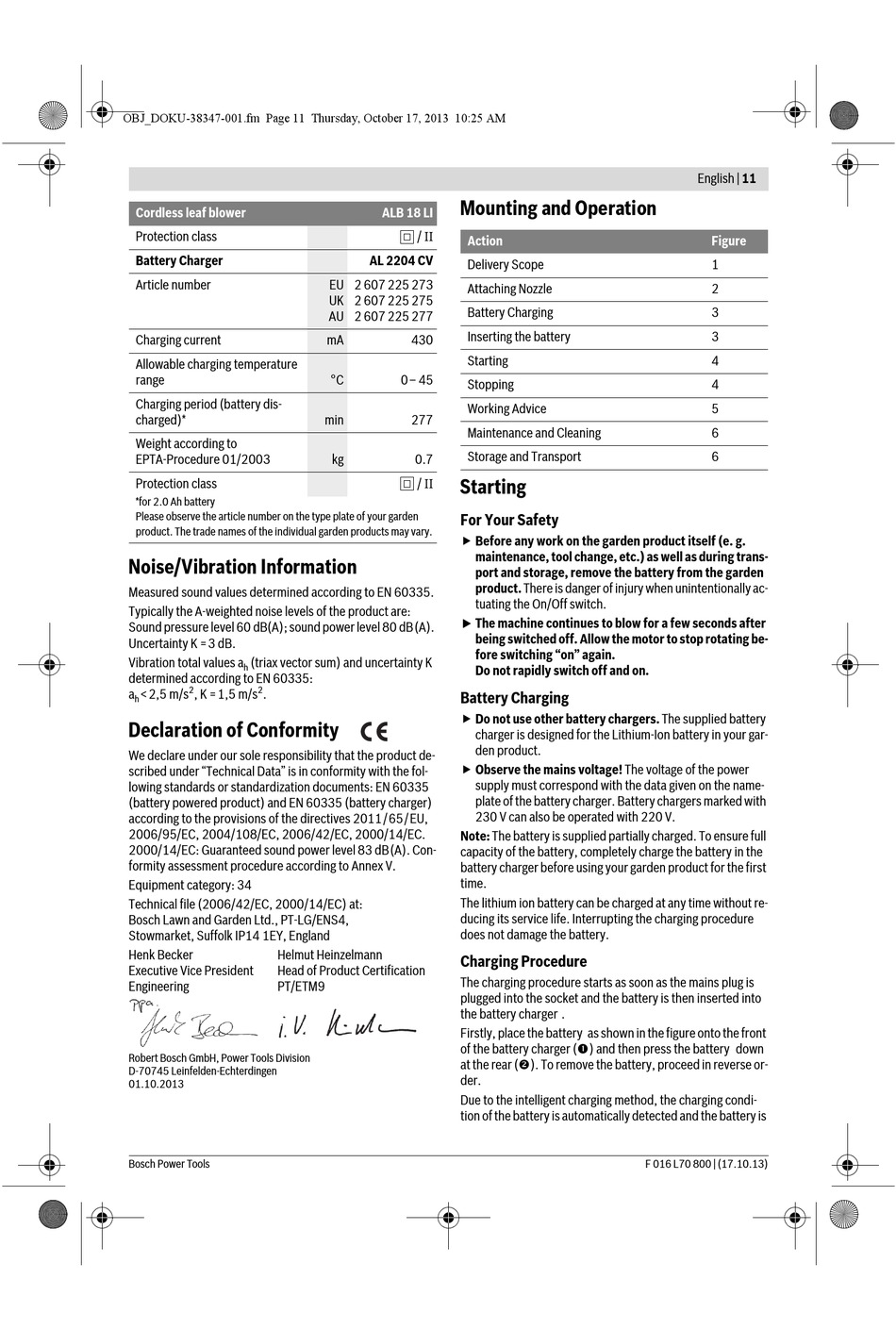

Mounting And Operation; Noise/Vibration Information; Declaration Of Conformity - Bosch ALB 18 LI Originalbetriebsanleitung

OBJ_DOKU-38347-001.fm Page 11 Thursday, October 17, 2013 10:25 AM
Cordless leaf blower
Protection class
Battery Charger
Article number
Charging current
Allowable charging temperature
range
Charging period (battery dis-
charged)*
Weight according to
EPTA-Procedure 01/2003
Protection class
*for 2.0 Ah battery
Please observe the article number on the type plate of your garden
product. The trade names of the individual garden products may vary.

Noise/Vibration Information

Measured sound values determined according to EN 60335.
Typically the A-weighted noise levels of the product are:
Sound pressure level 60 dB(A); sound power level 80 dB(A).
Uncertainty K =3 dB.
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 60335:
2 2
a <2,5 m/s , K =1,5 m/s .
h

Declaration of Conformity

We declare under our sole responsibility that the product de-
scribed under "Technical Data" is in conformity with the fol-
lowing standards or standardization documents: EN 60335
(battery powered product) and EN 60335 (battery charger)
according to the provisions of the directives 2011/65/EU,
2006/95/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC.
2000/14/EC: Guaranteed sound power level 83 dB(A). Con-
formity assessment procedure according to Annex V.
Equipment category: 34
Technical file (2006/42/EC, 2000/14/EC) at:
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
01.10.2013
Bosch Power Tools

Mounting and Operation

ALB 18 LI
/ II
Action
AL 2204 CV
Delivery Scope
EU 2 607 225 273
Attaching Nozzle
UK 2 607 225 275
Battery Charging
AU 2 607 225 277
Inserting the battery
mA 430
Starting
°C 0– 45
Stopping
Working Advice
min 277
Maintenance and Cleaning
Storage and Transport
kg 0.7
/ II
Starting
For Your Safety
 Before any work on the garden product itself (e. g.
maintenance, tool change, etc.) as well as during trans-
port and storage, remove the battery from the garden
product. There is danger of injury when unintentionally ac-
tuating the On/Off switch.
 The machine continues to blow for a few seconds after
being switched off. Allow the motor to stop rotating be-
fore switching "on" again.
Do not rapidly switch off and on.
Battery Charging
 Do not use other battery chargers. The supplied battery
charger is designed for the Lithium-Ion battery in your gar-
den product.
 Observe the mains voltage! The voltage of the power
supply must correspond with the data given on the name-
plate of the battery charger. Battery chargers marked with
230 V can also be operated with 220 V.
Note: The battery is supplied partially charged. To ensure full
capacity of the battery, completely charge the battery in the
battery charger before using your garden product for the first
time.
The lithium ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.
Charging Procedure
The charging procedure starts as soon as the mains plug is
plugged into the socket and the battery is then inserted into
the battery charger .
Firstly, place the battery as shown in the figure onto the front
of the battery charger () and then press the battery down
at the rear (). To remove the battery, proceed in reverse or-
der.
Due to the intelligent charging method, the charging condi-
tion of the battery is automatically detected and the battery is
English | 11
Figure
1
2
3
3
4
4
5
6
6
F 016 L70 800 | (17.10.13)
