1
2
3
4
5
Optional
|
2
nVent.com/ERIFLEX
ENGLISH
EN

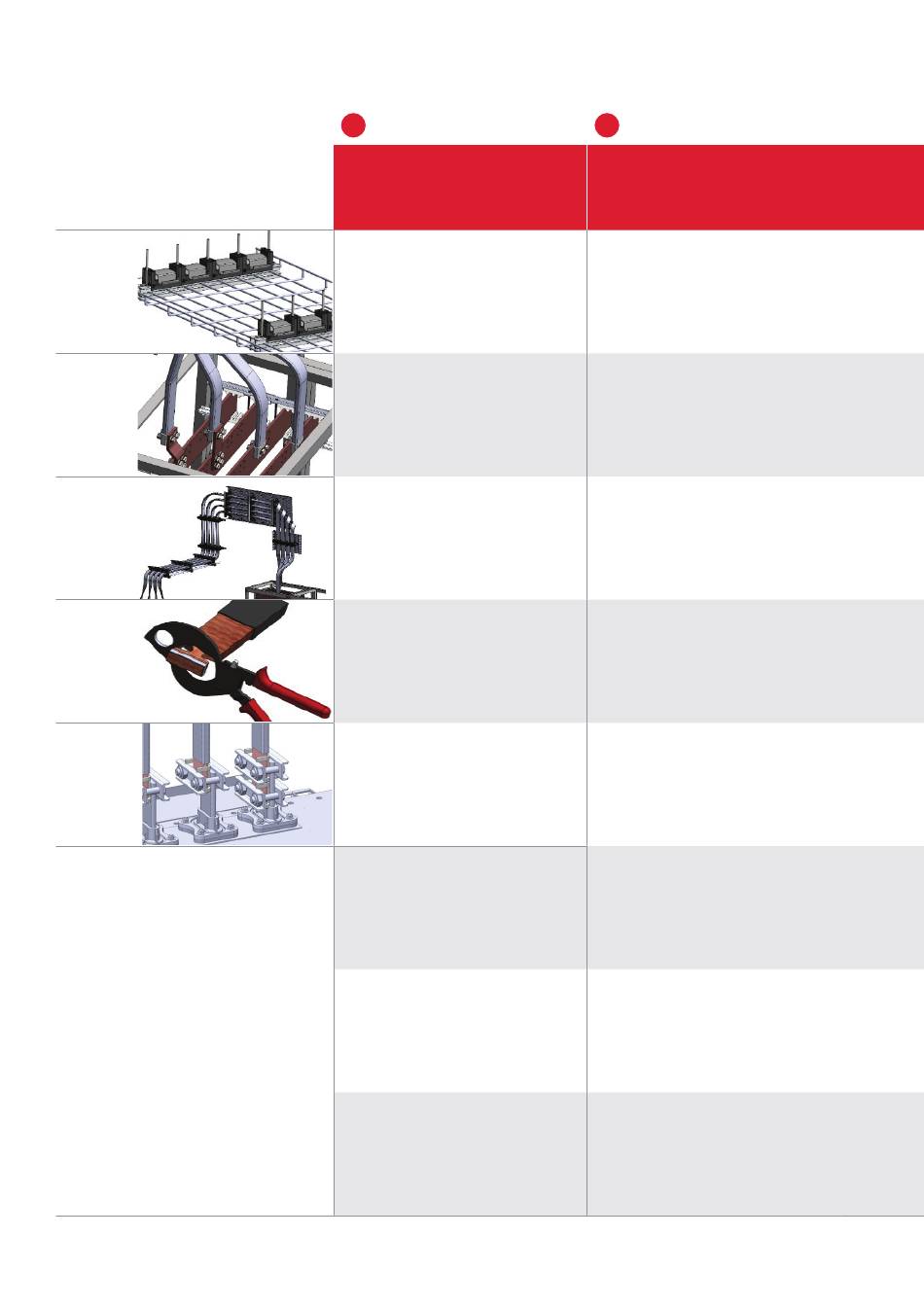

Easy and quick installation
sequence overview
Fix half supports directly on the
wall, ceiling or on cable tray
Connect the ready-to-use FleXbus
conductor with pre-punched holes
onside switchboard
Install conductors into the
supports and mount the top part
of the supports
Strip FleXbus conductor and cut
FleXbus conductor excess length
Connect FleXbus conductor with
HCBC clamp and plate
Optional IP2x Boots
Optional IP55 Conductor Entry
Optional Fire Barrier
FRANÇAIS
FR
Aperçu de la séquence
d'installation simple
et rapide
Fixer les supports au mur ou au
plafond ou sur chemin de câbles
Connecter la plage prêt à l'emploi
du conducteur FleXbus au TGBT
Installer les conducteurs dans
la partie inférieur du support
et monter la partie supérieur
du support
Dénuder le conducteur FleXbus
et couper la sur-longueur avec un
coupe câbles
Raccorder le conducteur FleXbus
avec les Serre-Barres et plaques de
maintien HCBC
Cache de protection IP2x optionnel
Passe conducteur IP55 optionnel
Système coupe-feu optionnel
