SPECIFICATIONS
Size: 40cm x 45cm x 135cm
•
• Net Weight: 5.38kg
• Voltage: 220-240V~
• Frequency: 50/60Hz
Power: 28W
•
• Noise Level: 65dB

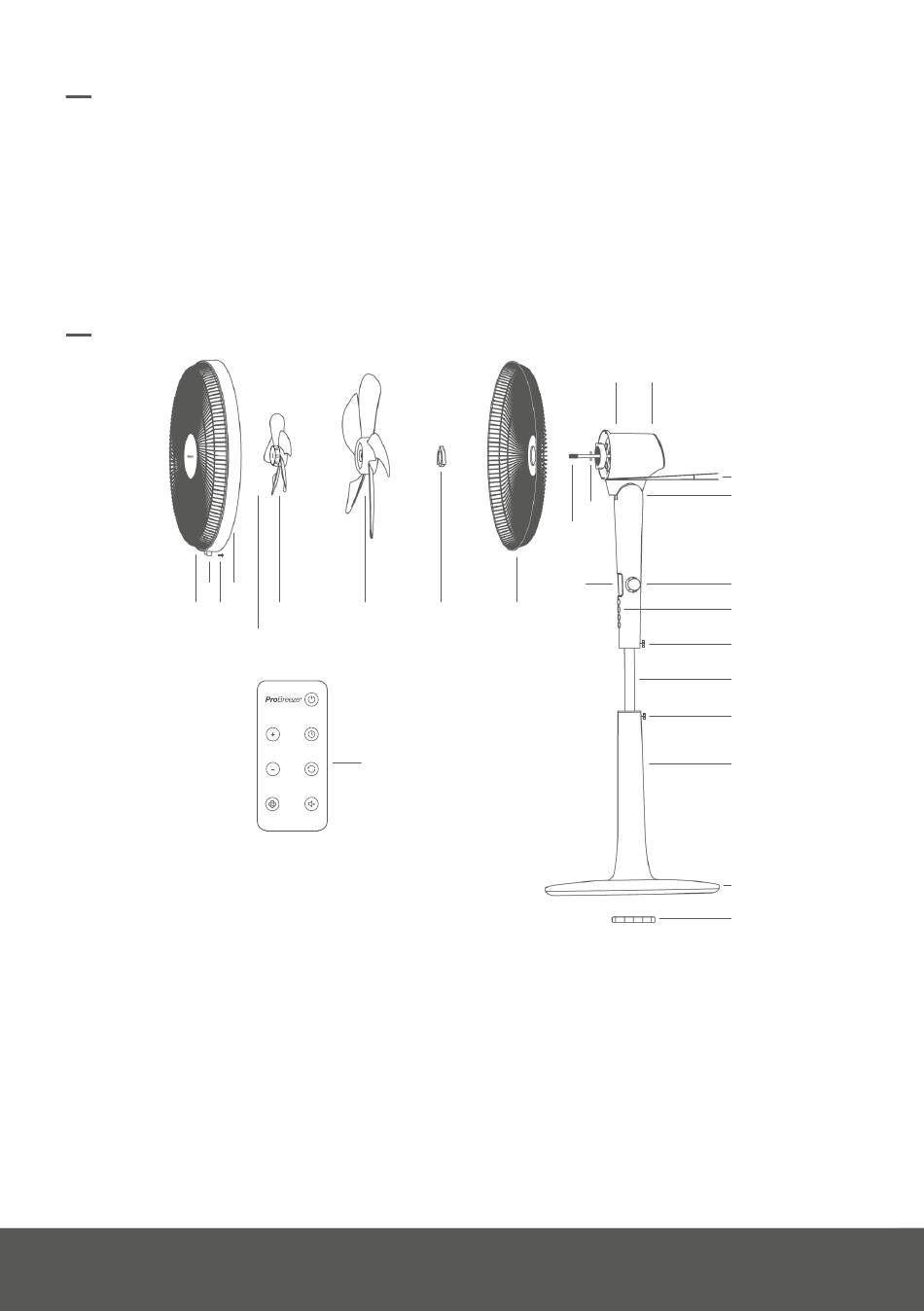

PARTS
4 2
1 3
1. Front grille
2. Guard ring
3. Safety screw
4. Locking clip
5. Secondary fan blades
6. Primary fan blades
7. Clamping nut
8. Rear grille
9. Motor shaft
04 | English
5 6 7
24
10. Motor shaft pins
11. Front motor housing
12. Rear motor housing
13. Horizontal oscillation
mechanism
14. Vertical tilt mechanism
15. Digital display
16. Fan speed control dial
17. Control panel
11 12
10
9
15
8
18. Fan body securing screw
19. Inner pole
20. Height adjustment screw
21. Outer pole
22. Base plate
23. Base screw
24. Remote control
14
13
16
17
18
19
20
21
22
23
