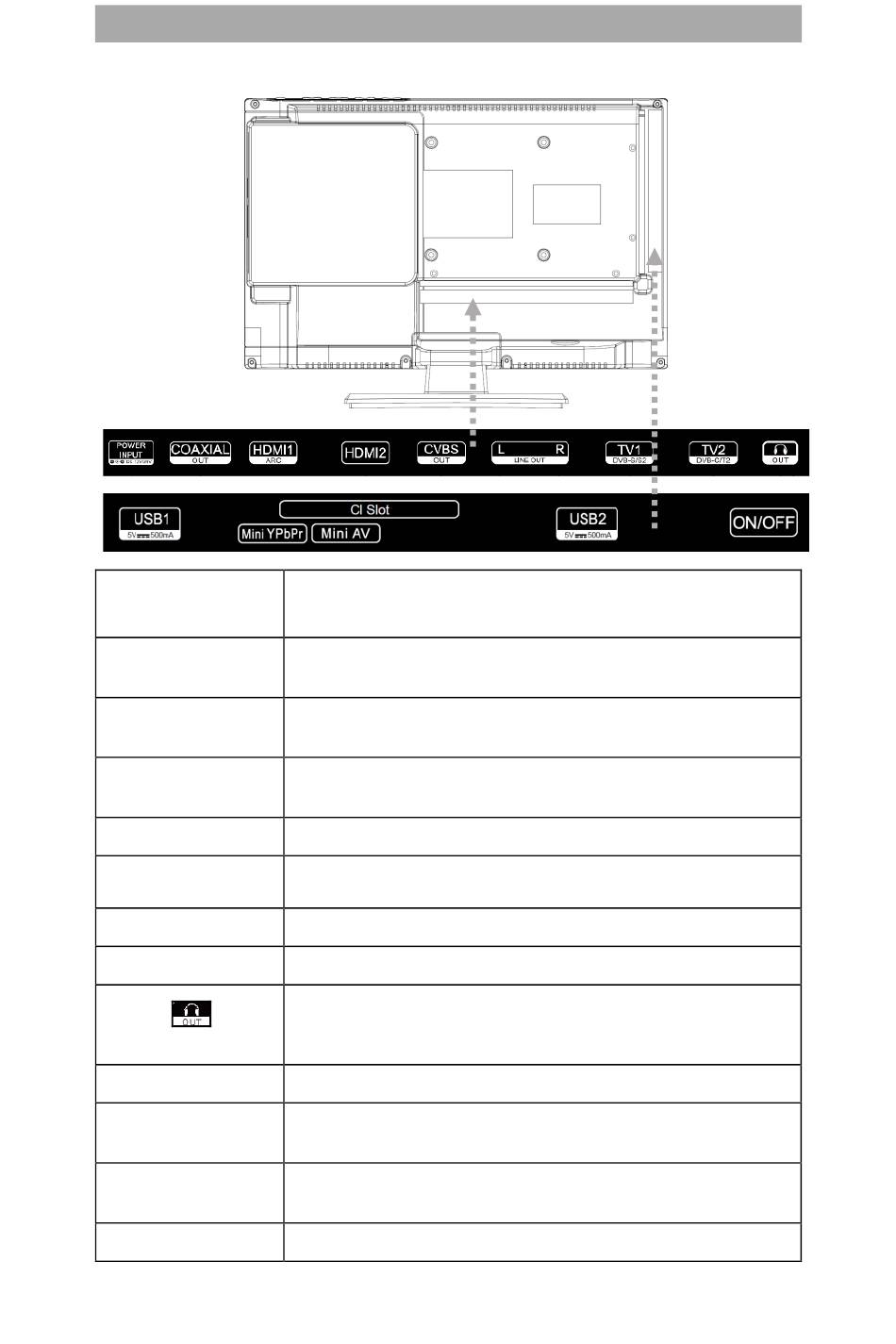

POWER INPUT
(DC 12V / 24V)
COAXIAL OUT
HDMI 1 (ARC)
HDMI 2
CVBS OUT
L / R LINE OUT
TV1 (DVB-S/S2)
TV2 (DVB-C/T2HD)
Headphone jack
USB 1 / 2 (5V 500mA)
MINI AV / YPbPr
CI+Slot
ON / OFF
Mains connection for the power supply unit or the 12V car adapter.
Digital audio output for external audio devices (e.g. amplifiers or
soundbars).
Connection for an external HDMI device.
e.g. Blu Ray player / soundbar.
Connection for an external HDMI device.
e.g. Blu Ray player.
Mirrors only the TV picture (no sound) from the AV input.
Connector for an external audio device which is connected via a
cinch cable
Connection of the satellite antenna.
Connection of the DVB-T antenna or cable system.
3.5mm headphone jack. When used, the internal speakers are
muted.
Connection for USB sticks and hard drives (max. 1TB).
Connection of external AV devices via adapter (not included)
e.g. video recorder
Slot for CI+ modules to decrypt encrypted TV programs. CI mode is
not included.
Toggle switch for switching the device on / off.
