NITECORE Chameleon CR7 Benutzerhandbuch

Features
• Designed with the combination of the red and white beams
• The white beam utilizes 4 x CREE XP-G3 S3 LEDs for a max output of 2,500 lumens
• The red beam utilizes 4 x CREE XPE LEDs to provide a max output of 370 lumens
• High efficiency constant circuit provides a stable output up to 130 hours
• Dual tail switches specially designed for tactical applications control 5 brightness levels of the white beam, 3 levels of the red beam
and STROBE Mode
• STROBE READY Technology to enable a quick access to STROBE Mode (Patent No.: ZL201320545349.4)
TM
• STROBE Mode uses randomly changing frequencies for stronger dizzying effects
• Tactical Mode and Daily Mode available for the white beam
• The power indicator on the tail cap indicates the remaining battery power
• The power indicator can also display the battery voltage (±0.1V)
• Rigid double layer tube design
• Incorporated Advanced Temperature Regulation (ATR) module (Patent No. ZL201510534543.6)
• Electronic reverse polarity protection
• Optical lenses with double-sided scratch resistant coating
• Constructed from aero grade aluminum alloy
• HA III military grade hard-anodized finish
• Rating in accordance with IP68 (2 meters submersible)
• Impact resistant to 1 meter
Specifications
Length: 148.2mm (5.83")
Head Diameter: 40mm (1.57")
Tail Diameter: 26mm(1.02")
Weight: 158g (5.57oz)
Accessories
Holster, Clip, Lanyard, Spare O-ring
Battery Options
NITECORE NL1835HP (3500mAh)
IMR 18650 High-Drain Rechargeable Li-ion Battery
18650 Rechargeable Li-ion Battery (Output over 8A)
Primary Lithium Battery
Rechargeable Li-ion Battery
18650 Rechargeable Li-ion Battery (Output below 8A)
Technical Data
White Beam
FL1
STANDARD
TURBO HIGH MID LOW
2,500 1,100 320
Lumens Lumens Lumens Lumens
*30min 1h 45min 4h 15min
279m 190m 102m 54m
19,500cd 9,000cd 2,600cd 740cd
IP68, 2m (Waterproof and Submersible)
Note: The stated data is measured in accordance with the international flashlight testing standards ANSI/NEMA FL1, using 1 x
18650 Li-ion battery (3,500mAh) under laboratory conditions. The data may vary in real world use due to different battery usage or
environmental conditions.
* The runtime for TURBO mode is tested without the temperature regulation.
* TURBO Availability: The TURBO level is only accessible when using an 18650 rechargeable Li-ion battery with an output over 8A or
an IMR 18650 high-drain rechargeable Li-ion battery. It is inaccessible when using CR123/RCR123 batteries.

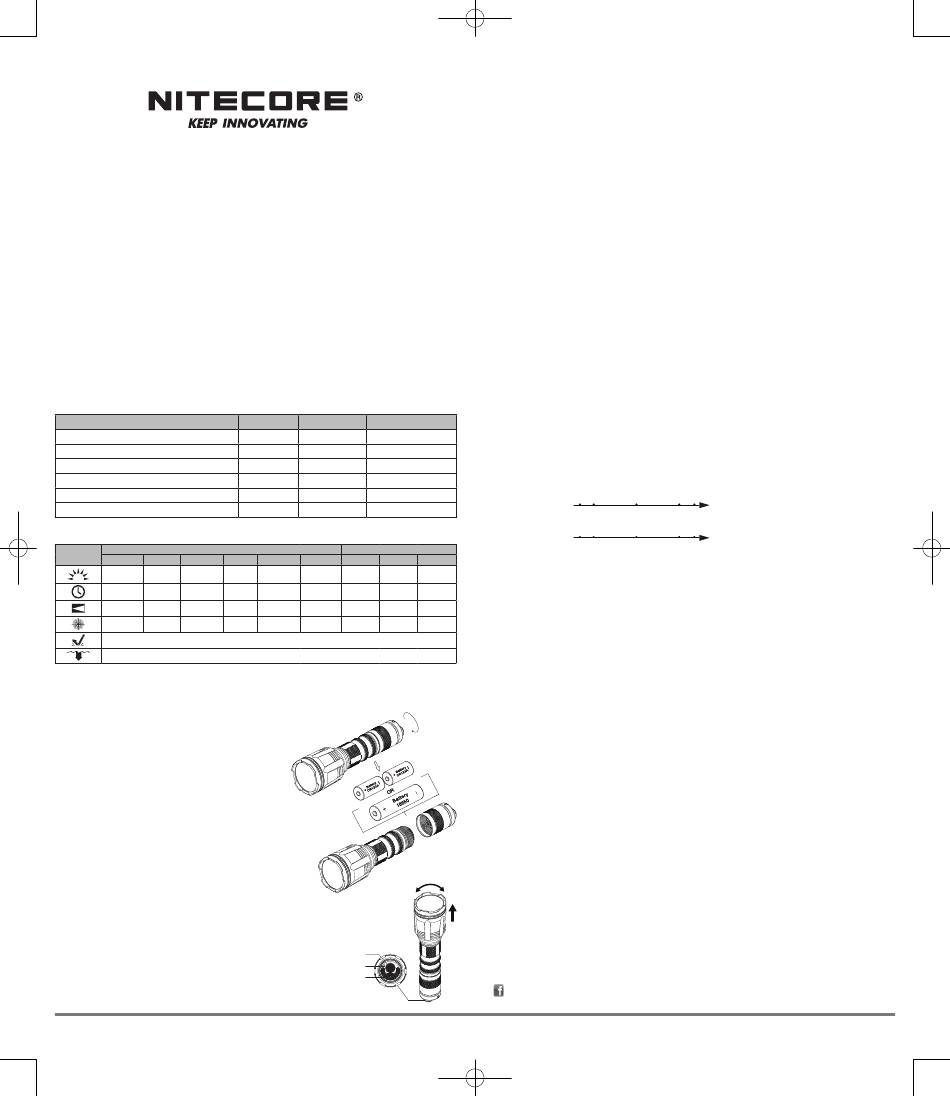

Battery Installation / Removal
As illustrated, after unscrewing the battery cap, insert / remove the
battery(s) and screw to tighten the battery cap.
Note:After the battery insertion, the power indicator beside the tail
switches will flash to indicate the battery voltage. Please refer to the "Power
Indication" section of this manual for more details.
Warnings:
1. Ensure the battery(s) is/are inserted with the positive end towards
the head. The product will not work if the battery(s) is/are incorrectly
inserted.
2. CAUTION! Possible dangerous radiation! Don't look into the light! May be
dangerous for your eyes.
3. When the power level is low, please stop using the product and replace or
recharge the battery to prevent damage to the battery.
4. When the product is kept in a backpack or left unused for prolonged time,
please remove all batteries to prevent accidental activation or battery
leakage.
5. DO NOT submerge the light into any liquid when it is hot. Doing so may
cause irreparable damage to the light due to the difference of air pressure
inside and outside of the tube.
Beam Switching
The CR7 has an easy switching mechanism between the red and white beams. Push
the head outwards and rotate the head clockwise or counterclockwise as illustrated to
switch between the red and white beams.
Tactical Momentary Illumination
Half press and hold the Power Button to turn on the light momentarily. Release to turn
it off.
Note: The CR7 has mode memory. When reactivated, the flashlight will automatically
access the previous memorized level or mode.
Type Nominal Voltage Compatibility
18650 3.6V Y (Recommended)
IMR 18650 3.6V/3.7V Y (Recommended)
18650 3.6V/3.7V Y (Compatible)
CR123 3V Y (Compatible)
RCR123 3.6V/3.7V Y (Compatible)
18650 3.6V/3.7V N (Incompatible)
Red Beam
ULTRALOW STROBE HIGH MID
90 8 2,500 370 200
Lumens Lumens Lumens Lumens
20h 130h ─ ─ ─
14m ─ 190m 118m
51cd ─ 9,150cd 3,530cd
1m (Impact Resistance)
Power Button
Power Indicator
Mode Button
Thanks for purchasing NITECORE!
Operating Instructions of the Red Beam
The following instructions are only applicable when the red beam is selected.
On / Off
On: When the red beam is off, press the Power Button until a click sound is heard to access the memorized level of the red beam.
Off: When the red beam is on, press the Power Button until a click sound is heard to turn it off.
Output Levels
When the red beam is on, short press the Mode Button to cycle through the following red output levels: LOW – MID – HIGH.
Momentary Access to HIGH
When the red beam is on, press and hold the Mode Button to access the HIGH level of the red beam. Release to return to the previous
memorized red output level.
Operating Instructions of the White Beam
The following instructions are only applicable when the white beam is selected.
On / Off
On: When the white beam is off, press the Power Button until a click sound is heard to access the memorized level of the white beam.
Off: When the white beam is on, press the Power Button until a click sound is heard to turn it off.
User Mode Selection of the White Beam
The CR7 provides 2 user modes of the white beam for different users and situations.
Daily Mode: When the light is on, press and hold the Mode Button to momentarily access the TURBO level of the white beam. Release
to return to the previous memorized brightness level of the white beam. (Default Setting)
Tactical Mode: When the light is on, long press the Mode Button to directly access STROBE Mode. Short press the Mode Button again
to return to the previous memorized brightness level of the white beam.
To select a desired user mode:
1. Ensure the light is turned off.
2. Loosen the tail cap.
3. Keep holding the Mode Button on the tail cap while simultaneously tightening the tail cap.
4. Once the tail cap has been tightened, the LEDs will indicate a user mode selected by flashing once for Daily Mode and flashing twice
for Tactical Mode.
Brightness Levels
When the white beam is on, short press the Mode Button to cycle through the following brightness levels of the white beam:
ULTRALOW – LOW – MID – HIGH – TURBO.
STROBE READY
TM
When the white beam is off in either user mode, press and hold the Mode Button to momentarily access STROBE Mode. Release to turn
it off.
Power Indication
When the battery is inserted, the power indicator will flash to show the battery voltage (±0.1V). For example, when the battery voltage
is at 4.2V, the power indicator will flash 4 times followed by a 1.5-second pause and 2 more flashes. Different voltages represent the
corresponding remaining battery power levels:
Low power
1×18650 battery
3.5V
Low power
2×CR123 batteries
4.8V
Note: When using two CR123/RCR123 in series, the indicator will show the average voltage between the two batteries.
LOW
ATR (Advanced Temperature Regulation)
85
Lumens
The integrated ATR technology regulates the output of the CR7 according to the working condition and ambient environment to
maintain the optimal performance.
─
Changing Batteries
78m
The batteries should be replaced when the output appears to be dim or the flashlight becomes unresponsive due to low power.
1,520cd
Maintenance
Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.
Warranty Service
All NITECORE products are warranted for quality. Any DOA / defective product can be exchanged for a replacement through a local
®
distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE
charge within 60 months from the date of purchase. Beyond 60 months, a limited warranty applies, covering the cost of labor and
maintenance, but not the cost of accessories or replacement parts.
The warranty will be nullified if:
1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties;
2. the product(s) is/are damaged due to improper use; (e.g. reversed polarity installation)
3. the product(s) is/are damaged due to battery leakage.
For the latest information on NITECORE
service@nitecore.com
※ All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occur
between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd. reserves the rights to interpret
and amend the content of this document at any time without prior notice.
SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
E-mail: info@nitecore.com
Address： 24/F, TCL Plaza, No. 18 Haizhou Road, Haizhu District, Guangzhou, 510335, Guangdong, China
Please find us on facebook : NITECORE Flashlight
CR7
User Manual
Full power
3.7V 3.9V 4.2V
Full power
5.6V 6.0V 6.4V
products can be repaired free of
®
products and services, please contact a local NITECORE distributor or send an email to
® ®
FAX: +86-20-83882723
Web: www.nitecore.com
