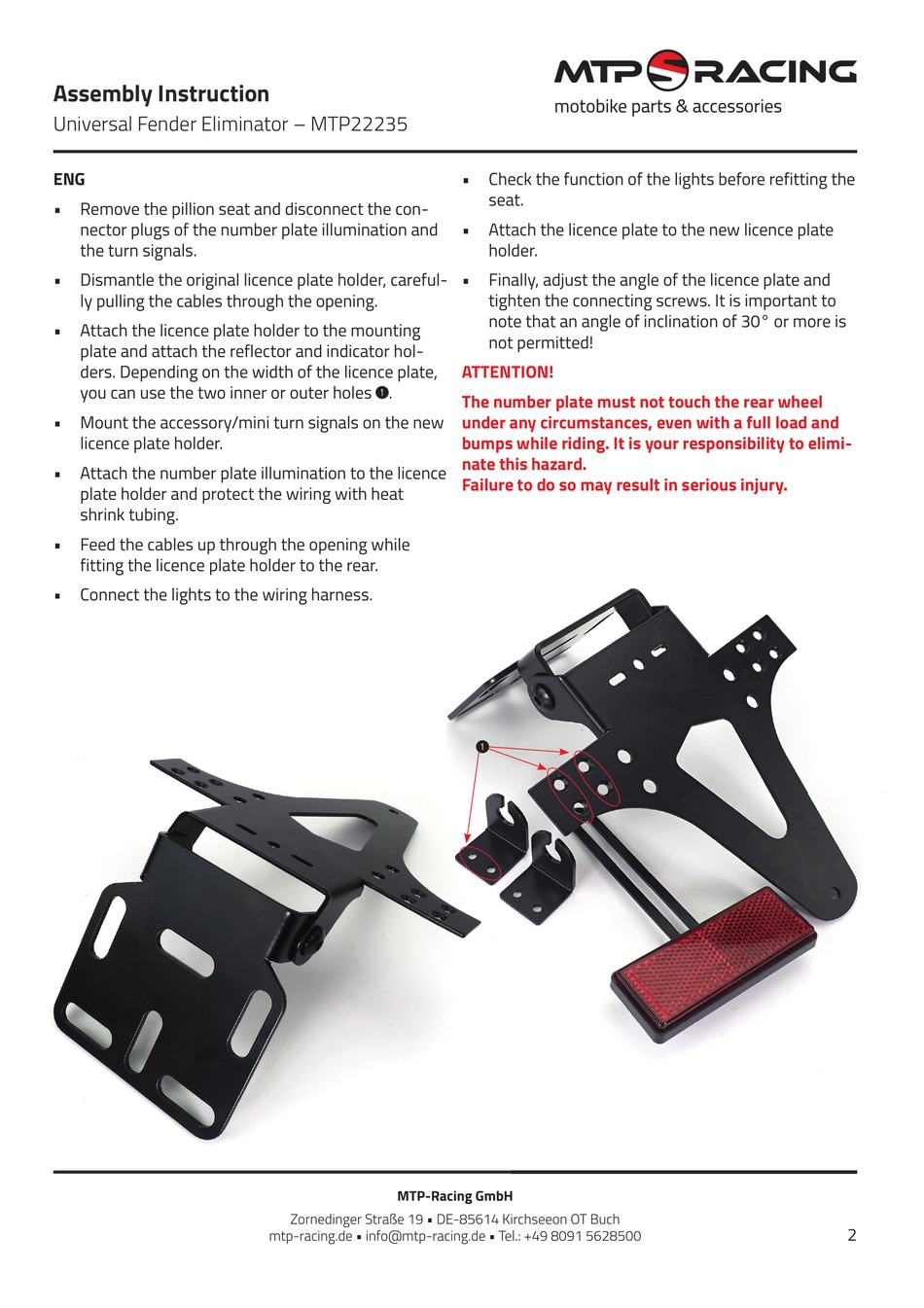

MTP-Racing MTP22235 Montageanleitung Seite 2

Assembly Instruction
Universal Fender Eliminator – MTP22235
ENG
• Remove the pillion seat and disconnect the con-
nector plugs of the number plate illumination and
the turn signals.
• Dismantle the original licence plate holder, careful-
ly pulling the cables through the opening.
• Attach the licence plate holder to the mounting
plate and attach the reflector and indicator hol-
ders. Depending on the width of the licence plate,
you can use the two inner or outer holes !.
• Mount the accessory/mini turn signals on the new
licence plate holder.
• Attach the number plate illumination to the licence
plate holder and protect the wiring with heat
shrink tubing.
• • Feed the cables up through the opening while Feed the cables up through the opening while
fitting the licence plate holder to the rear.
• Connect the lights to the wiring harness.
MTP-Racing GmbH MTP-Racing GmbH
Zornedinger Straße 19 • DE-85614 Kirchseeon OT Buch
mtp-racing.de • info@mtp-racing.de • Tel.: +49 8091 5628500
• Check the function of the lights before refitting the
seat.
• Attach the licence plate to the new licence plate
holder.
• Finally, adjust the angle of the licence plate and
tighten the connecting screws. It is important to
note that an angle of inclination of 30° or more is
not permitted!
ATTENTION!
The number plate must not touch the rear wheel
under any circumstances, even with a full load and
bumps while riding. It is your responsibility to elimi-
nate this hazard.
Failure to do so may result in serious injury.
!
